Sale!

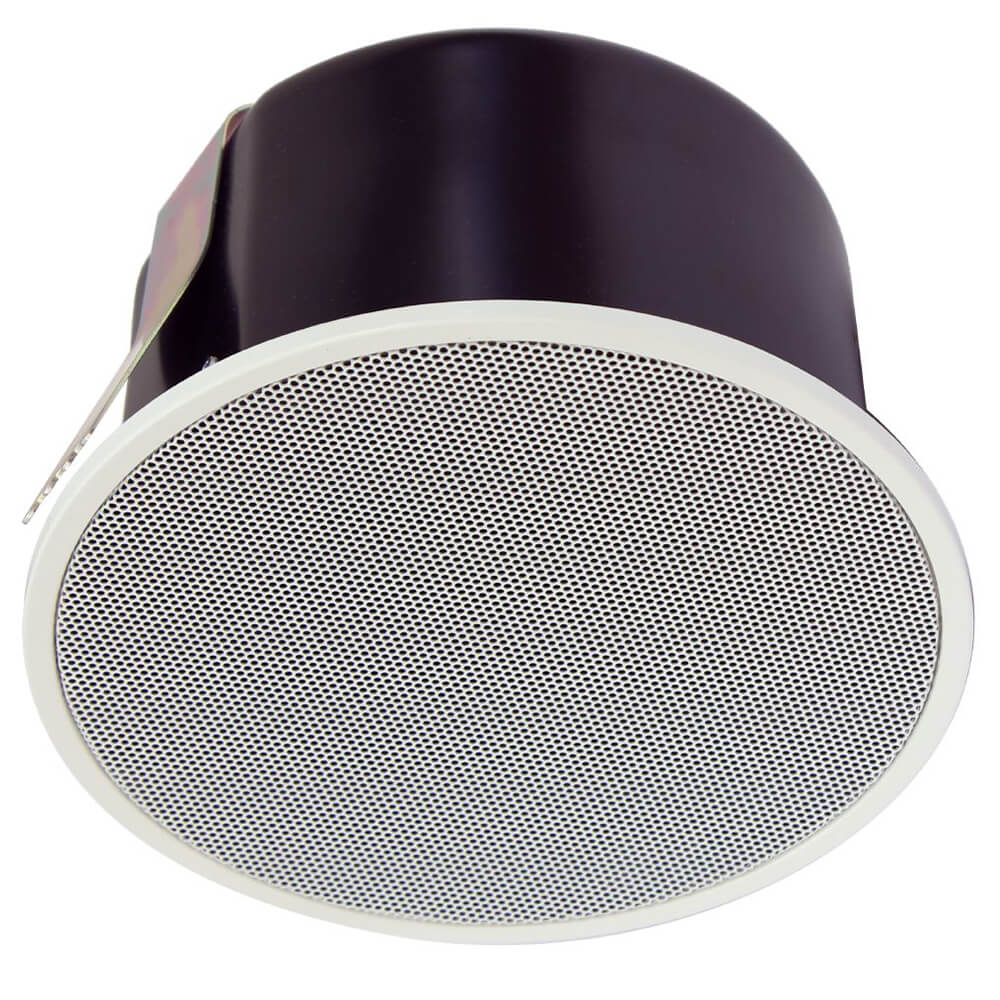

TOA PC1860BSC

6 Watt 5″ Single Cone Speaker with Metal Grille, Spring Catch Mounting, fire rated back can and DC blocking capacitor. EN54, 170Hz-20kHz, 94dB. 156mm cutout

$99.00 $89.00

In Stock



SKU: PC1860BSC Category: Tag:

Description

TOA PC1860BSC Ceiling Speaker 6 Watt 5″ Single Cone Speaker with Metal Grille, Spring Catch Mounting, fire rated back can and DC blocking capacitor. EN54, 170Hz-20kHz, 94dB. 156mm cutout.

The TOA PC1860BSC Ceiling Speaker is equipped with a fire dome to protect it from fire and to prevent fire from spreading through the ceiling. Thus, the speaker is designed according to British Standard BS 5839-8: 2008 and EN54-24.

The ceiling speakers of the PC-series are suitable for announcements and BGM system use in high quality. The speaker’s design harmonizes with modern architecture and decor.

  • Flat front panel
  • Quick and easy installation
  • Fire dome made of steel
  • Ceramic screw terminal block and thermal fuse
  • 6 W rated input
  • 12 cm speaker

Features

  • Flat front panel
  • Quick and easy installation
  • Fire dome made of steel
  • Ceramic screw terminal block and thermal fuse
  • 6 W rated input
  • 12 cm speaker

Specification

PC-1860BS PC-1860BS-C PC-1865BS
Frequency response 170 Hz – 20 kHz 170 Hz – 20 kHz 200 Hz – 20 kHz
Connection 2-Steatite connector (3 pole) 2-Steatite connector (3 pole) 2-Steatite connector (2 pole); 1 Screw connection for Earth
Speaker component 12 cm cone-type 12 cm cone-type 12 cm cone-type
Tappings 6/3/1,5/0,8 W (100V)

3/1,5/0,8/0,4 W (70V)

6/3/1,5/0,8 W (100V)

3/1,5/0,8/0,4 W (70V)

6/3/1,5/0,8 W (100V)

3/1,5/0,8/0,4 W (70V)

Finish traffic white (RAL 9016 or equivalent) traffic white (RAL 9016 or equivalent) traffic white (RAL 9016 or equivalent)
Dimensions (W x H x D)
Weight 1.1 kg 1.1 kg 0.86 kg

Downloads

TOA PCspeaker_EN_022020_opt
