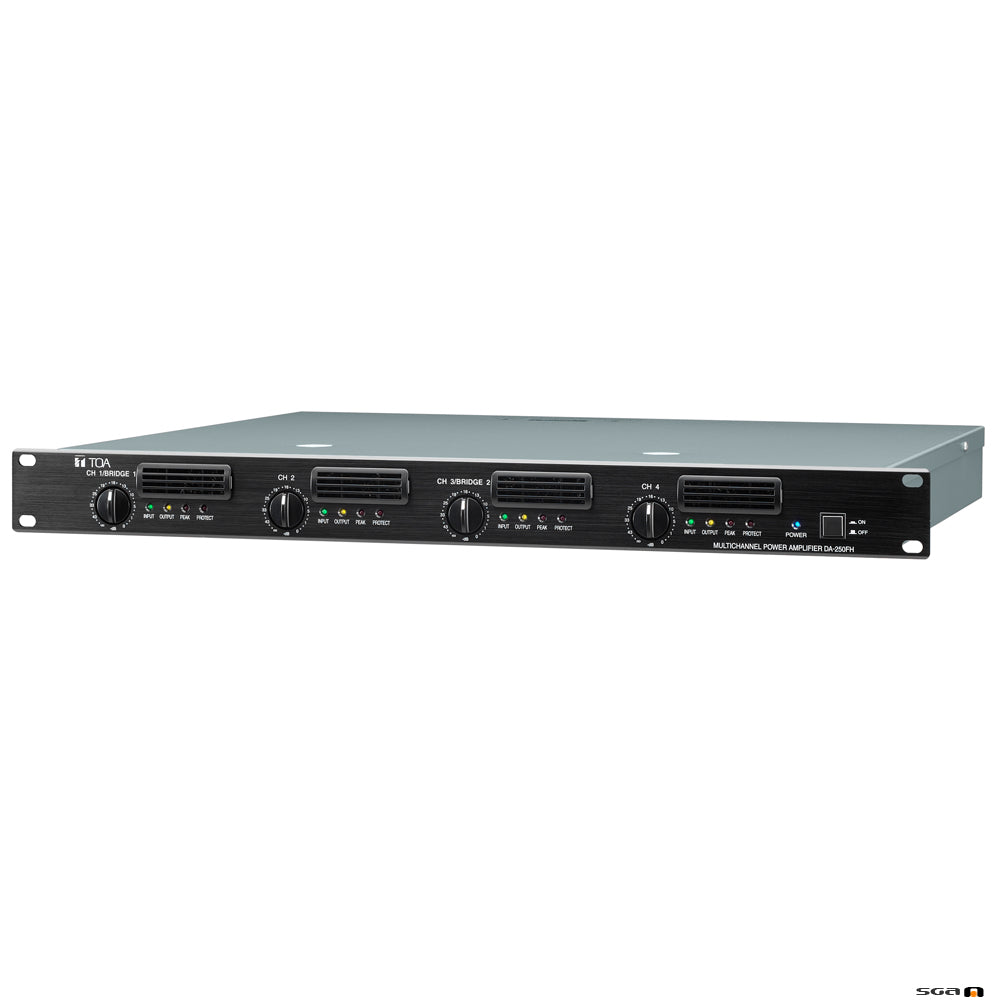

TOA DA250FH

TOA DA250FH Class D Power Amplifier 4 x 250W 100V line 1RU High and 6.8kg weight

$3,149.10

In Stock
SKU: DA250FH Categories: , Tag:

Description

TOA DA250FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 250 W x 4 channels (19.6 Ohm output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-251H Output Transformer (optional). TOA DA250FH can be mounted in an EIA Standard equipment rack (1 unit size).

Extremely high amplification efficiency of 80-90%, resulting in reduction in power consumption by more than 60% compared with Class-AB amplifiers.

The DA-250 Series is 1-unit size and the DA-500 Series is 2-unit size. They can be efficiently mounted on a rack, so they require only a small installation space. Because the amplifiers do not generate much heat, 5 units can be stacked together in a rack.

Stands up to extended hours of operation. The DA amplifier has undergone a large number of rigorous tests to prove its durability. In addition, TOA has been conducting a “non-stop driving test” of the DA Series.

The DA amplifier has a comprehensive protection circuitry for protection against excessive current flow due to overload, short circuit, unusual DC voltage output, and heat sink temperature rise.

Each of the channels has its own power supply. If the power supply of Channel 1 should fail, this won’t affect the operation of Channels 2-4 (Channel 2 in case of DA-250D/DA-250DH). It is also possible to use one of the channels as a spare amplifier.

Features

  • Class D amplifier
  • Four channels
  • 4x 250W into 100V line
  • 1RU

Specifications

Power Source 220 – 240 V AC
Amplification System Class D
Power Consumption 120 W (based on EN standards)
580 W (rated output 100 V line
Input 2 circuits
10 kΩ
XLR-3-31 type connector
CH 1 mode ON/OFF switch (ON: PARALLEL
Rated Output 2 channels: 250 W × 2 (100 V line)
M4 screw terminal
Frequency Response 50 Hz – 20 kHz (-3 dB
Total Harmonic Distortion 0.1 % (1 kHz)
0.3 % (100 Hz – 20 kHz)
Protection Circuit Protection against excessive current flow due to overload
short circuit
temperature rise at power amp. heat sink (100 °C (212 °F) or more)
temperature rise inside the unit (80 °C (176 °F) or more)
S/N Ratio 100 dB (A-weighted)
Crosstalk 70 dB (A-weighted)
LED Indicator Power (blue) × 1
Protect (red) × 2
Cooling Forced air cooling
Operating Temperature -10 ℃ to +40 ℃ (14 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Panel: Aluminum
Case: Plated steel sheet
Dimensions 482 (W) × 44 (H) × 401.8 (D) mm (18.98 × 1.73″ × 15.82)
Weight 5.3 kg (11.68 lb)
Accessory Power cord (2 m (6.56 ft)) …1
Tamper-proof cap …2
Option Matching transformer: MT-251H

Downloads

DA-250-25FH-250D-250DH-550F-500FH_Brochure
