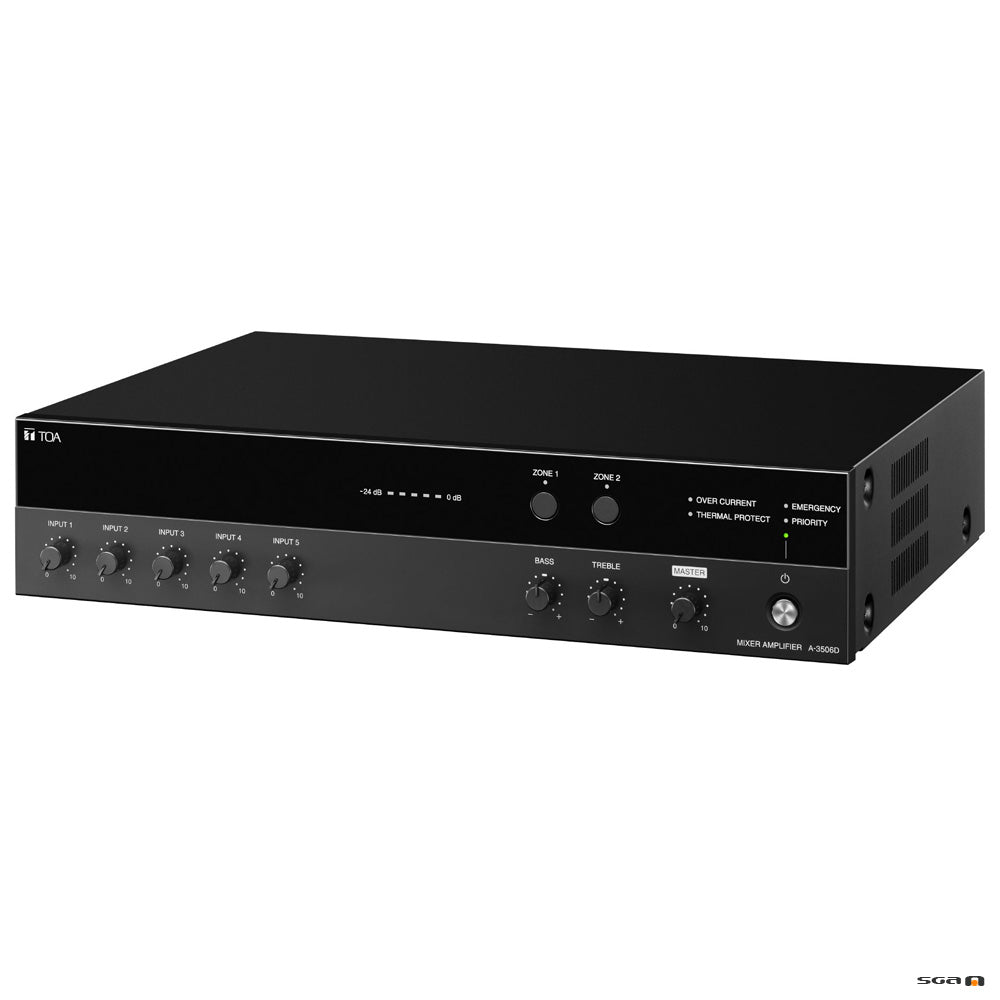

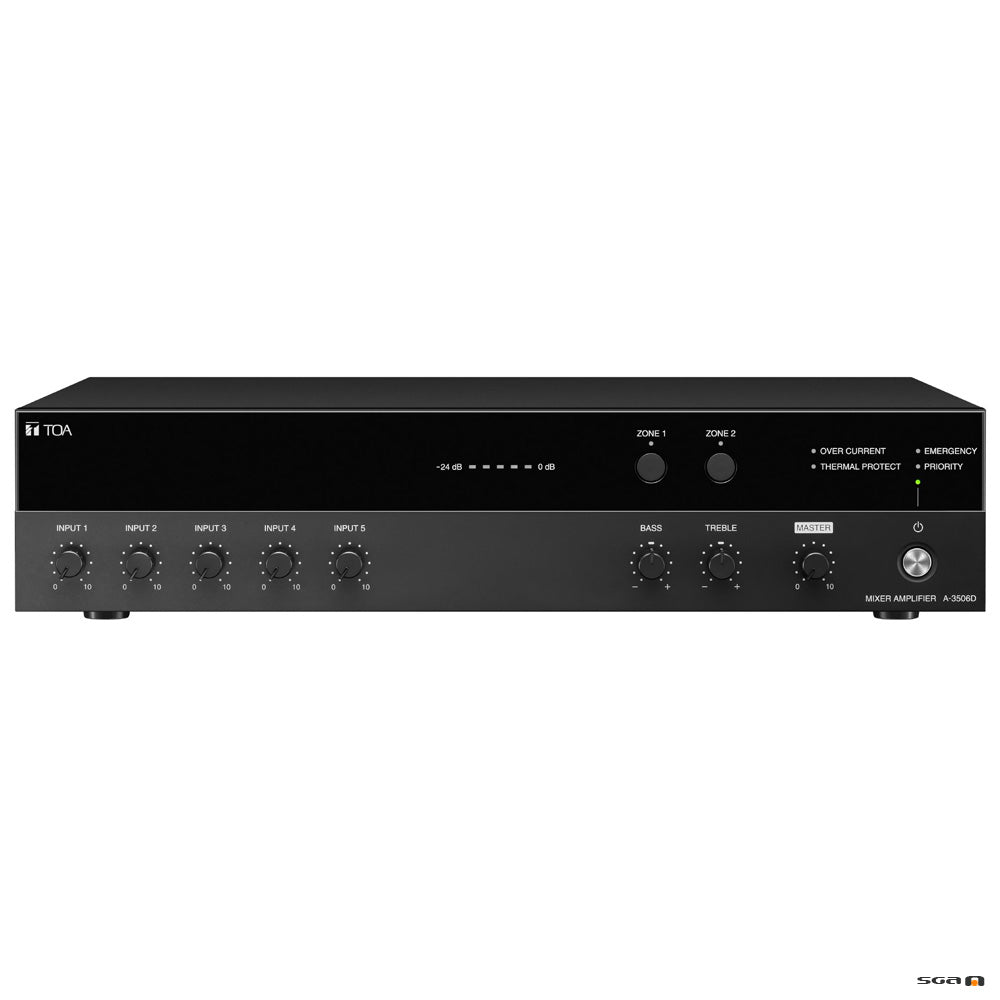

TOA A3506D

TOA A3506D Class D Mixer Amplifier, 60W with 2 zone, 5 inputs, selectable phantom power, 100V or 4 to 16? outputs.

In Stock

Description

The TOA A3506D (60W) is part of the A3500D series. The A-3506D is a class D mixer amplifier with 60W output. It comes with emergency and priority paging, is equipped with 3 MIC/LINE selectable inputs, 1 MIC input, 1 AUX input can be also used for music source. It features VOX muting on Input 1 and Input 2, and Priority muting on Input 1. With 2-channel speaker zone selectors it is ideal for paging announcements and background music applications in retail shops, schools, offices and production facilities.

Use TOA MB25B Rack Mount Ears for mounting in a equipment rack.

Features

● Power output range from 60 to 480W.
● 5 inputs; 2 mic/line (phoenix or jack), 2 mic (6.3mm jack only), 1 auxiliary (RCA)
● Selectable Phantom power on input 1 and 2
● VOX muting on Input 1 and Input 2
● Priority muting on Input 1
● Rack mountable with MB25B Brackets, 2RU
● Two speaker zones (same source / volume)

Specifications

Power source	100 – 240 V AC, 50 / 60 Hz
Rated output	60 W
Frequency response	50 Hz – 20 kHz (±3 dB (1/8 rated output)
Distortion	≤ 1 % (at 1 kHz, rated power)
Power consumption	96 W (at rated output), 40 W (EN62368-1)
Speaker output	direct, zones 1 & 2
Amplifier	Class D
S/N ratio	88 dB (A-weighted)
Connectable microphones	3

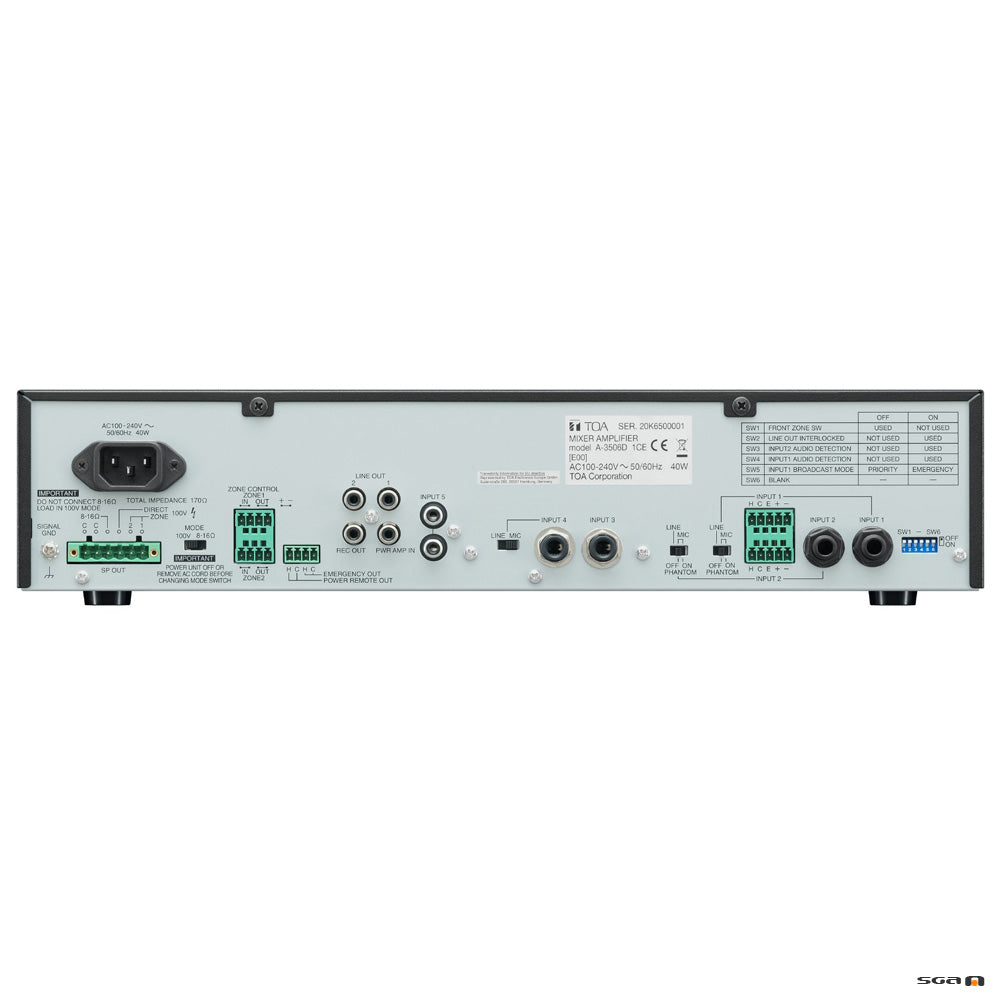

Inputs	INPUT 1, 2: –60 dB* (MIC)/–20 dB* (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 5 pins)/ø6.3 mm phone jack (2P) INPUT 3: –60 dB, 600 Ω, electronically-balanced, ø6.3 mm phone jack INPUT 4: –60 dB (MIC)/–20 dB* (LINE) selectable, 600 Ω, electronically-balanced, ø6.3 mm phone jack (2P) INPUT 5: –20 dB, 10 kΩ, unbalanced, RCA pin jack x 2 PWR AMP:IN: 0 dB, 600 Ω, unbalanced, RCA pin jack
Control input	2 channels, no-voltage make contact input, open voltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 5 pins); ZONE control: No-voltage make contact input, open voltage: 35 V DC or less, short-circuit Current: 10 mA or less, removable terminal block (3.81 mm, 4 pins)
Outputs	REC, LINE 1/1: 0 dBV, 600 ohms, unbalanced, RCA pin jack
	SPEAKER direct, zones 1 and 2: 8-16 ohms in total or 100 V
Control output	Power remote, emergency, zone control: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins)
Operating humidity	85%RH or less (no condensation)
Operating temperature	–10 to +40 °C
Finish	ABS resin, Steel plate, paint, black
Dimensions	420 x 96 x 313 mm (W x H x D)
Weight	4.9 kg
Accessory (included)	AC Power cord (UK)
