JTS SX7S

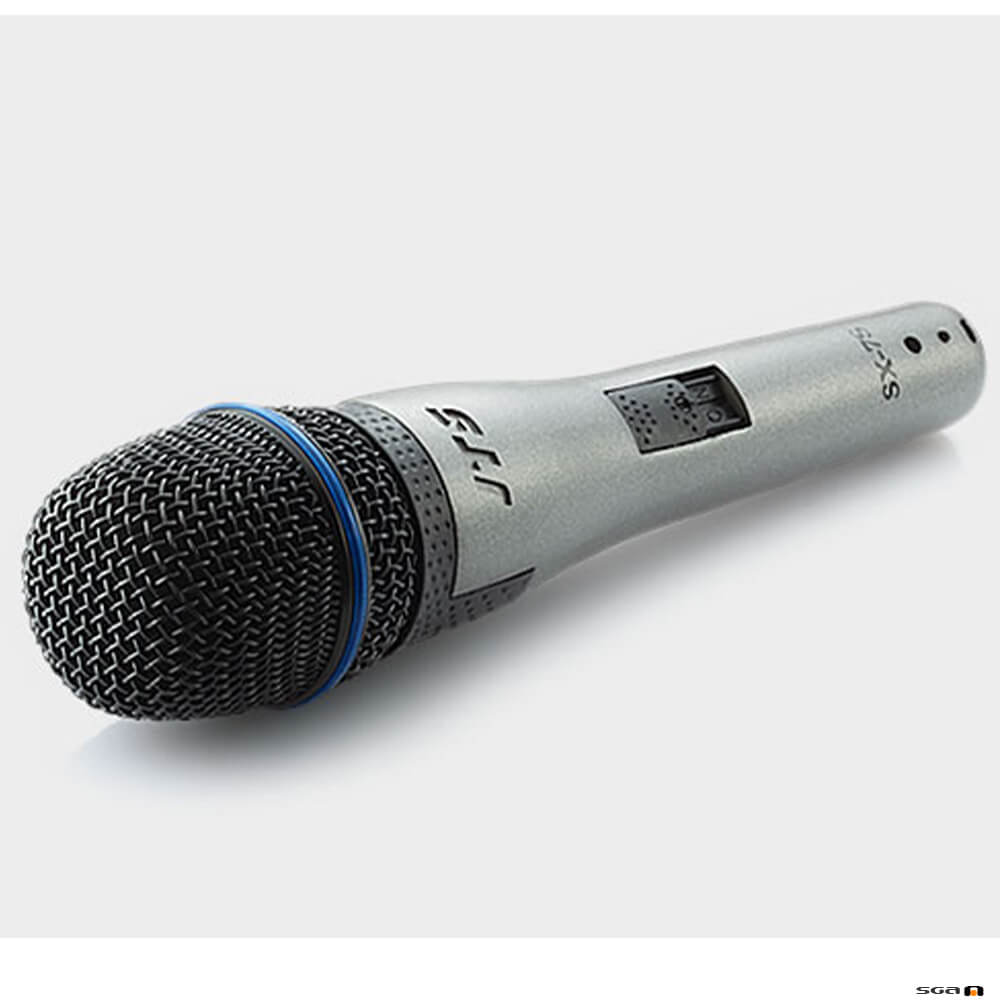

JTS SX7S Microphone with switch, for instrument or vocals.

$152.10

In Stock



SKU: JP-SX7S Category: Tag:

Description

JTS SX7S wired microphone with switch, for instrument or vocals with three-pin professional audio connector (male XLR type)

The SX7S is designed with the JTS SAM-8LN capsule. The capsule is machined and assembled on solid steel bar for maximum accuracy in acoustic characters. The precise engineering assures outstanding performance. The smooth frequency response across the full spectrum and accurate directional character provide maximum gain before feedback. The advanced mechanical design minimizes handling noise.

The SX7S is ideal for large venues.? The SX-7S is designed for optimal warmth and clarity. The outstanding pick-up pattern and sound quality make SX-7S ideal for vocal, drums, guitar amplifiers and other instruments.

Features

Specification

SX-7S
Type Moving Coil Dynamic
Frequency Response 50~16,500 Hz
Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -77dB*(0.14mV)*0dB=1V/μbar
Impedance 250Ω
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector
(male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, Matte-finished steel grille
SX-7S Equipped with Magnetic Reed Switch

Downloads

 JTS-JP-SX7S
