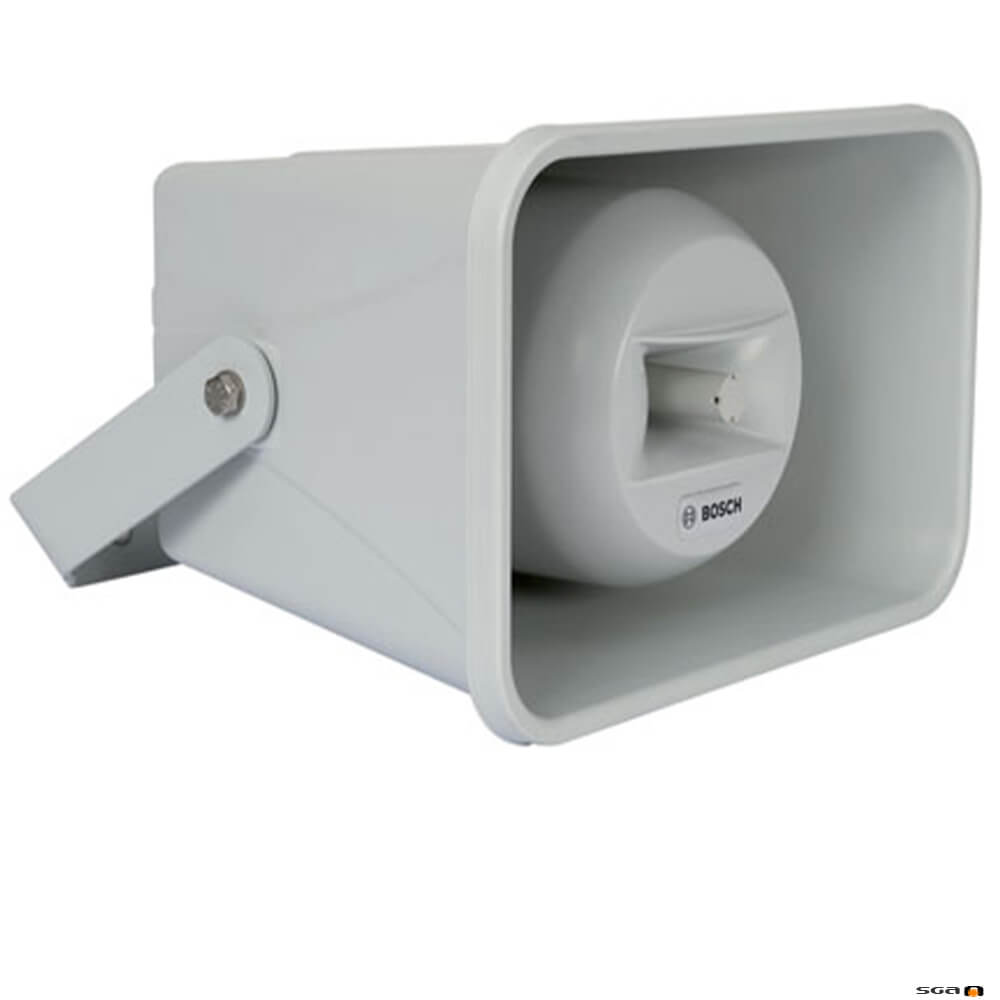

Bosch LH1-UC30E

Bosch Music Horn Loudspeaker for both indoor and outdoor applications.

Original price was: $576.40.Current price is: $538.00.

In Stock
SKU: LH1-UC30E Categories: , Tag:

Description

The Bosch LH1-UC30E Horn Loudspeaker features a two?way system, resulting in an extended frequency range and high sensitivity which makes it ideal for high quality speech and music reproduction.

The rectangular horn features a unique combination of a re?entrant horn with two transducers, one for low?and the other for high frequencies, resulting in breathtaking sound clarity. The horn is weather protected and can be used in areas with high humidity. It is therefore suitable for outdoor applications such as sport grounds, sports stadiums, leisure parks, exhibition areas and passenger terminals, as well as for indoor public address. The ABS horn loudspeaker and aluminum bracket are finished in light grey.

The Bosch LH1?UC30E Horn is designed for use in voice alarm systems and compliant with emergency standards.

Features

  • Excellent speech and music reproduction
  • Two‑way system
  • Attractive ABS housing
  • Provisions for internal mounting of the optional line / loudspeaker supervision board
  • EN 54‑24 certified

Specification

Rated power (PHC) 30 W
Power tapping 30 / 15 / 7.5 / 3.75 W
Sound pressure levelat rated power / 1 W (1 kHz, 1 m) 115 / 100 dB (SPL)
Sound pressure levelat rated power / 1 W (1 kHz, 4 m) 100 / 86 dB (SPL)
Effective frequency range(- 10 dB) 212 Hz to 20 kHz
   Horizontal 68° / 68°
   Vertical 100° / 120°
Rated input voltageRated impedance 70 V, 100 V
30 W 167 Ohm, 333 Ohm
15 W 333 Ohm, 667 Ohm
7.5 W 667 Ohm, 1334 Ohm
3.75 W 1334 Ohm, 2668 Ohm
Connector 6-pole screw terminal
Dimensions (H x W x D) 255 x 370 x 354 mm (10.04 x 14.56 x 13.93 in)
Weight 5.5 kg (12.45 lb)
Color Light grey (RAL 7035)
Material (horn / bracket) ABS / Aluminum
Cable diameter 6 mm to 12 mm (0.24 in to 0.47 in)
Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF)
Storage and transport temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
