FBT Shadow 108CT outdoor speaker 8"/1" 2-way 8 Ohm /100V IP55 weather rated

FBT Shadow 108CT

FBT 8″/1″ 2-way outdoor spkr. 8 Ohm/100V, 8″ coax custom woofer, 1″ HF driver,

$1,239.00

In Stock



Categories: , Tag:

Description

FBT SHADOW 108CT Speaker 450W 8″ coax woofer with with 2” coil and 1” HF driver with 1.4” coil on conical 90° horn. IP55 weather rated. Both 8 Ohm and 100 Volt line inputs. 100/50 100V tappings.

The shadow series is a complex range of very high performance full range and horn loaded loudspekers, designed to provide high quality music and voice reproduction in applications with extreme weather conditions. High quality voice and music performance normally associated with an indoor speaker, are now available for outdoor use.

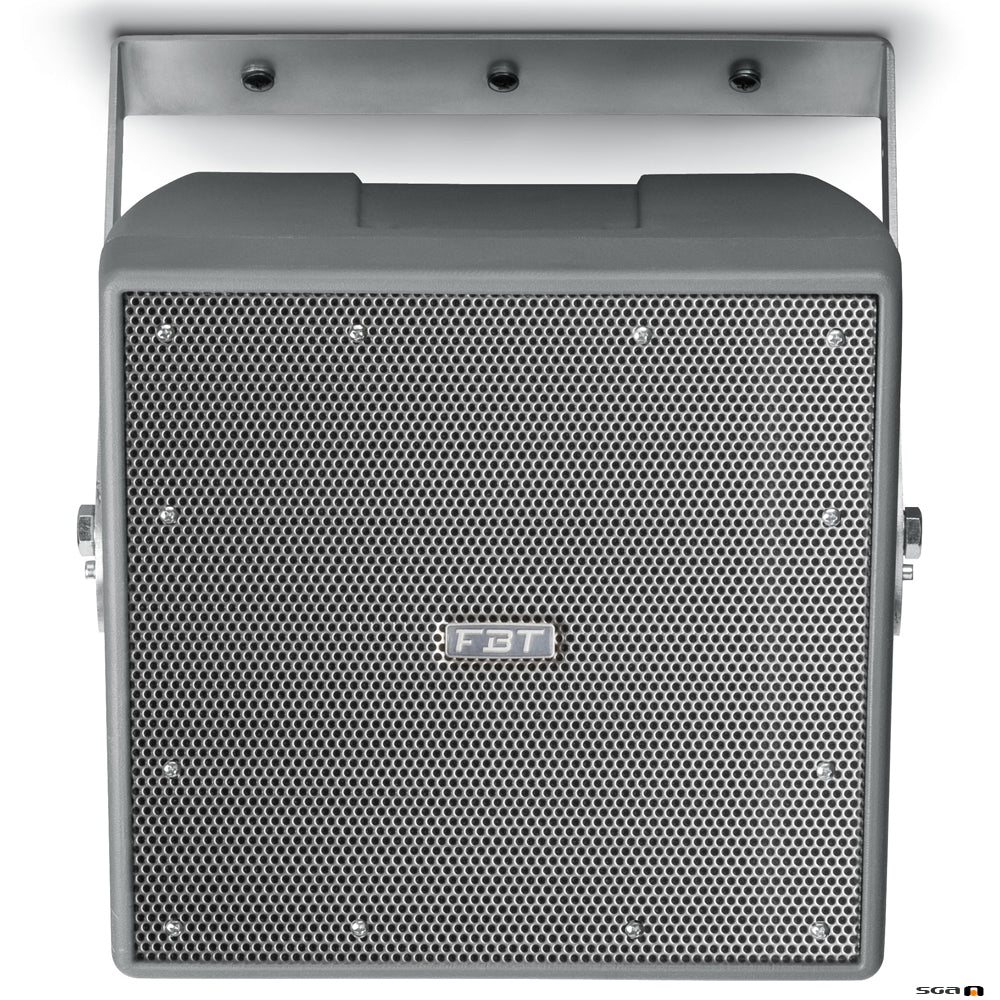

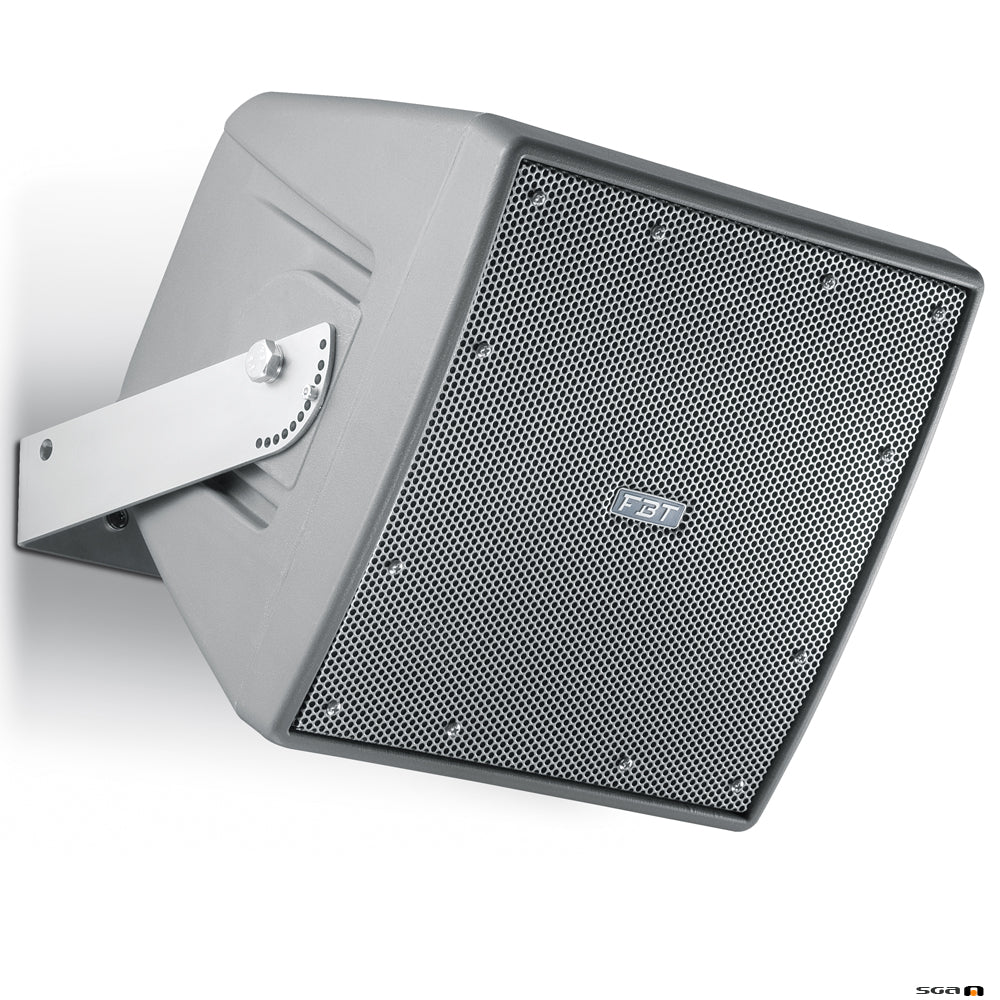

The cabinet is a single piece rotational moulded in polyethylene, fully UV protected. The cabinet is equipped with a die cast aluminum wall bracket with ball/socket for multi angle adjustment capability. The FBT SHADOW 108CT meets the requirements of IP55 code (International Protection Rating).

FBT SHADOW 108CT Speaker is a weatherproof two way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications. They provide high quality voice and music reproduction even when exposed to harsh weather and environmental conditions. The water resistant drivers are protected by the water stop grille. Each grille is a 3 layers structure that consists of an external perforated stainless steel panel treated with a special protection, a center layer of reticulated foam and an inner layer of water repellent polyester mesh.

The internal circuitry is protected with a special sealing and treated with weatherproofing compound against the effects of moisture, corrosion and oxidation.

Suitable applications may range from sports fields to stadiums, convention centers, theme parks, swimming pools, cruise ships, restaurants and any in general for outdoor background music and paging systems.

Features

  • 8” coaxial woofer with 2” coil and 1” HF driver with 1.4” coil on conical 90° horn
  • 100V line transformer with selectable100W/50W power tapping
  • Sturdy molded polyethylene curved enclosure
  • Steel U bracket and other included hardware accessories
  • 4 wires cable to select the desired power tapping
  • Water-stop grill with 3 layers of protection
  • IP55 weather resistant
  • Standard grey finish

Specifications

Configuration: 2 way
Recommended amplifier: 450 W RMS
Long Term power: 225 W
Short term power: 900 W
Transformer: 100/100 V
Nominal impedance: 8 ohm
Frequency response: 80Hz – 20KHz -6dB
Low Frequency woofer: 8 – 2 coil inch
AES power: 200 W
High frequency driver: 1 – 1.4 coil inch
Sensitivity (@1W/1m): 95 dB
Maximum SPL cont/peak: 120/124 dB
Dispersion: 90° conical HxV
Crossover Frequency: 1.8 KHz
Recommended HP filter: 60hz – 24dboct
Input connector: 4 wire cable
Net Dimension (WxHxD): 285x285x250 – 11.22×11.22×9.84 mm/inch
Net Weight: 7/15.4 kg/lb
Transport Dimension (WxHxD): 365x365x330 – 14.37×14.37×12.99 mm/inch

Downloads

Shadow108CT_datasheet
