Premium 60 Watt Driver Unit, 16 Ohm, 110dB, 150Hz – 8kHz, for TH650 or TH660

Original price was: $169.00.Current price is: $160.56.

In Stock
SKU: TU660 Category: Tag:

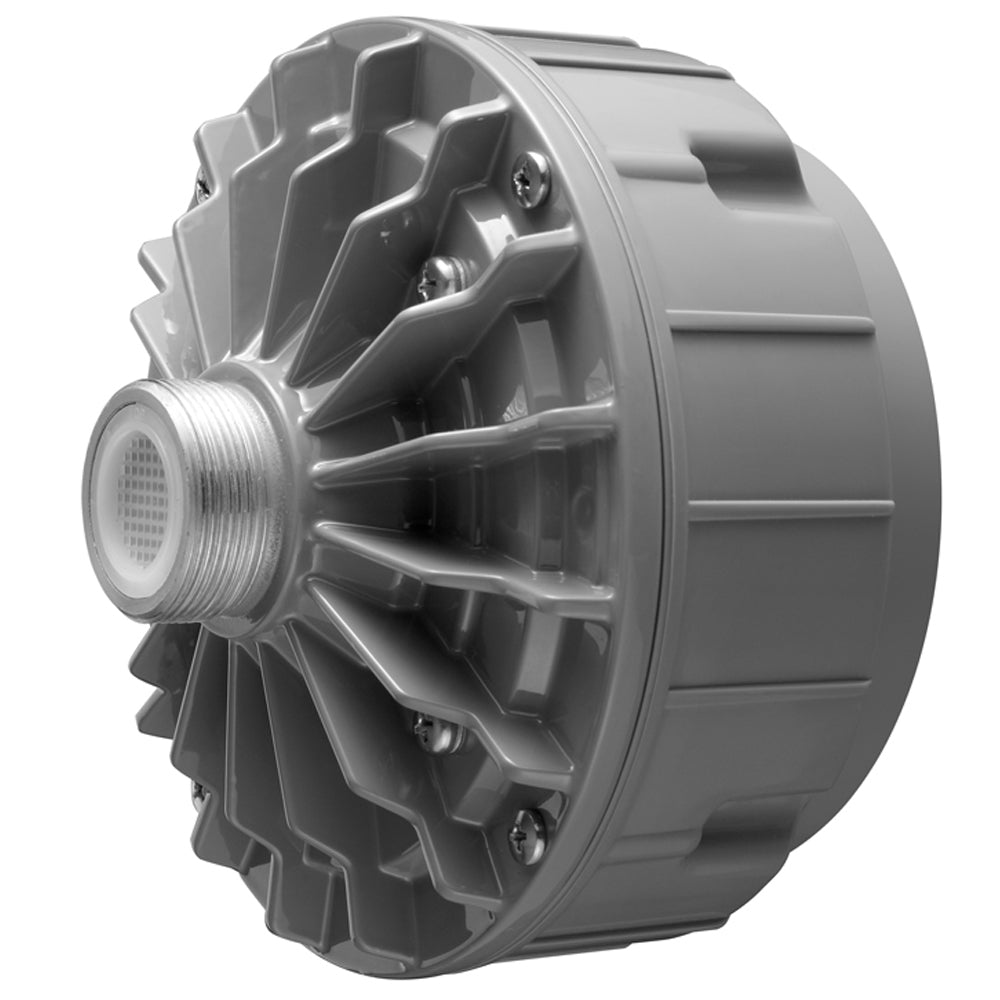

The TOA TU660 is a highly intelligible 60W speaker horn driver unit suited to public address announcement applications. It is Low-impedance (16 ?) has a Frequency Response of 150 Hz – 8 kHz and IP65 certified weatherproof construction. Its powder-coated finish and stainless steel screws ensure the unit’s weatherproof capability.

Use the driver unit in combination with a suitable horn such as the TH650, or TH660 (flare horns are optional).


Applicable Horns TH-650, TH-660
Rated Input 60 W
Rated Impedance 16 Ω
Sensitivity 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
Frequency Response 150 Hz – 8 kHz (When operated with JIS C 5504 standard horn.)
Dust/Water Protection IP65 (When a driver is operated with a horn.)
Horn Coupling 1 – 3/8 18 threads (inch screw)
Polarity Hot: Black, Com: White
Operating Temperature -20 ℃ to +55 ℃ (-4 ゜F to +131 ゜F) (no condensation)
Finish Flange: Aluminum, gray, powder coating
Rear cover: ABS resin, gray
Screws: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm (0.24″) in diameter, 600 mm (23.62″) in length)
Dimensions φ139 × 109 (D) mm (φ5.47″ × 4.29″)
Weight 2 kg (4.41 lb)
Option Driver unit cover: UC-200A
Matching transformer: TM-30T, TM-60T
