Sale!

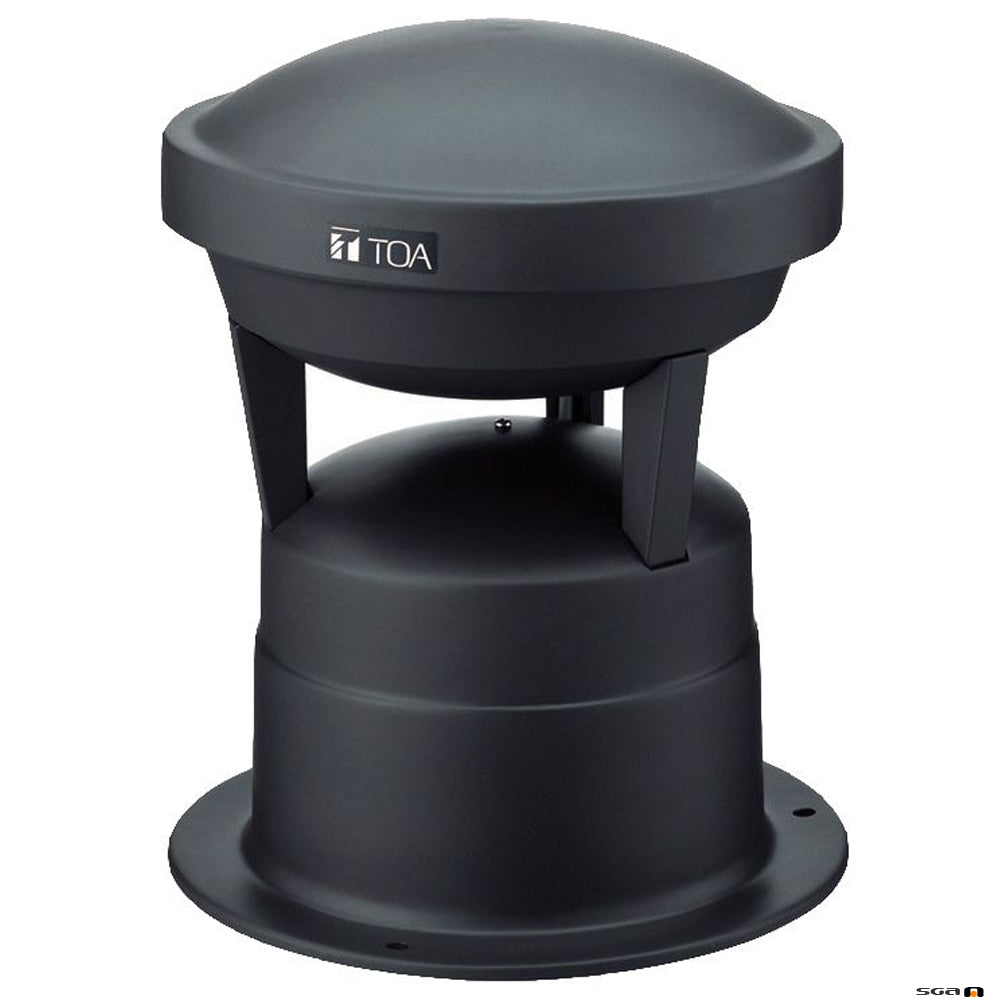

TOA GS302

Compact Garden Speaker for paging, background music broadcast.

$215.10

In Stock



SKU: GS302 Categories: , Tag:

Description

The TOA GS302 is a compact Garden Speaker ideal for paging and background music broadcast in such places as gardens, theme parks and resort facilities. Corrosion resistant material is adopted to the speaker exterior, ensuring prolonged use of the speaker in a water-splashed environment. The appearance of Garden Speaker is designed so inconspicuous that the speaker can be installed in shrubberies of garden blending with the surroundings.

Specifications

Enclosure Sealed type
Rated Input 30 W (100 V line), 15 W (70 V line)
Rated Impedance 100 V line: 330 Ω (30 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)
Sensitivity 87 dB (1 W, 1 m)
Frequency Response 100 – 8,000 Hz
Speaker Component 12 cm splash-proof cone-type
Input Terminal Push-in terminal
Applicable Cable Solid copper wire: φ0.8 – φ1.6 mm, Stranded cooper wire: 0.75 – 1.25 m㎡
Water Capability Equivalent to IPX4
Finish Top cover and base: FRP resin, dark gray, semi-gloss, paint
Speaker panel: ABS resin, dark gray, semi-gloss, paint
Legs: Aluminum, dark gray, semi-gloss, paint
Dimensions φ270 × 335 (H) mm
Weight 2.4 kg
Accessory TOA label …2

Downloads

gs-302_brochure
