Sale!

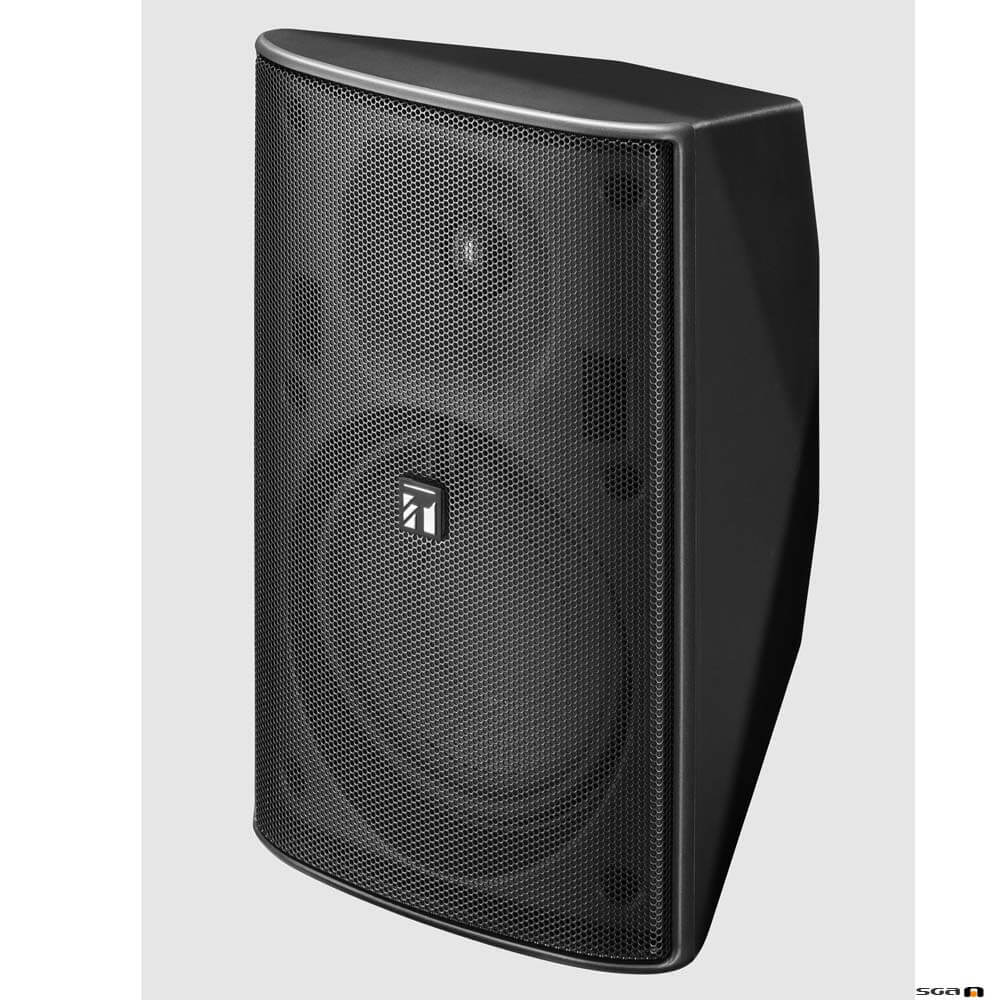

TOA F1300BTWPEB

TOA F1300BTWPEB 30W Black Speaker, IPx4, IP44, 2-way Bass Reflex, 100V line only. 80Hz-20kHz, 90dB. BSI Certified AS7240.24:2018.

$341.10

In Stock



SKU: F1300BTWP-1 Categories: , , Tag:

Description

TOA F1300BTWPEB Speaker 30W, 2-way Bass Reflex, 100V line. 80Hz-20kHz, 90dB. Black.

BSI Certified for Australian Standard Fire detection and alarm systems, Fire alarm loudspeakers AS7240.24:2018.

Rated IPX4 (Protects from splashing water, no matter the direction) so that it can be permanently installed outdoors.

Rated IP44( Protected against solid objects that are bigger than 1mm and water splashing from all directions)

TOA F1300BTWPEB Speaker component consists of low frequency 13 cm (5″) cone-type and a high frequency balanced dome tweeter. For the white version see (F1300WTWPEB)

Innovative octagonal horn provides wide dispersion. Significantly improved 110°× 100° high-frequency dispersion angle, for better sound coverage and a more even tonal balance.

The latest addition to TOA’s acclaimed speaker line, the new F Series of compact, high efficiency two-way speakers achieve higher performance levels for wide range frequency response and power handling. Designed to be extremely versatile in order to meet different installation and application requirements, the new F Series are ideal solutions that solve increasing needs for adaptable sound reinforcement.

The F Series also features a waterproof design. The speakers may also be re-painted as desired.

The F Series speaker casing comes with a design that is highly stylish, so it blends well into a room’s decor and can be attractively installed. The graceful, lightly convex bulge on the side of the casing is also part of a rigidity-enhancing casing construction that works for clear sound reproduction.

The F series is designed to provide high quality sound and reliable performance for restaurants, retail and audio/visual applications. For more challenging acoustic environments, you can easily reduce the high frequency dispersion of F2000 models by simply installing an included horn adapter.

All models include a versatile wall/ceiling-mount bracket for easy installation.

Specifications

Enclosure Bass-reflex type
Rated Input 30 W
Rated Impedance 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity 90 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response 80 Hz – 20 kHz, -10 dB at installation in 1/2 free sound field
Crossover Frequency 2 kHz
Directivity Angle Horizontal: 110゜, Vertical: 100゜
Speaker Component Low frequency: 13 cm (5″) cone-type, High frequency: 25 mm (1″) dome tweeter
Input Terminal Push-in terminal
Water Protection IPX4
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Finish Enclosure: HIPS, black
Punched net: Surface-treated steel plate, black, anticorrosive paint
Joint bracket, wall bracket: Stainless steel
Speaker bracket: Die-cast aluminum, black, paint
Dimensions 162 (W) × 250 (H) × 161 (D) mm (6.38″ × 9.84″ × 6.34″)
Weight 3.6 kg (7.94 lb) (including the supplied brackets)
Accessory Speaker bracket …1, Joint bracket …1, Wall bracket …1,
Bracket fixing screw …1 set, Terminal cover …1, Terminal cover mounting screw …4
Option Speaker mount bracket: YS-60B

Downloads

f-series_brochure
