30W White Speaker, 2-way Bass Reflex, 100V line or 8 Ohm selectable

Original price was: $189.00.Current price is: $179.55.

In Stock
SKU: BS1030W Categories: , , Tag:

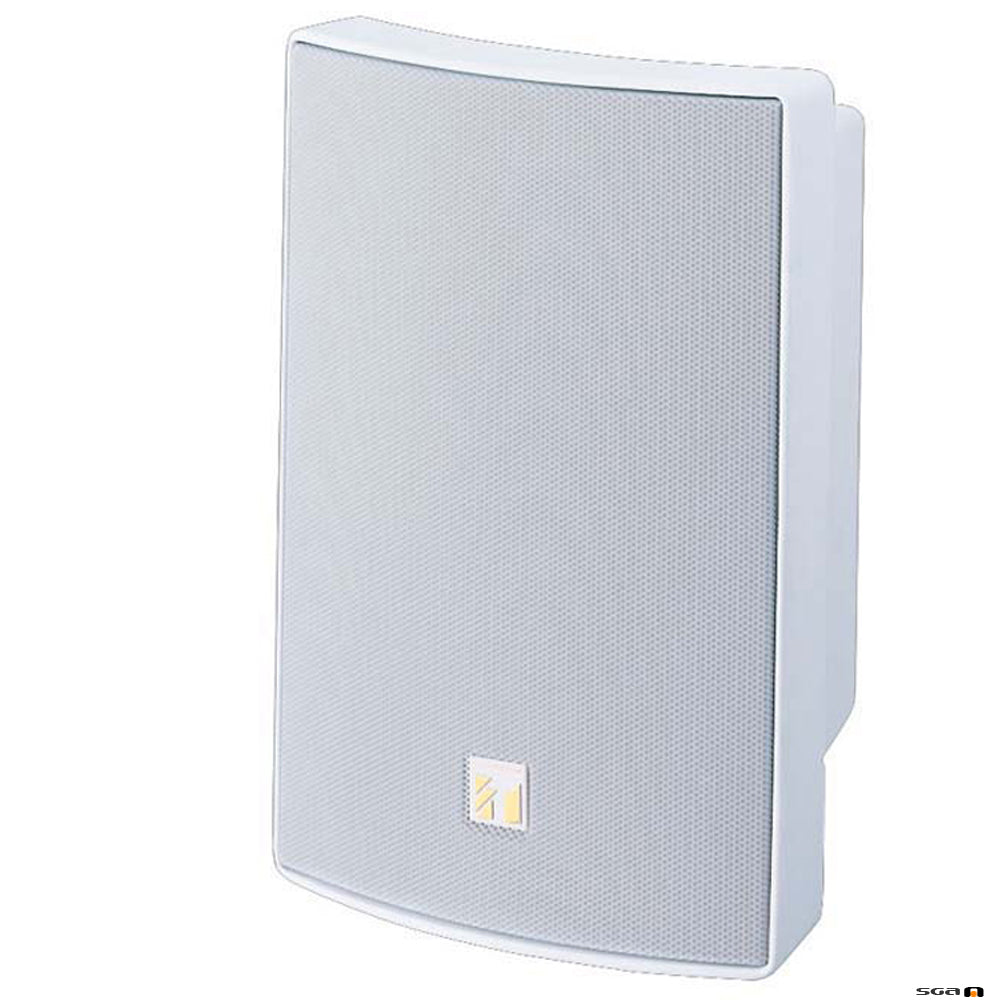

TOA BS1030W Speaker 2-way Bass Reflex, 30W 4.72? (12 cm) cone woofer, 1? (2.5 cm) dome tweeter. 100V line or 8 Ohm. White.
Frequency Response is 80 Hz to 20 kHz, Sensitivity is 90 dB SPL (1 W/1 m)

The BS1030W can be used for both high-impedance and low-impedance applications. It features a wide frequency range suitable for use for announcements and music playback.

The speaker’s splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain. IEC IP-X4 Rating (resistant to water splashes from any direction and solid particles from anything bigger than 1 mm)

TOA BS1030W Speaker has exceptional sound quality and value for a wide variety of applications. Available in black (TOA BS1030B), and white.? The versatile BS1030 is designed for both indoor and outdoor use with a durable ABS resin enclosure and steel mesh grille.

Installation is fast and easy with the supplied mounting bracket or rear panel keyholes for horizontal or vertical surface-mounting.


Enclosure 2-way bass-reflex type
Rated Input 30 W
Rated Impedance 8 Ω
100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
Sound Pressure Level 90 dB (1 W, 1 m)
Frequency Response 80 Hz – 20 kHz
Speaker Component 12 cm cone-type + dome-type
Speaker Cord 2-core cabtyre cord with diameter of 6 mm
Operating Temperature -10 ℃ to +50 ℃
Water Protection IPX4 (can be installed vertically or horizontally.*)
Finish Enclosure: ABS resin, white (RAL9010 PURE WHITE), paint
Net: Surface treated steel plate, white (RAL9010 PURE WHITE), powder coating
Bracket: Surface treated steel plate, white equivalent to RAL9010 PURE WHITE,
powder coating
Dimension 196 (W) × 290 (H) × 150 (D) mm (unit only)
Weight 2.5 kg (unit only)
Accessory Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2
Option Mounting bracket: SP-420
Applicable bracket: WCB-13W, SP-410
Applicable stand: ST-16A
