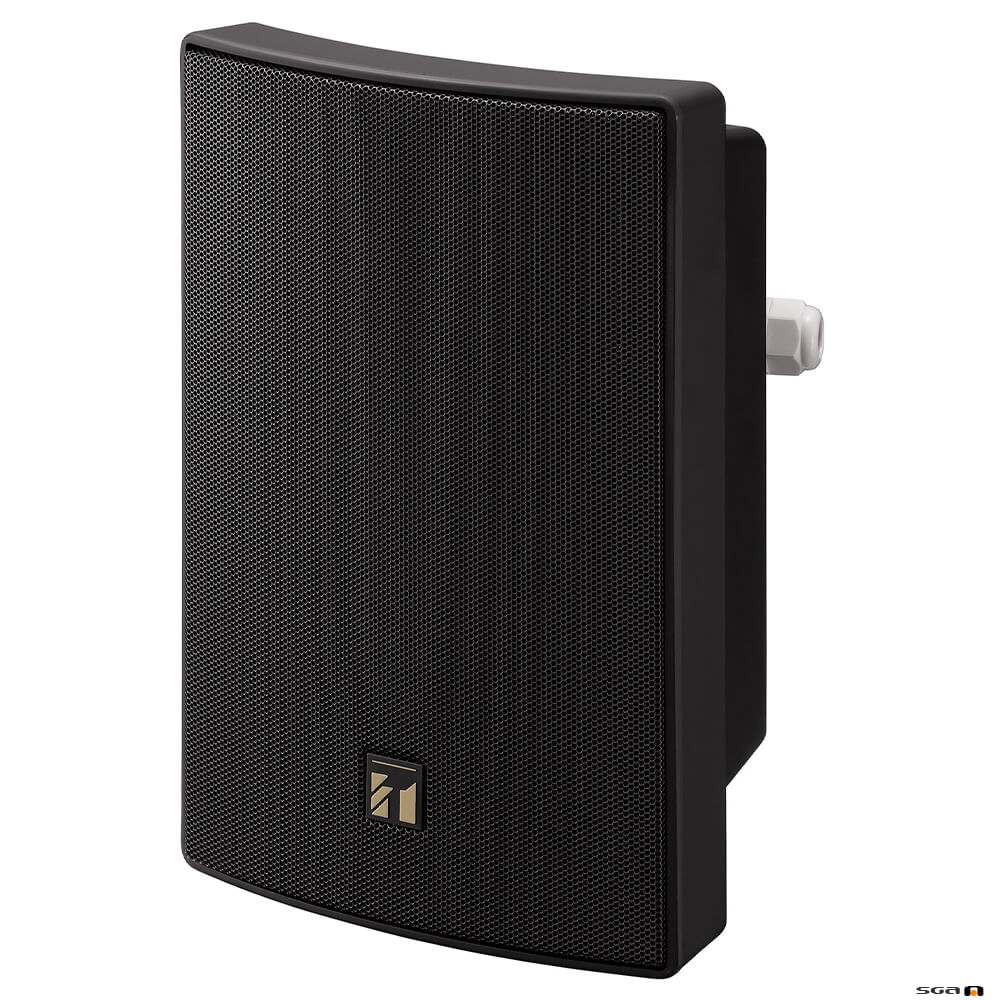

TOA BS1015BSB

TOA BS1015BSB 15W Black Speaker, 2-way Bass Reflex, 100 Volt line. BSI Certified AS7240.24:2018.

$224.00

In Stock



SKU: BS1015BSB Category: Tag:

Description

TOA BS1015BSB Box Speaker 15 Watt Black Speaker, 2-way Bass Reflex, 100 Volt line

The TOA BS1015BSB is the voice alarm certification product. BSI Certified for Australian Standard Fire detection and alarm systems, Fire alarm loudspeakers AS7240.24:2018.

Speaker design that harmonize with the venue’s architecture and decor.

  • 2-way hi-fi speaker
  • Easy and quick installation
  • Fits architecturally sophisticated environments
  • Certified according to EN 54-24, ISO 7240-24, AS7240.24:2018
  • Compliant with BS-5839-8

Features

  • 2-way hi-fi speaker
  • Easy and quick installation
  • Fits architecturally sophisticated environments
  • Certified according to EN 54-24, ISO 7240-24
  • Compliant with BS-5839-8

Specification

BS-1015BSB BS-1015BSW BS-1034EN
Frequency response 80 Hz – 20 kHz 80 Hz – 20 kHz 120 Hz – 20 kHz
Connection Ceramic screw terminals, thermal fuse Ceramic screw terminals, thermal fuse Wall mounting bracket with plug-and-socket connection and lock
Sensitivity (1 W, 1 m) 90 dB 90 dB 89 dB
Speaker component Low: 5″ cone-type High balanced dome tweeter Low: 5″ cone-type High balanced dome tweeter Low: 5″ cone-type High balanced dome tweeter
Directivity angle horizontal 220 ° 220 °
Directivity angle vertical 330 ° 330 °
