QSC AD-S802T

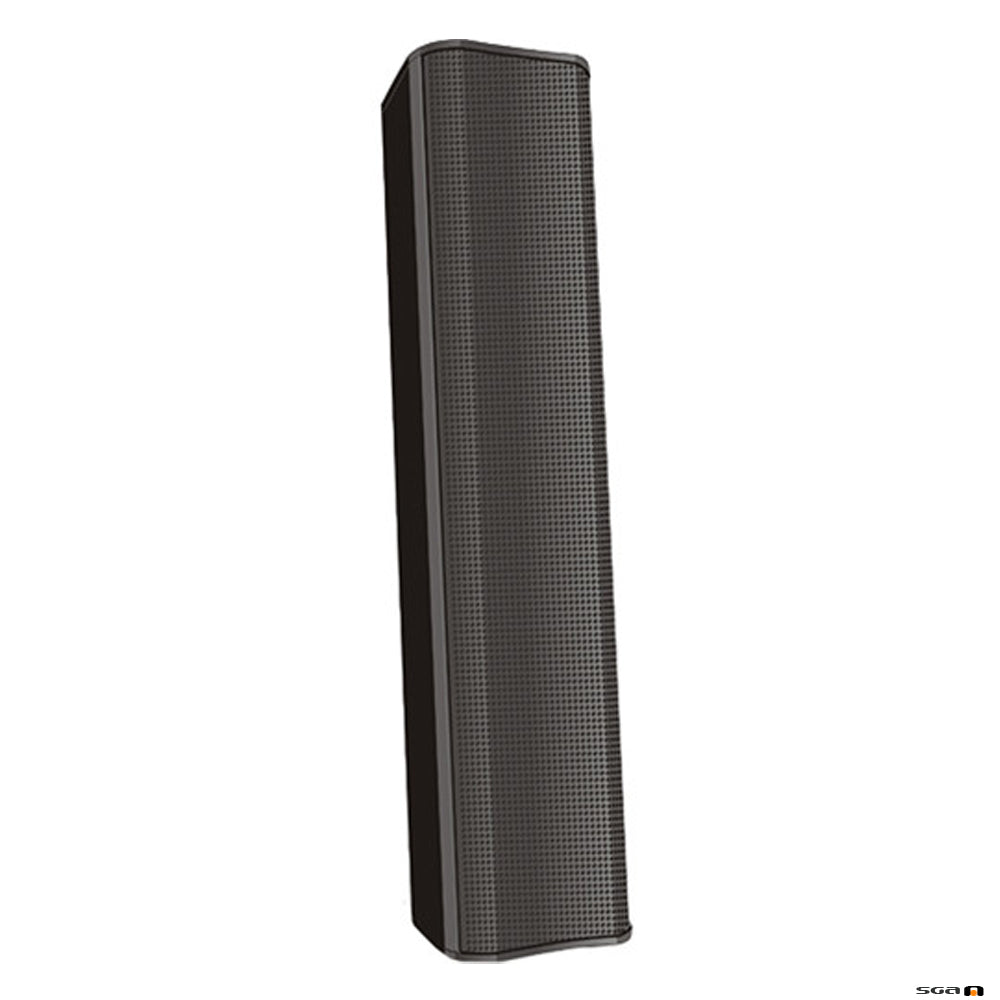

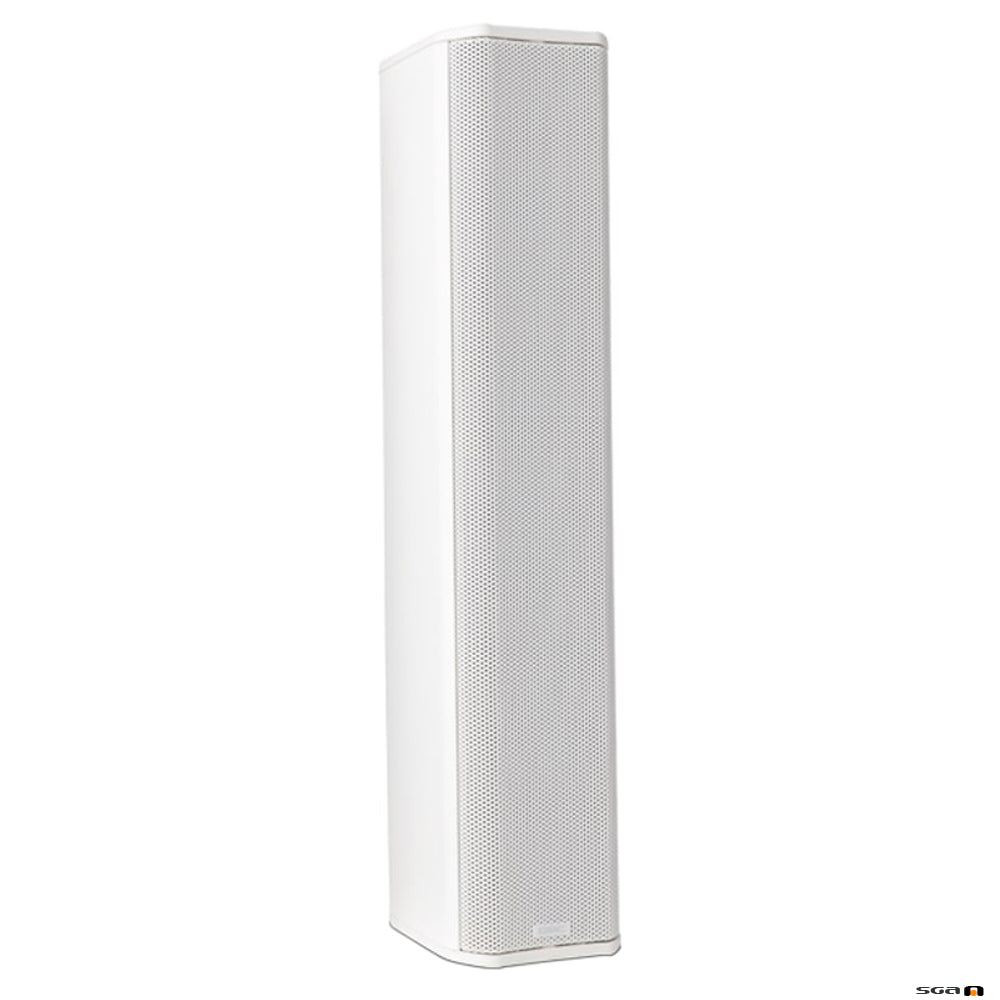

QSC AD-S802T 8 Element column speaker 70/100V/8? 160? x 20? coverage (Inc. pan/tilt bracket). Black or White.

Original price was: $1,399.00.Current price is: $1,259.10.

In Stock
SKU: N/A Category: Tag:

Description

QSC AD-S802T the all-new AcousticDesign? Series is a 8-driver column surface-mount loudspeaker. This premium full range system is capable of 70V/100V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20? downward tilt.

Features

  • Deliberately unobtrusive industrial design.
  • Available in white (RAL 9010) or black (RAL 9011).
  • Paintable enclosure and grill.
  • Complete EASE, CLF, CAD & BIM information.
  • Rugged aluminum construction.
  • UV Inhibitors in all white models.
  • IP-54 rating for dust and splash resistance.
  • Powder-coated grills and weather-treated cones.
  • Close to wall pan/tilt bracket included.
  • Low saturation 70/100V transformers.
  • 8 ohm low impedance bypass.
  • Screw-down Euro block connector with loop-through.
  • Sealable input weather cup – keeps moisture away from wiring.

Specifications

System Details

AD-S802T

Transducer

(x8) 2.75 in (69.8 mm) weather treated paper cone woofer

Effective frequency range 1, 2, 3, 8

90 Hz – 17 kHz

Rated noise power / voltage 6

120 watts / 31 volts (rms)

Sensitivity [dB]

Rated @1W, 1m 2, 3, 4, 8 : 87
EN54-24 @1W, 4m 9 : TBD

Coverage (‐6 dB) [°]
Horizontal x Vertical 9

Rated 2, 5, 8 : 160 x 20
500Hz: 180 x 90,    1kHz: 180 x 35
2kHz: 160 x 22,    4kHz: 180 x 20

Declared values of SPL, 1/3rd
octave band CPB, 1W, 4m,
EN54-24 eq applied [Hz : dB] 9

 500: TBD;   630: TBD;  800: TBD; 1000: TBD
1250: TBD; 1600: TBD; 2000: TBD; 2500: TBD
3150: TBD; 4000: TBD

Directivity factor 2, 5, 8

TBD

Directivity index [dB] 2, 5, 8

12

Maximum SPL [dB]

Rated, 1m (continuous / peak) 7 : 108 / 114

EN54-24, 4m (low-Z / Highest-tap) 9 : TBD / TBD

Recommended amplifier

120 watts

Transformer taps / impedance

Bypass: 8Ω
7.5W (70V); 15W (100V) Tap: 666Ω
15W (70V);  30W (100V) Tap: 333Ω
30W (70V);  60W (100V) Tap: 167Ω
60W (70V);   N/A (100V) Tap: 83Ω

Input connector type

Euroblock connector with parallel output

Enclosure material

Powder coated aluminum

Grille material

Powder coated aluminum

Ingress protection

IP-54

Operating environment

Designed for indoor or outdoor use

Operating temperature range

-4 to 122° F (-20 to 50° C)

Net weight

13.7 lb (6.2 kg)

Product dimensions (H x W x D)

23.4 x 5.2 x 5-inch
(595 x 131 x 126 mm)

Shipping Weight

19.4 lb (8.8 kg)

Shipping Dimensions (H x W x D)

12.3 x 9.9 x 32.4-inch
(312 x 251 x 823 mm)

Included accessories

Sealed input cover plate with gland nut
Quick Hang Pan/Tilt wall bracket
Shoulder eyebolt safety tether anchor

Safety Agency

UL1480A
EN54-24: 2008 type B, (pending)
Transformer UL registered per UL1876, ROHS, CE compliant
