Mipro ACT312B-5

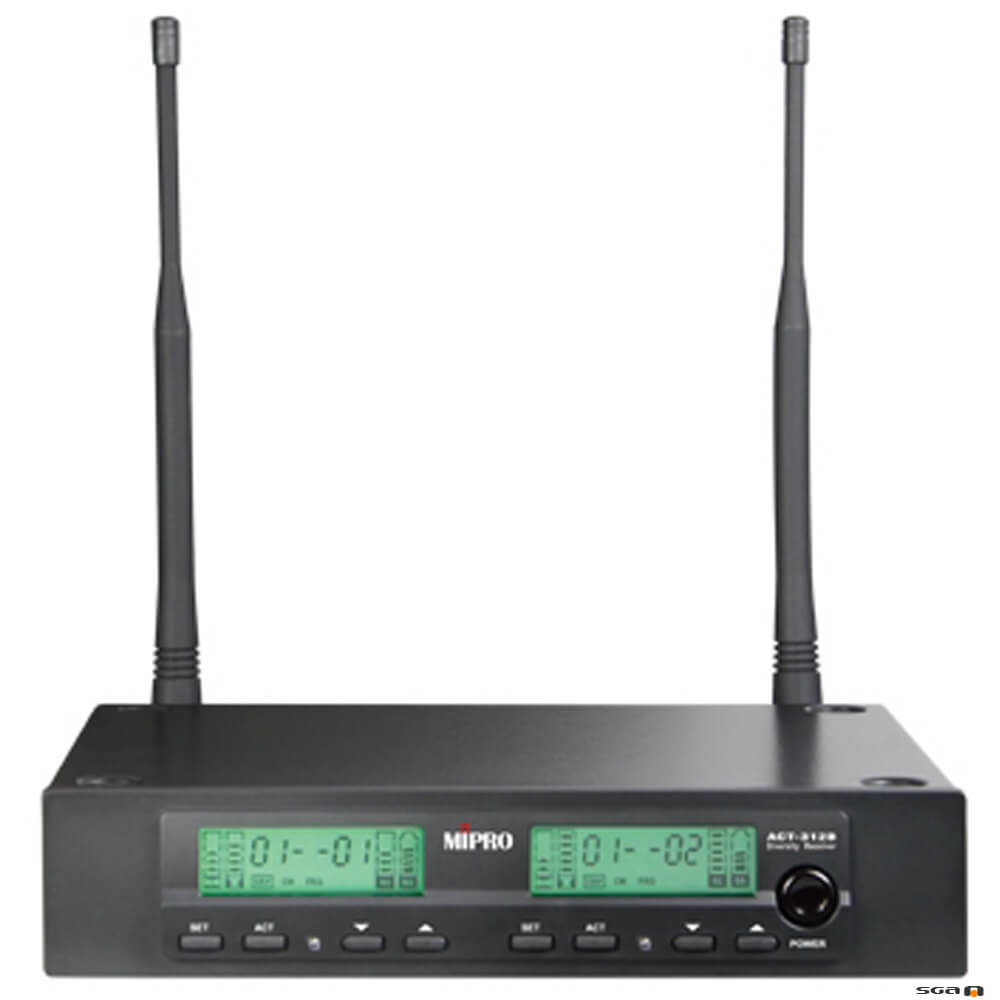

MIPRO ACT312B-5 Dual Channel Diversity Receiver 1/2RU.


In Stock

"Bundle With"

Mipro ACT32H-5 (2 Pk)

Mipro ACT32H-5 Wireless Handheld Microphone (2 Pack)

Mipro ACT32T-5 (2 Pk)

Mipro ACT32T-5 Beltpack Transmitter with LCD and mute function (2Pk)

Mipro ACT32 (Combo)

Mipro ACT32T-5 Beltpack and ACT32H-5 Wireless Handheld Transmitter.


Mipro ACT312 Dual-Channel UHF Diversity Receiver. Industry-leading technology, including Auto Scan and patented ACT (Automatics Channel Targeting) channel sync setup, deliver the forward thinking features that enable our customers to specify and install systems with confidence.

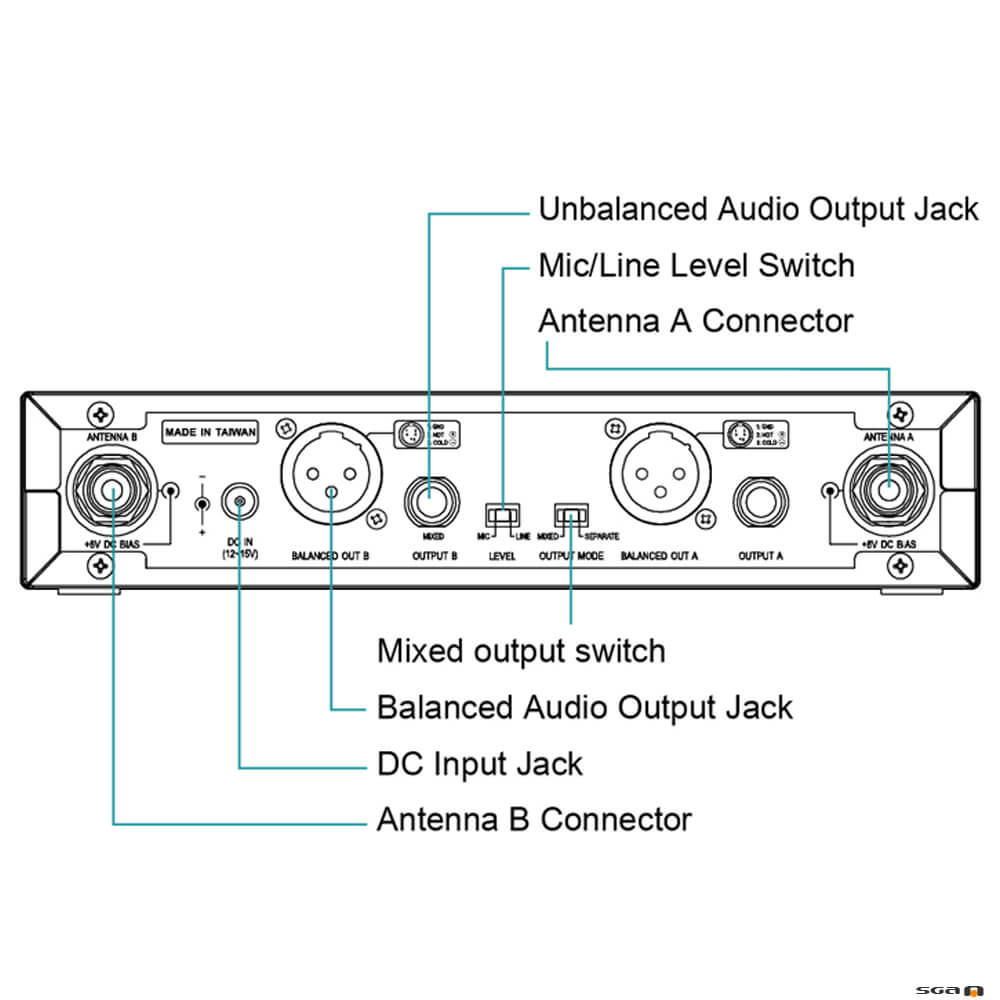

MIPRO Dual Channel Diversity Receiver. 1/2 RU metal rack mountable receiver. 961 selectable frequencies, detachable antenna, independent XLR and 6.35mm jack outputs and selectable jack mixed output. Single and Dual rack kits available.

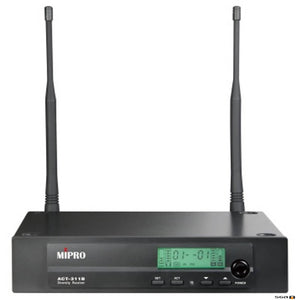

The innovative ACT 3 Series wireless microphone systems are a culmination of years of extensive design and manufacturing experience. No wiring and adjustment required as PCB, LCD and front panel are integrated. Featuring 1/2U receivers of single-channel ACT311 & dual-channel ACT-312 receivers.

EIA standard 19” rack-mountable metal chassis is used instead of cheap plastics. Featuring backlit LCD instead LED display for ease of use and professional appearance. PLL-synthesized technology for RF stability and matched with rugged ACT-32H & ACT-32T transmitters.

Design and made in Taiwan. Advanced features and functions make it ideal for professional applications with affordable prices.

Package Includes: The price listed here is for the Mipro ACT312B-5.

Options Available:
Use with any combination of the following transmitters
ACT32H-5 Wireless Handheld Microphone or ACT32HC (Rechargeable Handheld Microphone)
ACT32T-5 Beltpack Transmitter or ACT32TC (Rechargeable Beltpack Transmitter ) with either a head /lapel microphone



  • EIA standard 1/2U-rack unit design
  • Diversity technology for optimum reception
  • 961 selectable frequencies and up to 8 preset compatible systems per band
  • 81selectable frequencies and up to 4 preset compatible systems (CEPT/EU countries)

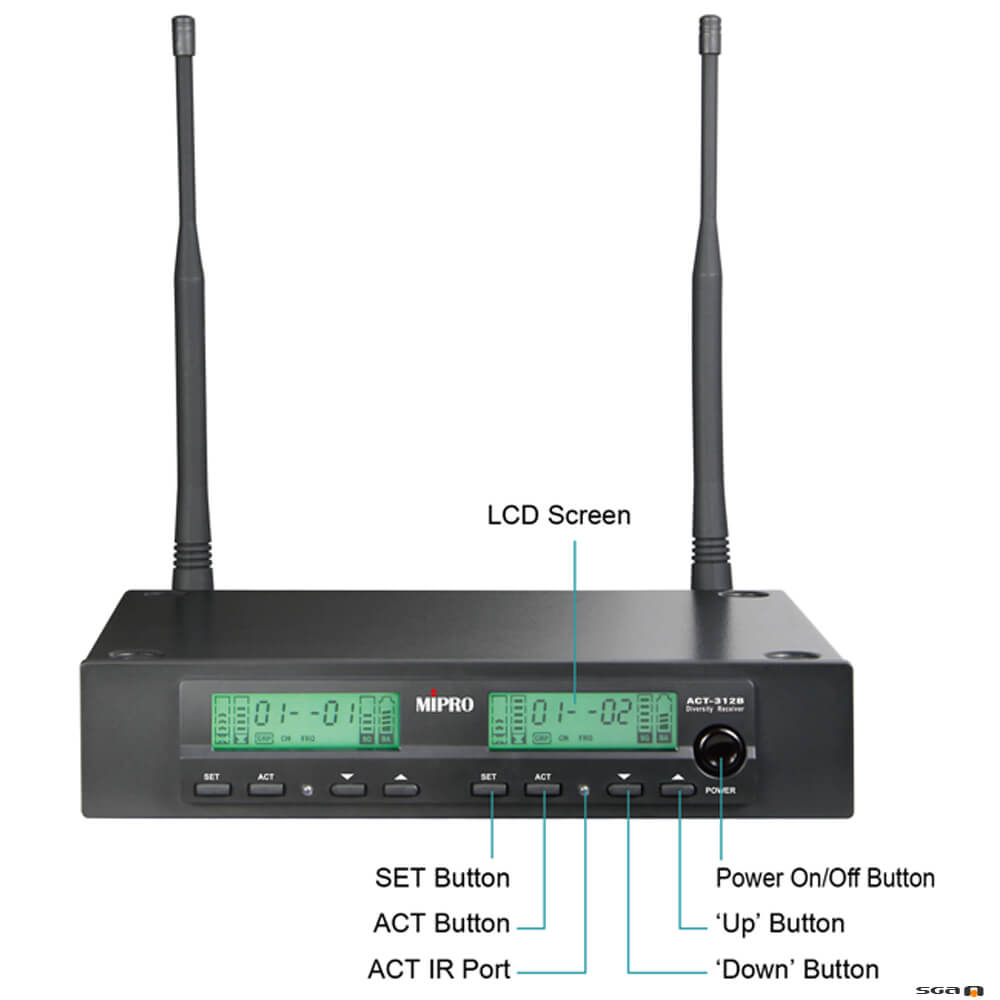

  • Advanced multi-function backlit LCD displays all parameters on the same screen
  • One-touch AutoScan and ACT channel setup technology
  • Industry’s only interference “warning” indicator
  • Dual “Pilotone & Noiselock” circuits minimize interference
  • 100m (330ft) operating range (line-of-sight)
