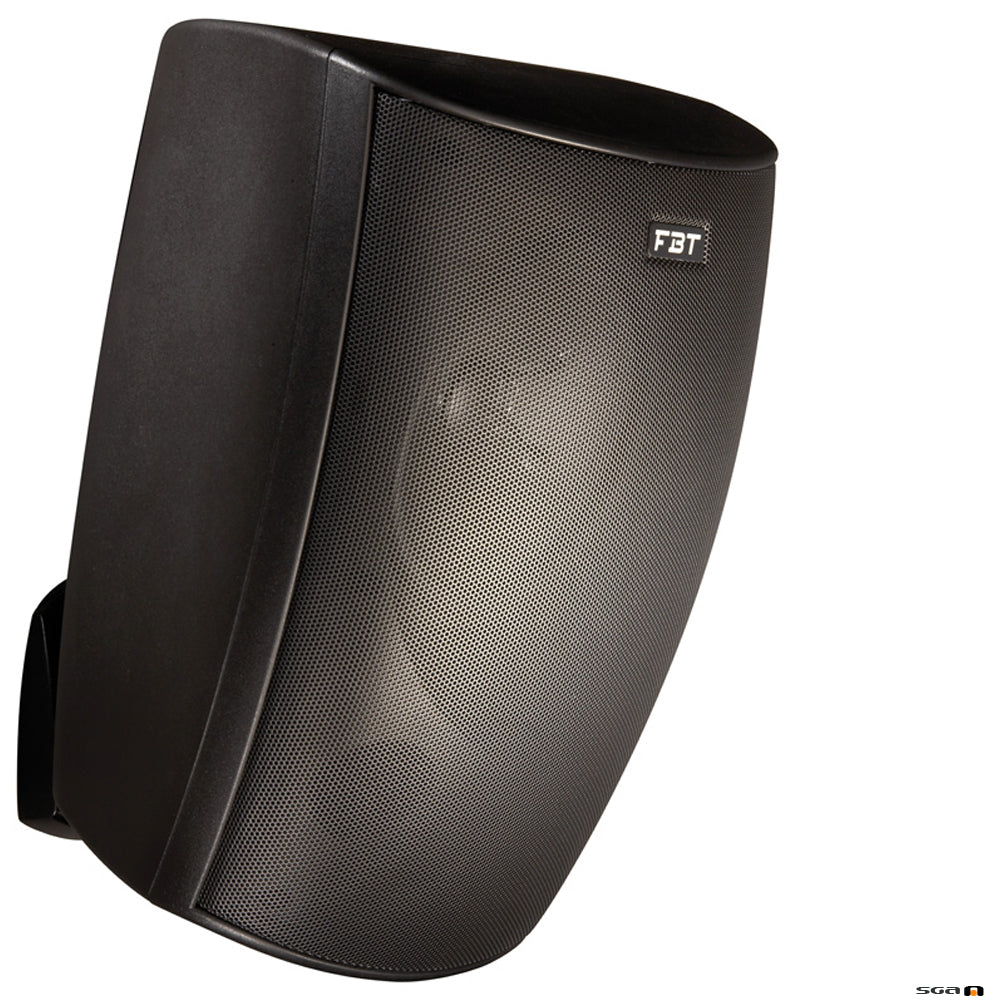

FBT Project 660BT

6.5″/1″ two-way bass reflex loudspeaker cabinet in ABS, NOM/MAX power 60W/120W

$325.00

In Stock




Description

The FBT Project 660BT speaker unit is two way and equipped with a 100V line transformer and provides the possibility of an 8 Ohm connection. This speaker features 2-way bass reflex, 6.5-inch woofer and 1 inch tweeter. This speaker provides -10dB 70Hz-20kHz frequency response, 90°x90° dispersion. The FBT Project 660BT loudspeaker has the following power taps at 15/25/40/50W/8ohm.

An exclusive fully adjustable support bracket provides a flexible mounting system for virtually any application.

Ideally suited for all applications requiring high quality sound reproduction, for use in restaurants, clubs, churches, schools, conference rooms and hotels. Sold as a single unit.

Features

  • Bracket included
  • White or black ABS loudspeaker
  • 2 way bass reflex
  • 6.5″ woofer and 1″ tweeter
  • 100V line transformer(multi Tapp)
  • Frequency response @-10dB 70Hz-20kHz
  • Dispersion HxV 90°x90°
  • High-pass filter recommended 40Hz-24dB/oct
  • 4-piece multiple packing
  • 60W/120W nominal/maximum power
  • Setting 15/30/45/60W/8ohm
  • Sensitivity 90dB
  • Max SPL 111dB

Specifications

Configuration: 2 way
Recommended amplifier: 120 W RMS
Long Term power: 60 W
Short term power: 240 W
Transformer: 15-30-45-60 V
Nominal impedance: 8 ohm
Frequency response: 70Hz-20kHz -6dB
Low Frequency woofer: 6.5 inch
Sensitivity (@1W/1m): 90 dB
Maximum SPL cont/peak: 111 dB
Dispersion: 90×90 HxV
Recommended HP filter: 40Hz-24dboct
Input connector: Euroblock
Net Dimension (WxHxD): 218x312x219 mm/inch

Downloads

Project 660
