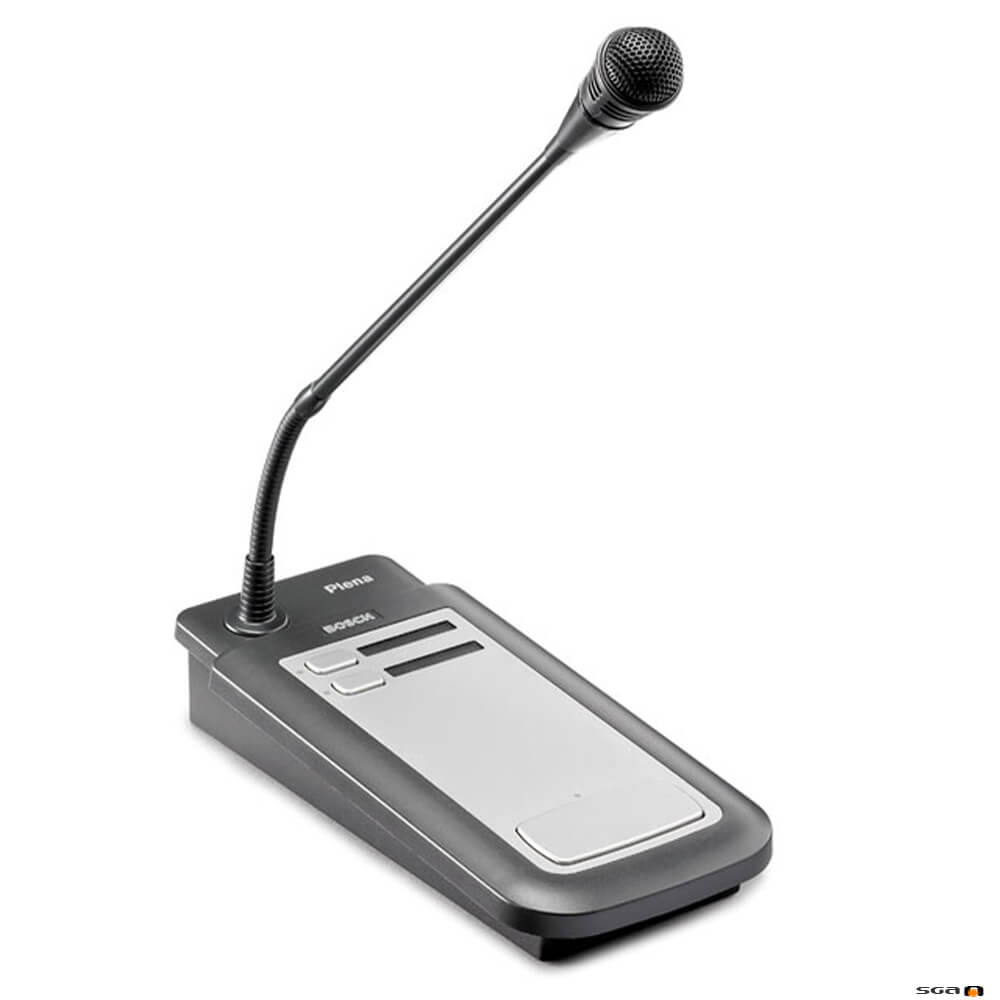

Bosch PLE-2CS

Bosch PLE-2CS 2-zone Paging Microphone for PLE-2MA120/240 and PLE-10M2. Allows operator to page into a single zone or both zones.

$314.60 $293.00

In Stock



SKU: PLE-2CS Categories: , Tag:

Description

The Bosch PLE2CS paging microphone 2-zone call station is a modern, high-quality call station with a stable metal base design, a flexible microphone stem and a unidirectional condenser microphone. It can make calls to selected zones in a public address system built with the PLE series two-zone mixer and mixer amplifiers. In addition to tabletop use, the Plena design allows neat flush-mounting in desktops.

The call station has a balanced line level output, giving it a maximum range of 200 meters from the mixer, when using CAT-5 extension cables. With the loop-through RJ-45 connector, it is possible to daisy chain multiple call stations. The priority is automatic i.e. the call station nearest the mixer has priority and can override a call station further from the mixer. When a call is being made by a higher priority call station, a yellow light will display on the lower priority call stations.

Bosch PLE2CS Paging Microphone 2-zone for PLE-2MA120/240 and PLE-10M2. A

Features

  • Modern two-zone call station for the PLE series
  • Selectable gain
  • Speech filter and limiter
  • Output level control
  • Loop-through option for up to 8 call stations
  • LED indications for zone selection, busy, and power on

Specification

Voltage range 24 VDC supplied by PLE mixer amplifier or mixer
Current consumption <30 mA
Nominal sensitivity 85 dB SPL (gain preset 0 dB)
Nominal output level 700 mV
Input sound level (max) 110 dB SPL
Gain preset -15 / 0 / +6 dB
Limiter threshold 2 V
Compression ratio limiter 1:20
Distortion <0.6% (maximum input)
Input noise level (equiv.) 25 dB SPLA
Frequency response 100 Hz to 16 kHz
Speech filter -3 dB at 315 Hz, high-pass, 6 dB/oct
Output impedance 200 ohm
Chimes 6
Base dimensions (H x W x D)without microphone 40 x 100 x 235 mm (1.57 x 3.97 x 9.25 in)
Stem length with microphone 390 mm (15.35 in)
Cable length 5 m (16.4 ft)
Weight Approx. 1 kg (2.2 lb)
Mounting Standalone
Color Charcoal with silver
