Sale!

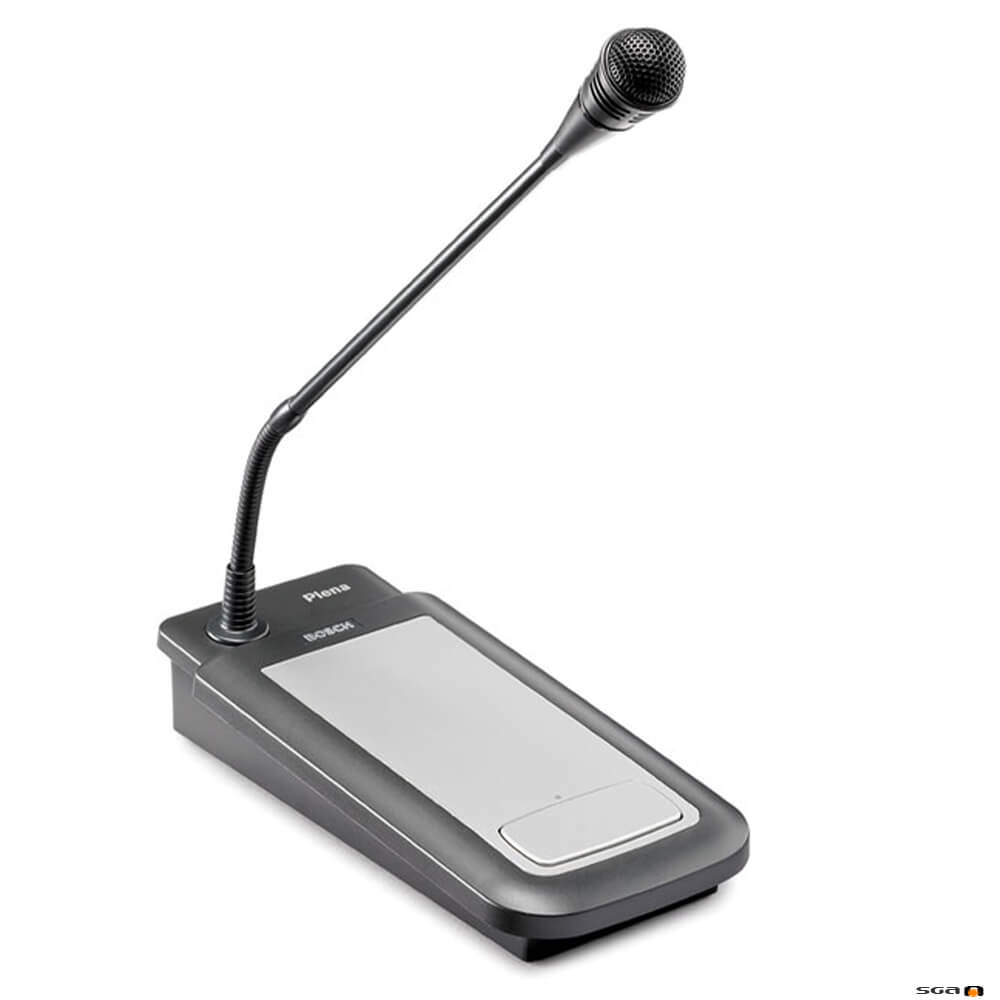

Bosch PLE-1CS

Bosch PLE-1CS Paging Microphone. Momentary or Toggle PTT (Push-to-talk) switch with active LED. 2m cable

$157.30 $146.00

In Stock



SKU: PLE-1CS Categories: , Tag:

Description

Bosch PLE1CS Paging Microphone All Call Station Plena Tabletop from Bosch. It’s a high-quality unidirectional condenser microphone, ideal for making calls and announcements via a public address system. The mic has a heavy metal base with rubber feet for stability on any flat surface. The unique body design also allows the mic to be flush-mounted in a desktop.

The Bosch PLE1CS mic has a push-to-talk button for activation, which can be set for momentary or toggle operation to meet your needs. A green LED indicates when the mic is active. The microphone can operate via 12-48V phantom power supplied by an amplifier. The mic has a fixed cable with a lockable 5-pin Euro-style connector for connection to your PA or intercom system.

Features

  • PTT-key for calls for activation
  • Momentary or toggle
  • Green LED, indicating microphone active
  • Stable metal base design with fixed 2 m cable and lockable Euro style connector
  • Phantom powered by amplifier

Specification

Voltage range 12 to 48 V
Current consumption <8 mA
Sensitivity 0.7 mV @ 85 dB SPL (2 mV/Pa)
Maximum input sound level 110 dB SPL
Distortion <0.6% (maximum input)
Input noise level (equiv.) 28 dB SPLA (S/N 66 dBA ref. 1 Pa)
Frequency response 100 Hz to 16 kHz
Output impedance 200 ohm
Base dimensions (H x W x D) 40 x 100 x 235 mm(1.57 x 3.97 x 9.25 in)
Weight Approx. 1 kg (2.2 lb)
Color Charcoal with silver
Stem length with mic. 390 mm (15.35 in)
Cable length 2 m (6.56 ft)
Operating temperature -10 ºC to +45 ºC (14 ºF to +113 ºF)
Storage and transport temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity <95%

Downloads

Bosch-PLE-1CS-datasheet
