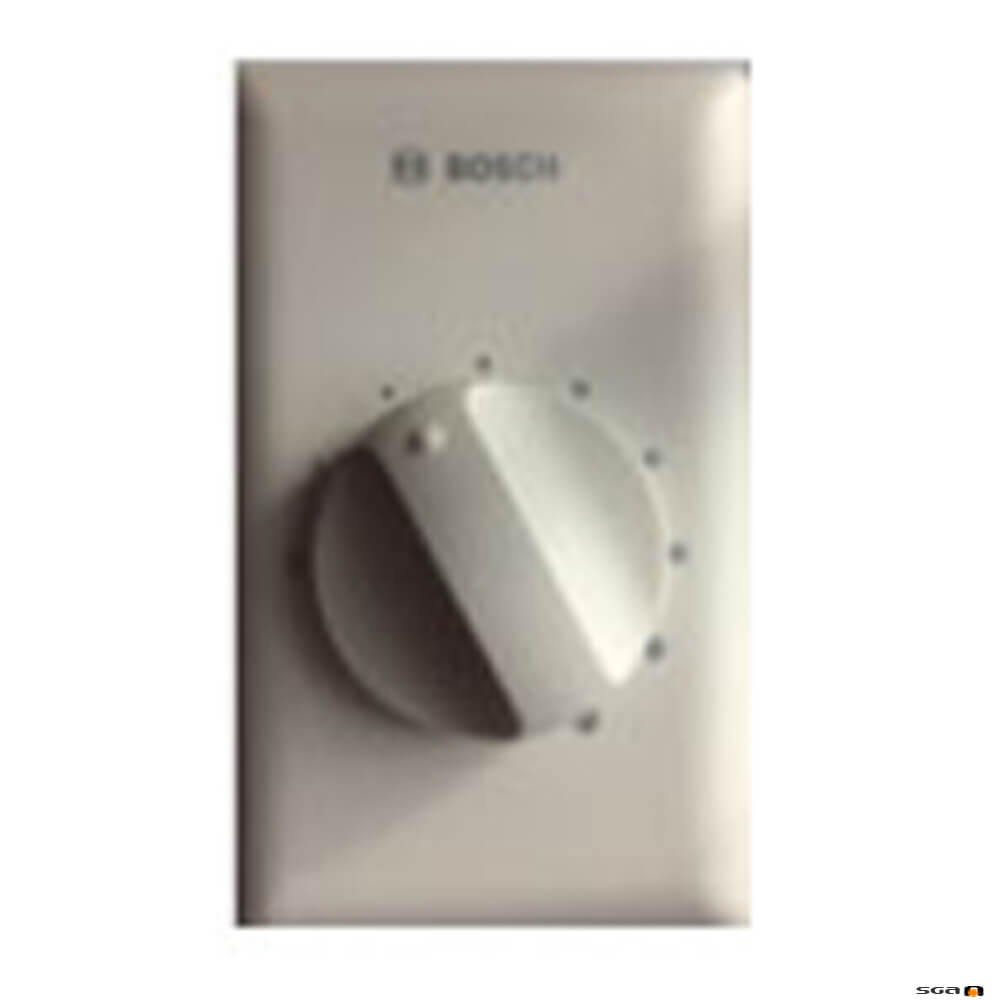

Bosch LM1-VC12P

Bosch LM1-VC12P Wall Volume Control, 12 watts with Relay, portrait orientation. 5 attenuation steps of -3dB

$61.60 $57.00

In Stock



SKU: LM1-VC12P Category: Tag:

Description

Bosch LM1-VC12P  Wall Volume Control, 12 watts with Relay, portrait orientation. 5 attenuation steps of -3dB plus an off position. Robust metal design. 24V DC Relay (when used) allows attenuator to be bypassed in case of an emergency. 114 x 70 x 32mm (HxWxD)

Public address systems are often used for both announcements and background music distribution. Volume controls can be used to adjust the sound level locally. In the event of an (emergency) announcement, the built in relay ensures that the message is broadcast at a preset level, independent of the local volume setting.

The volume controls are available in 12 watt and 36 watt and 100 watt.

The Bosch LM1-VC12P 12 watt volume control features 5 attenuation steps of -3 dB and an off position. The intuitive graphics around the knob clearly shows the attenuator steps and off position.

Features

  • Suitable for 3-wire and 4-wire override systems
  • Built-in 24 VDC override relay
  • Robust design

Specification

LM1-VC12P (portrait version)LM1-VC12L (landscape version) 12 W Volume control
Rated power (PHC) 12 W
Input voltage 100 V
Attenuation steps 5 x -3 dB + off
Max. allowed torque on the switch knob 80 Nm
Frequency response (-1 dB) 50 Hz to 20 kHz
THD <0.5%
Connection terminal 8-way screw terminal
Acceptable wire gauge ø 0,8 to 1.6 mm
Override relay / Current consumption 20 mA at 24 VDC
Dimensions (W x H x D) 114 x 70 x 32 mm
Weight 257 g
Color White (RAL 9010)
Operating temperature -10 ºC to +55 ºC (14 ºF to +131 ºF)
Storage temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity <95%
