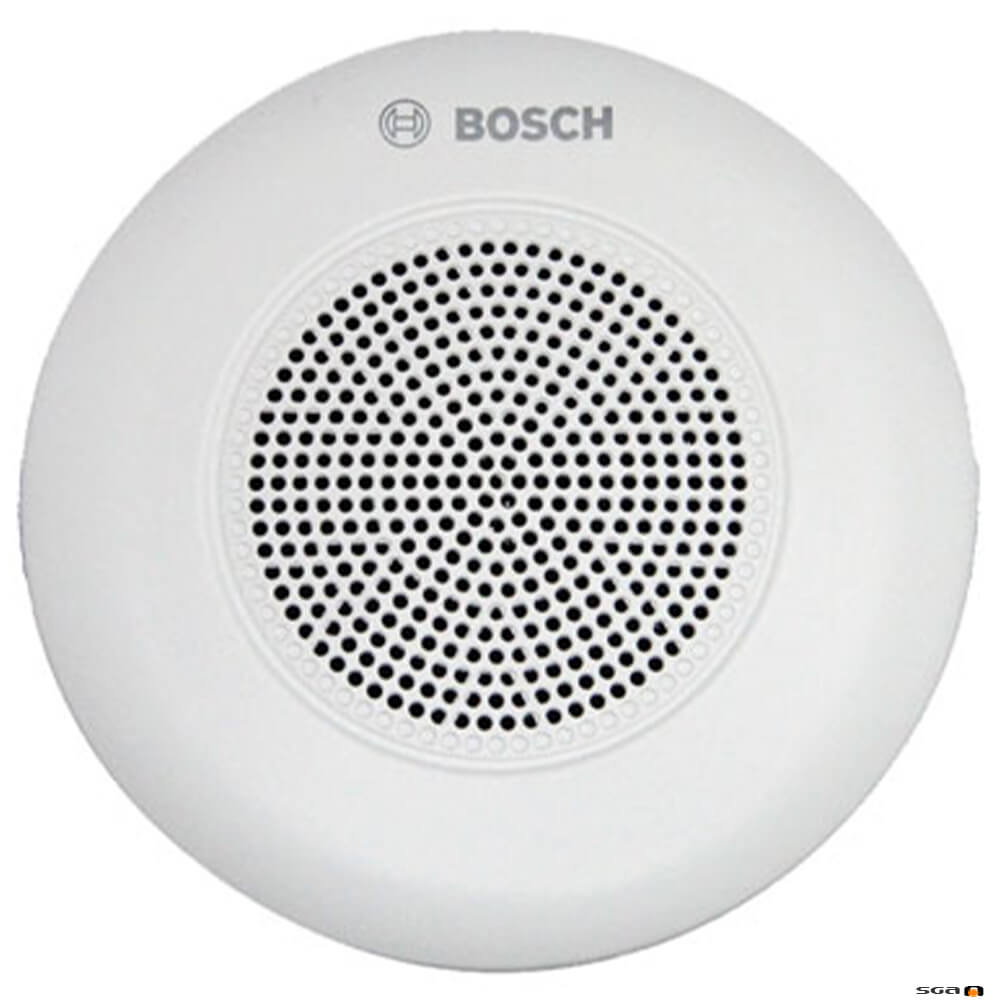

Bosch LC5-WC06E4

Bosch LC5-WC06E4 2.5″ 6W ceiling speaker with an integrated multi-tap transformer designed for 70V, 100V, or 8-ohm.

$49.50 $46.00

In Stock



SKU: LC5-WC06E4 Category: Tag:

Description

Bosch LC5-WC06E4 ceiling speaker with an integrated multi-tap transformer designed for 70V, 100V, or 8-ohm operation in offices, retail environments, restaurants, and more. Its broad 180° conical dispersion enables greater coverage with fewer speakers.

Bosch LC5-WC06E4 ceiling speaker has a 2″ full-range driver that can handle 6W RMS. The LC5-WC06E4 is an ultra compact speaker capable of producing a maximum SPL of 90 dB and a frequency range of 85 Hz to 20 kHz, allowing it to serve speech and music reproduction needs.

The screw terminal connectors and included ceiling cut-out template ensure ease of installation. When combined with the optional LC5-CBB back box, the LC5-WC06E4 is well suited for use in environments with exposure to humidity, chlorine, and salt (IP44 rated)

Features

  • Ultra compact form factor
  • 2″ full-range driver
  • 180° coverage
  • Integrated multi-tap transformer allows 70V, 100V, or 8-ohm operation
  • EN 54-24 certified

Specification

Active or Passive Passive
Number of Included Speakers 1
Speaker Configuration Full-Range
Power Handling 9 W Peak
6 W RMS
Constant Voltage / Transformer Taps 70 V / 100 V:
6 / 3 / 1.5 / 0.75 W or 8 Ohms Bypass
Impedance 8 Ohms
Transformer Wattage 6 W
Enclosure Type Open-Back
Shielded No
Drivers
Full-Range Driver 1 x 2″ / 5.08 cm
Performance
Frequency Range 85 Hz to 20 kHz -10 dB
Maximum SPL 90 dB SPL
Coverage Angle 180° (Conical)
Connectivity
I/O Connectors 2 x Screw Terminal 2-Pole Speaker Input
Maximum Wire Gauge 2 mm
Environmental
Water / Weather Resistance None
IP Rating None
Operating Temperature -13 to 131°F / -25 to 55°C
Operating Humidity 95%
Physical
Color White
Mounting In-Ceiling
Cutout Size 3 x 3″ / 76 x 76 mm
Mount Surface Thickness 0.2″ / 5 mm to 1″ / 25 mm
Construction Material ABS
Dimensions 3.46 x 3.07″ / 88 x 78 mm
Weight 13.9 oz / 395 g
Packaging Info
Package Weight 1 lb
Box Dimensions (LxWxH) 4.5 x 4.5 x 4.5″

Downloads

Bosch_LC5-WC06E4
