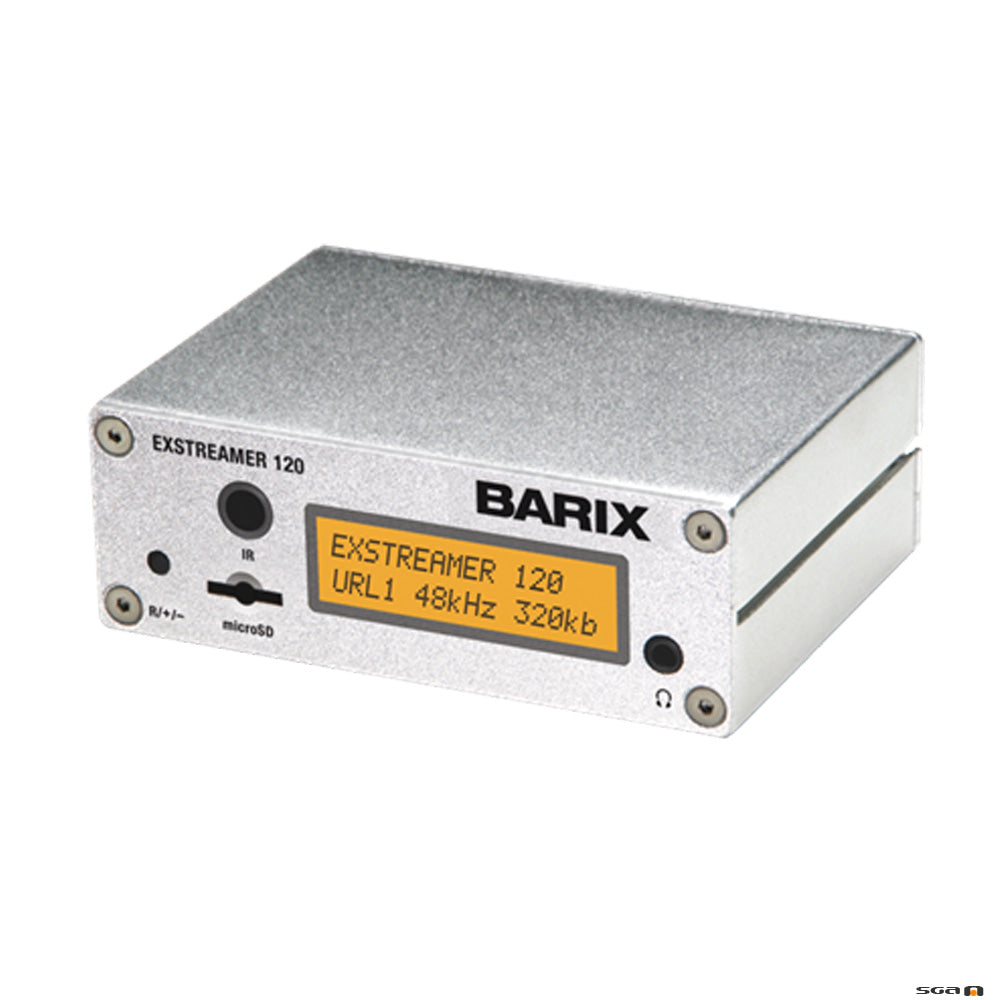

Barix Extreamer 120

Barix Exstreamer 120 audio decoder with SD card storage, relay and display

$540.55

In Stock



SKU: BX-BAR20109103 Category: Tag:

Description

The Barix Exstreamer 1oo series family of products decode IP Audio streams and play out the received Audio signal to amplifiers.

Supporting a large number of protocols, encoding methods and application specific firmware, the products can be used for Broadcast, Internet Radio, as well as VoIP applications.

Control and local storage interfaces are device specific to match different use cases.

Designed in Switzerland and installed in tens of thousands of locations worldwide, the Barix Exstreamer series is the established standard for Instore Radio, Internet Radio, Entertainment and Broadcast applications alike.

APPLICATIONS

  • Multiroom IP Audio System Receiver
  • Internet Radio Receiver
  • Instore Audio Player
  • SIP and IP Paging Zone Device
  • Digital Annunciator, Message Player, Message Repeater
  • Generic VoIP decoder for IP Paging and Announcement applications
  • Commercial Audio Streaming Applications

Features

  • AACplus, MP3, Ogg Vorbis, G.711, PCM linear Decoding
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Line Level Output (Stereo)
  • Relay Output (Ex110 & Ex120 only)
  • RS-232 Serial Port
  • Power Supply (9-30 VDC, 12-24 VAC, plug included)
  • IR receiver and Display built-in (Ex110 & Ex120 only)
  • MicroSD or USB Flash Interface

Specifications

ELECTRICAL

9 to 30 VDC, 12 to 24 VAC, 6 Watt max.

2.1mm barrel connector

ETHERNET

10/100Mbps auto,

RJ-45 connector with integrated Link/Activity LED

Protocols: TCP/IP, UDP, RTP, SIP, DHCP,

ANALOG OUTPUT

Line level output, 40..60 Ohm output impedance on RCA and 1/8″ headphone jack. Output level software controllable

Full scale output voltage: 5.6 dBu, 4 Vpp

Frequency response (-3dB) 19Hz ..22kHz *

Dynamic range 87 dB

SNR/THD -87 dB, <0.05%

AUDIO FORMATS

MP3 CBR/VBR, up to 320kbps, 8..48kHz sample freq.

AAC, AAC plus, AAC-HE (AAC plus V2)

WMA (up to version 9), Ogg Vorbis

PCM 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz

G.711, uLaw, aLaw (sample rates same as PCM)

DISCRETE I/O

1 NO relay contact, 24V 0.5A (110&120 models only)

RS-232 INTERFACE

300..230’400 Baud asynchronous, tunneling or local control

DISPLAY

Backlit LCD, 2×16 chars (110&120 models only)

IR INTERFACE

IR via serial port, built-in IR receiver (110&120 models only)

IR remote control included with Exstreamer 110 & 120

MECHANICAL

Aluminum case, 250g, rack and wall mountable using accessories

DIMENSIONS (W X H X D)

108x38x78.7mm (4.25×1.5×3.1 inch)

MODEL COMPARISON

Model 100 Memory USB, IR use kit

Model 105 Memory MicroSD, IR use kit

Model 110 Display 2×16, Memory USB, Relay

Model 120 Display 2×16, Memory MicroSD, Relay

MTBF

Calculated acc. MIL217F at 25°C

Exstreamer 100 min. 480 000h

Exstreamer 105 min. 460 000h

Exstreamer 110 min. 450 000h

Exstreamer 120 min. 430 000h

* depends on used codec, best results @48kHz PCM

** high quality A/D supports only certain sample rates
