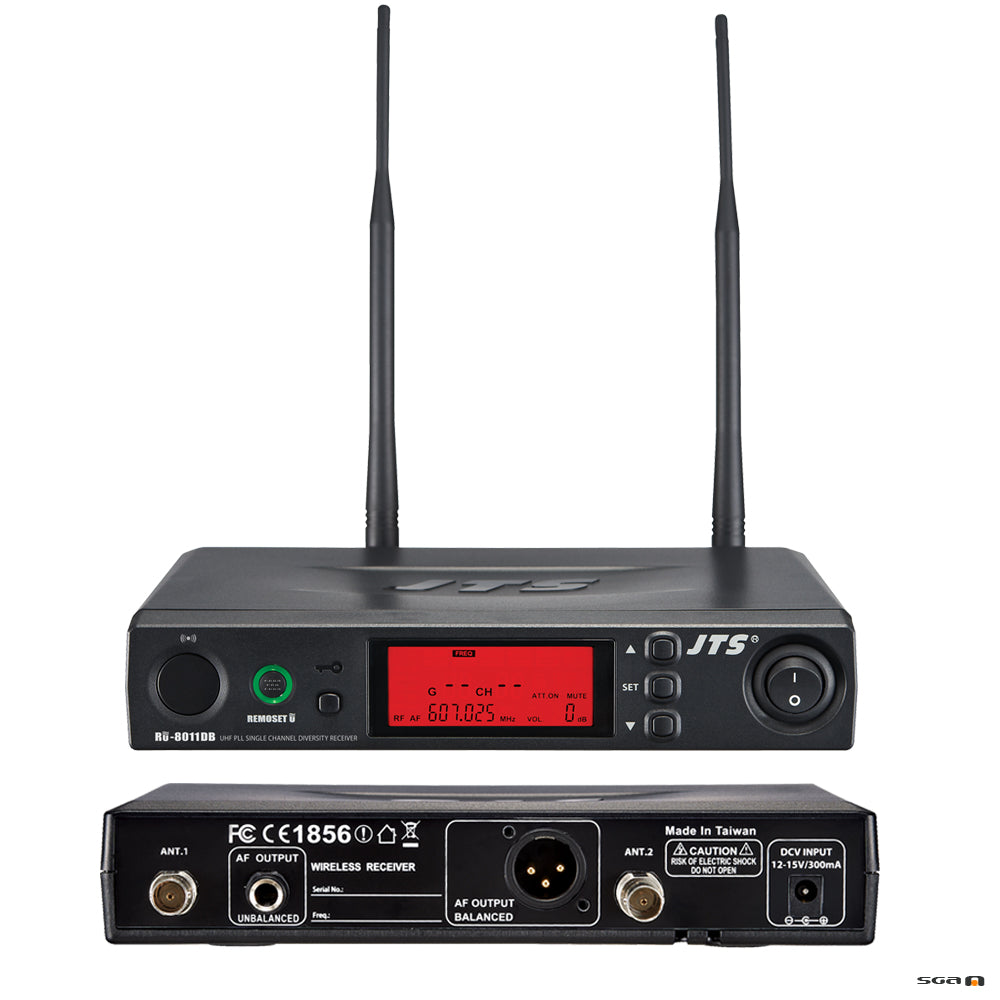

JTS RU-8011DB

JTS RU-8011DB receiver. Choose your transmitter.
Regular price $314.10
Regular price $349.00 Sale price $314.10
inc. GST Shipping calculated at checkout.
Enquire Delivery Charges
Regular price $314.10
Regular price $349.00 Sale price $314.10

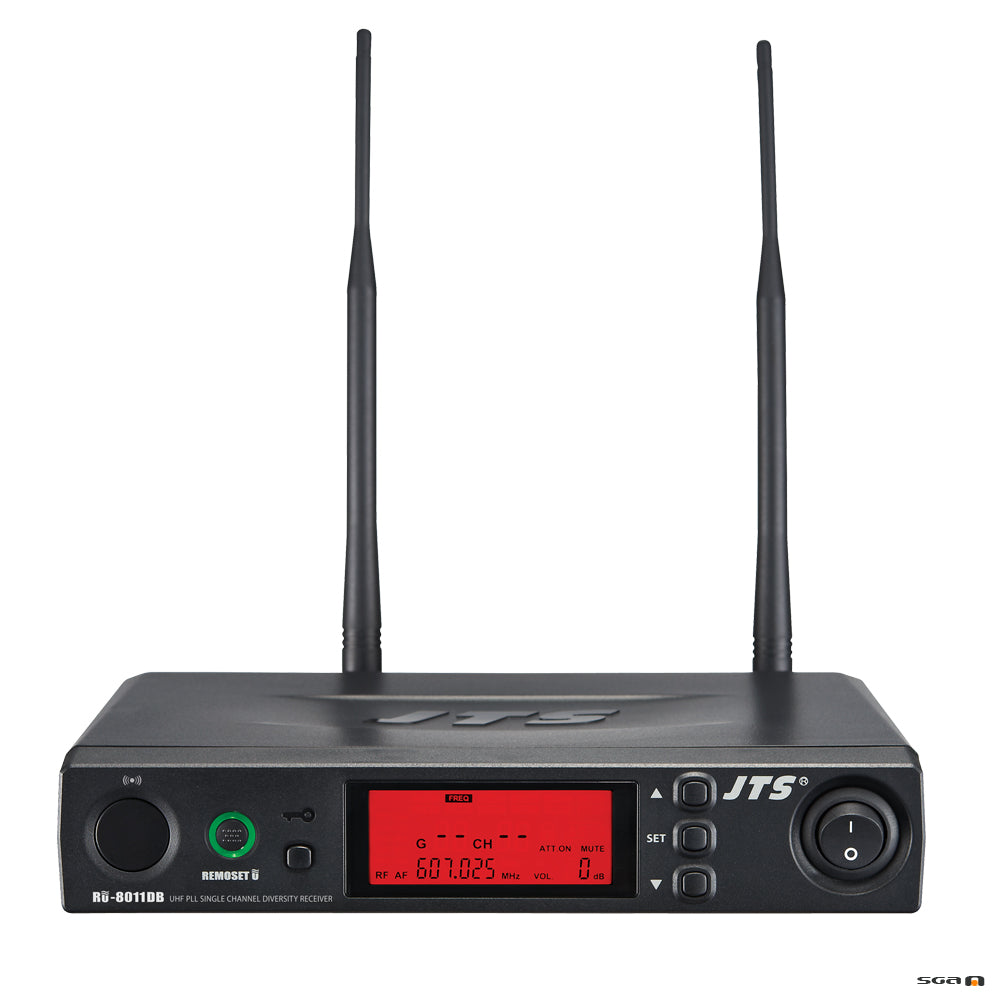

The best selling RU-8011DB offers a feature rich solution at a fantastic price. The large LED display shows all of the important information required to guarantee rock solid RF. The REMOSET technology allows the Scanned channel to be sent to the receiver with the touch of a button.

This system is available in both the 638-674 MHz and the 520-556 MHz range. To check if these frequencies operates best in your area please use the ACMA Channel Finder at http://channelfinder.acma.gov.au/.


  • 6 groups are provided as default. Every group contains up to 22 default channels.

  • There are in total 1,440 channels to choose from to avoid noise or add extra units.

  • 36MHz extra wide bandwidth for exceptional reception quality up to 16KHz.

  • The patented ultrasonic pairing for synchronized setting of all parameters.

  • Channel scan. Adjustable receiving sensitivity. Digital volume control.

  • Includes receiver and one microphone, either hand-held or belt unit and lapel mic.

  • Automatic microphone power off


  • Frequency Preparation: PLL Synthesized Control

  • Carrier Frequency Range: 520-556 MHz or 638-674 MHz

  • Frequency Setting: REMOSET U

  • Receiving Mode: Antenna Diversity

  • Bandwidth: 36MHz

  • S/N Ratio: >105dB(A)

  • T.H.D: <0.6%@1KHz

  • Sensitivity: -95dBm,S/N>80dB

  • Rejection Ratio: >80 dB

  • Frequency Response: 50Hz~16KHz±2dB

  • Antenna Type: BNC Socket

  • Antenna Booster Power: DC12~15V/100mA

  • Display: LCD

  • Display Contents: Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume

  • Controls: Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuation(XLR), Frequency Scan(ON/OFF)

  • Audio Output Level:

    • Ref/ ±22.5KHz Dev@1KHz Tone

    • ψ6.3 Phone Jack/ -10dBV

    • XLR Jack/ -4dBV(Line) Ë´ -24dBV(MIC)



  • Audio Output Impedance: 600Ω

  • Squelch: Pilot Tone & Noise Mute

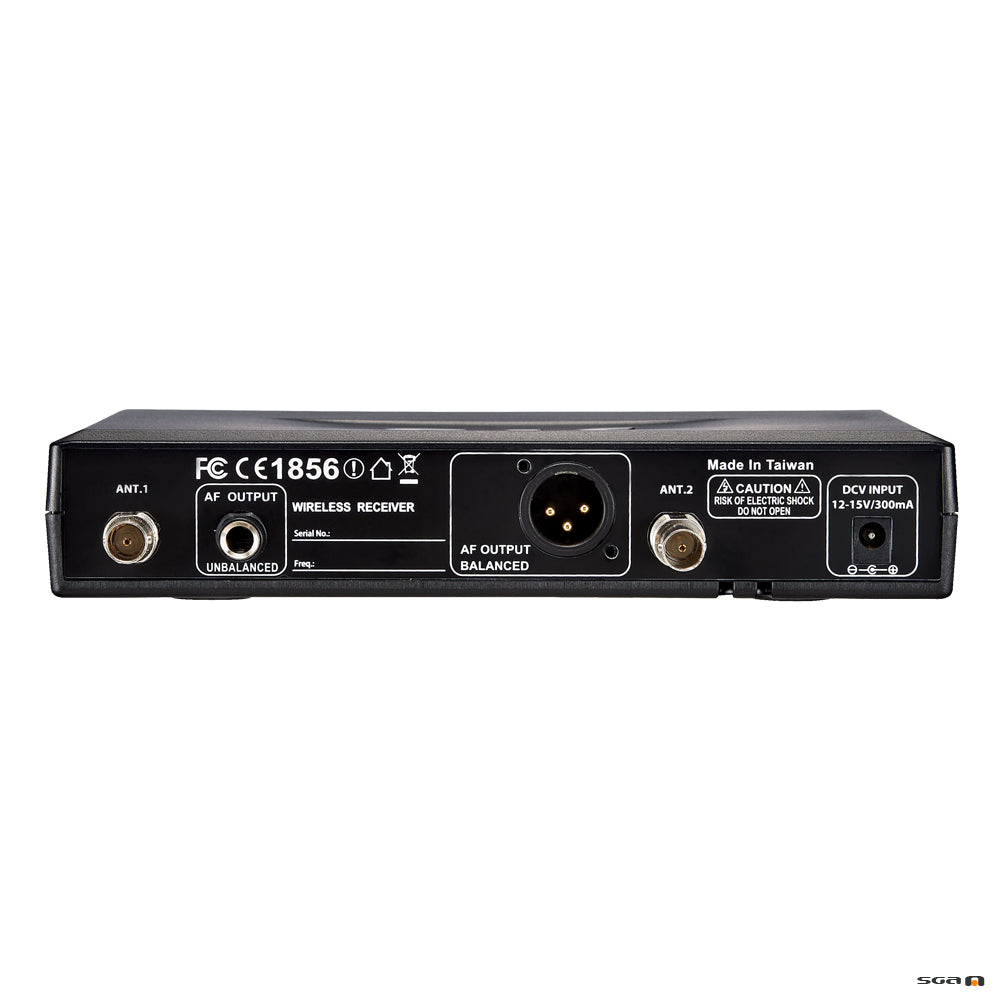

  • Output Connector: 1 independent balanced XLR and one Ø6.3mm unbalanced.

  • Power Supply: DC12~15V/300mA

  • Dimension (WxHxD): 212.3mm x 38.3mm x 144mm


Note: Actual product specifications may vary depending on region

Related Products


  • JTS 8012DBKITBB

    JTS 8012DBKITBB

    JTS RU-8012DB dual channel receiver with 2 x beltpack transmitters and CM 501 lapel microphones.

    Regular price $865.00
    Regular price $1,029.00 Sale price $865.00
  • JTS 8012DBKITH

    JTS 8012DBKITH

    JTS RU-8012DB dual channel receiver with 1 x handheld wireless microphone and 1 x beltpack transmitter and CM 501 lapel microphone.

    Regular price $865.00
    Regular price $1,029.00 Sale price $865.00
  • JTS 8012DBKITHH

    JTS 8012DBKITHH

    JTS RU-8012DB dual channel receiver with 2 x wireless handheld transmitters.

    Regular price $865.00
    Regular price $1,029.00 Sale price $865.00
  • JTS CM125IB

    JTS CM125IB

    Submini lapel mic - black with 4-pin mini-XLR

    Regular price $233.10
    Regular price $259.00 Sale price $233.10
  • JTS CM501Hi

    JTS CM501Hi

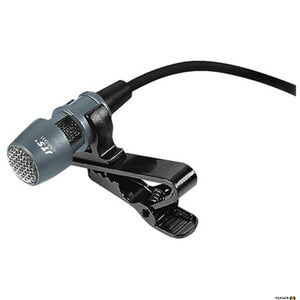

    CM501HI Lapel microphone hi-gain condenser 4-pin mini XLR black
