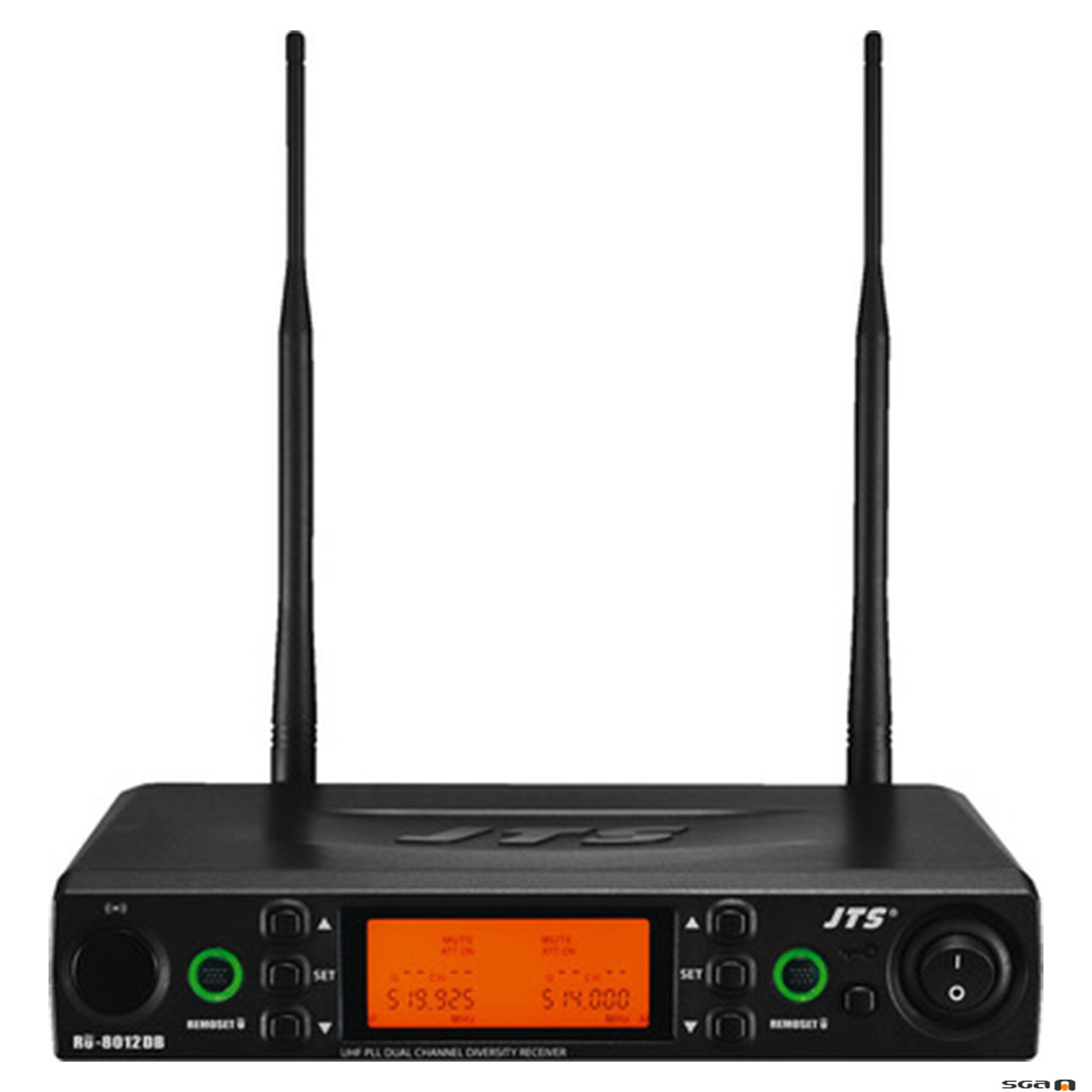

JTS RU-8012DB 2 channel receiver. Choose your transmitter.
This system is available in both the 638-674 MHz and the 520-556 MHz range. To check if these frequencies operates best in your area please use the ACMA Channel Finder at http://channelfinder.acma.gov.au/.
JTS 2nd generation wireless technology. To cope with the squeezed radio spectrum, the system provides more compatible channels within the limited bandwidth. REMOSET function synchronises the receiver to the transmitter by the push of a button. To meet critical audio demand; general noise and hiss have been reduced to an extremely low level. 100 metre operation range meets the demand from most applications. Matched with premium pickups provide excellence in audio.
Note: Please select your frequency -638-674 MHz or 520-556 MHz range.
- JTS “Antenna diversity” Two antennas are used, spaced a few inches apart, each receiving the same signal from the transmitter. The receiver constantly measures the signal strength coming from both antennas, and switches to whichever antenna is picking up the stronger signal.
- 6 groups, each with up to 22 compatible preset channels
- 1,441 selectable individual frequencies
- REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
- Auto-Scan function
- Pilot tone squelch and noise mute
- Backlit LCD display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level
- 2 x XLR output (balanced.) and 2 x 6.3 mm TS Jack output (unbalanced.)
- Removable BNC Antennas
- Half Rack size with optional rack kits available.
- Optional rechargeable Station with rechargeable batteries is available (G3CH-2)
- Available in 638-674 MHz and the 520-556 MHz range
| Frequency Preparation | PLL Synthesized Control |
| Carrier Frequency Range | 470~960 MHz |
| Frequency Setting | Ultrasonic / REMOSET (Transmit) |
| Receiving Mode | Antenna Diversity |
| Bandwidth | 36MHz |
| S/N Ratio | > 105dB |
| T.H.D | <0.6%@1KHz |
| Sensitivity | -95dBm,S/N>80dB |
| Rejection Ratio | >80 dB |
| Frequency Response | 50Hz~16KHz±2dB |
| Antenna Type | BNC Socket |
| Antenna Booster Power | DC12~15V/100mA |
| Display Contents | Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter, RF Meter, Battery Status |
| Display | LCD |
| Controls | Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad |
| Audio Output Level | Ref/ ±22.5KHz Dev@1KHz Tone ψ6.3 Phone Jack/ -10dBV XLR Jack/ -4dBV(Line) . -24dBV(MIC) |
| AF Output Impedance | 600Ω |
| Squelch | Pilot Tone, Noise and Mute |
| Output Connector | 2 independent balanced XLR and 2 Ø6.3mm unbalanced. |
| Power Supply | DC12~15V/500mA |
| Dimension(m/m) | 212.3mm(W)* 38.3mm(H)* 144mm(D) |
