JTS 8012DBKITH

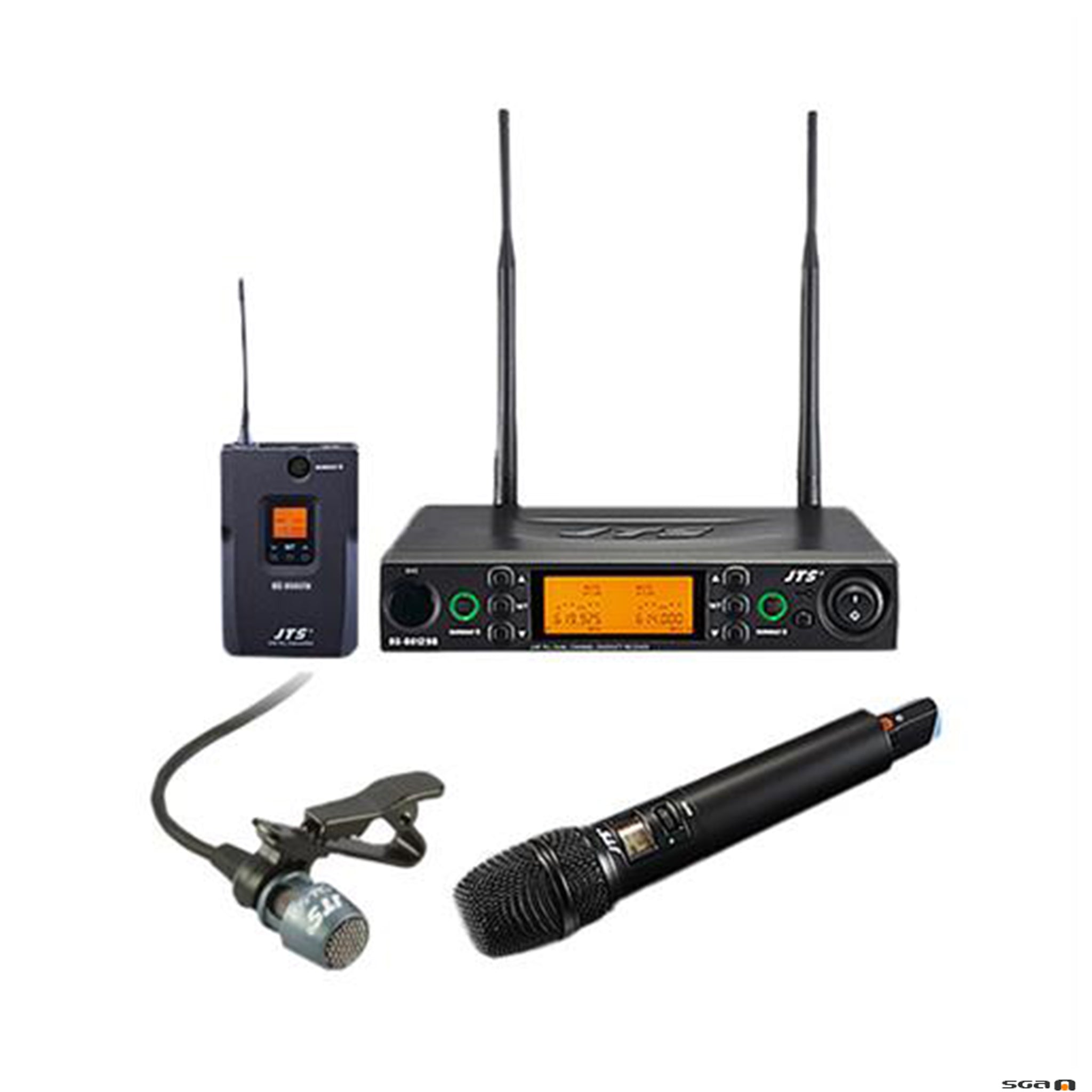

JTS RU-8012DB dual channel receiver with 1 x handheld wireless microphone and 1 x beltpack transmitter and CM 501 lapel microphone.

Regular price $865.00
Regular price $1,029.00 Sale price $865.00
inc. GST Shipping calculated at checkout.
Enquire Delivery Charges
Regular price $865.00
Regular price $1,029.00 Sale price $865.00

JTS RU-8012DB 2 channel receiver with 1 x handheld wireless microphone and 1 x beltpack transmitter and CM 501 lapel microphone.

This system is available in both the 638-674 MHz and the 520-556 MHz range. To check if these frequencies operates best in your area please use the ACMA Channel Finder at http://channelfinder.acma.gov.au/.

JTS 2nd generation wireless technology. To cope with the squeezed radio spectrum, the system provides more compatible channels within the limited bandwidth. REMOSET function synchronises the receiver to the transmitter by the push of a button. To meet critical audio demand; general noise and hiss have been reduced to an extremely low level. 100 metre operation range meets the demand from most applications. Matched with premium pickups provide excellence in audio.

Note: Please select your frequency -638-674 MHz or 520-556 MHz range.


  • JTS “Antenna diversity” Two antennas are used, spaced a few inches apart, each receiving the same signal from the transmitter. The receiver constantly measures the signal strength coming from both antennas, and switches to whichever antenna is picking up the stronger signal.

  • 6 groups, each with up to 22 compatible preset channels

  • 1,441 selectable individual frequencies

  • REMOSET ULTRASONIC technology for receiver/transmitter synchronisation

  • Auto-Scan function

  • Pilot tone squelch and noise mute

  • Backlit LCD display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level

  • 2 x XLR output (balanced.) and 2 x 6.3 mm TS Jack output (unbalanced.)

  • Removable BNC Antennas

  • Half Rack size with optional rack kits available.

  • Optional rechargeable Station with rechargeable batteries is available (G3CH-2)

  • Available in 638-674 MHz and the 520-556 MHz range

Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960 MHz
Frequency Setting Ultrasonic / REMOSET (Transmit)
Receiving Mode Antenna Diversity
Bandwidth 36MHz
S/N Ratio > 105dB
T.H.D <0.6%@1KHz
Sensitivity -95dBm,S/N>80dB
Rejection Ratio >80 dB
Frequency Response 50Hz~16KHz±2dB
Antenna Type BNC Socket
Antenna Booster Power DC12~15V/100mA
Display Contents Group, Channel, Frequency, Antenna A/B, Mute Display,
AF Meter, RF Meter, Battery Status
Display LCD
Controls Power On/Off, Group, Channel, Frequency Up/Down, Frequency
Scan, Audio Level, Lock-on, Output Pad
Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone
ψ6.3 Phone Jack/ -10dBV
XLR Jack/ -4dBV(Line) . -24dBV(MIC)
AF Output Impedance 600Ω
Squelch Pilot Tone, Noise and Mute
Output Connector 2 independent balanced XLR and 2 Ø6.3mm unbalanced.
Power Supply DC12~15V/500mA
Dimension(m/m) 212.3mm(W)* 38.3mm(H)* 144mm(D)
