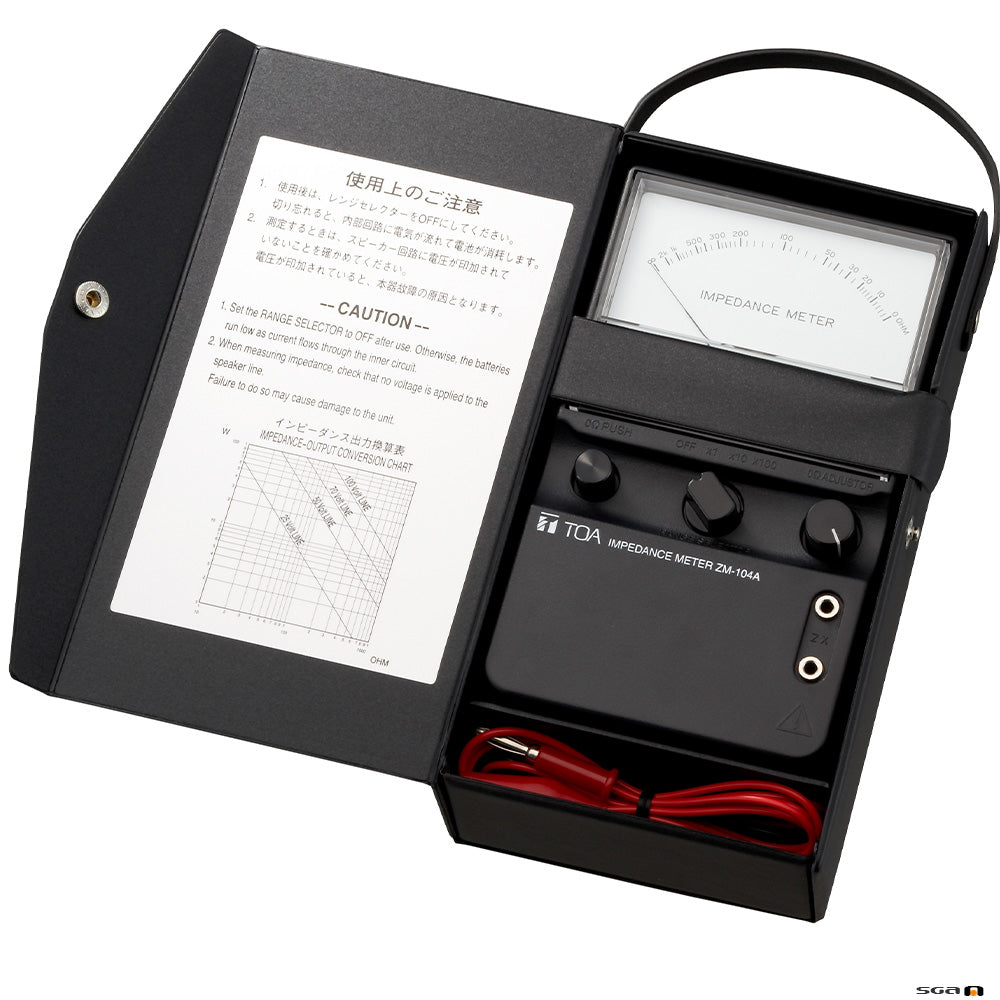

The ZM-104A from TOA is a portable impedance meter that can measure the impedance of speaker lines up to 100 k ohms.
It has an adjustable zero for accuracy on all ranges. It runs on four AA batteries and has an easy-to-read meter that calibrates directly in ohms.
It includes a carrying case, test leads, and impedance-to-power reference chart
| Power Source | R6 × 4 (1.5 V DC × 4) |
|---|---|
| Current Consumption | 39 mA |
| Reading | Direct reading meter, unit: Ω |
| Measurement Range | × 1 range: 5 Ω - 1 kΩ × 10 range: 50 Ω - 10 kΩ × 100 range: 500 Ω - 100 kΩ |
| Oscillation Frequency | 1 kHz, ±10 % |
| Battery Life When Continuously Used | × 1 range: 30 h × 10 range and × 100 range: 60 h |
| Operating Temperature | -5 ℃ to +40 ℃ (23 ゜F to 104 ゜F) |
| Dimensions | 122 (W) × 222 (H) × 70 (D) mm (4.80" × 8.74" × 2.76") (carrying case) 110 (W) × 180 (H) × 58 (D) mm (4.33" × 7.09" × 2.28") (unit only) |
| Finish | ABS resin, black |
| Weight | 730 g (1.61 lb) (including carring case, without batteries) |
| Accessory | Test leads …1 set |
| Measurement Category | CAT I |
