TOA WT5805PTH

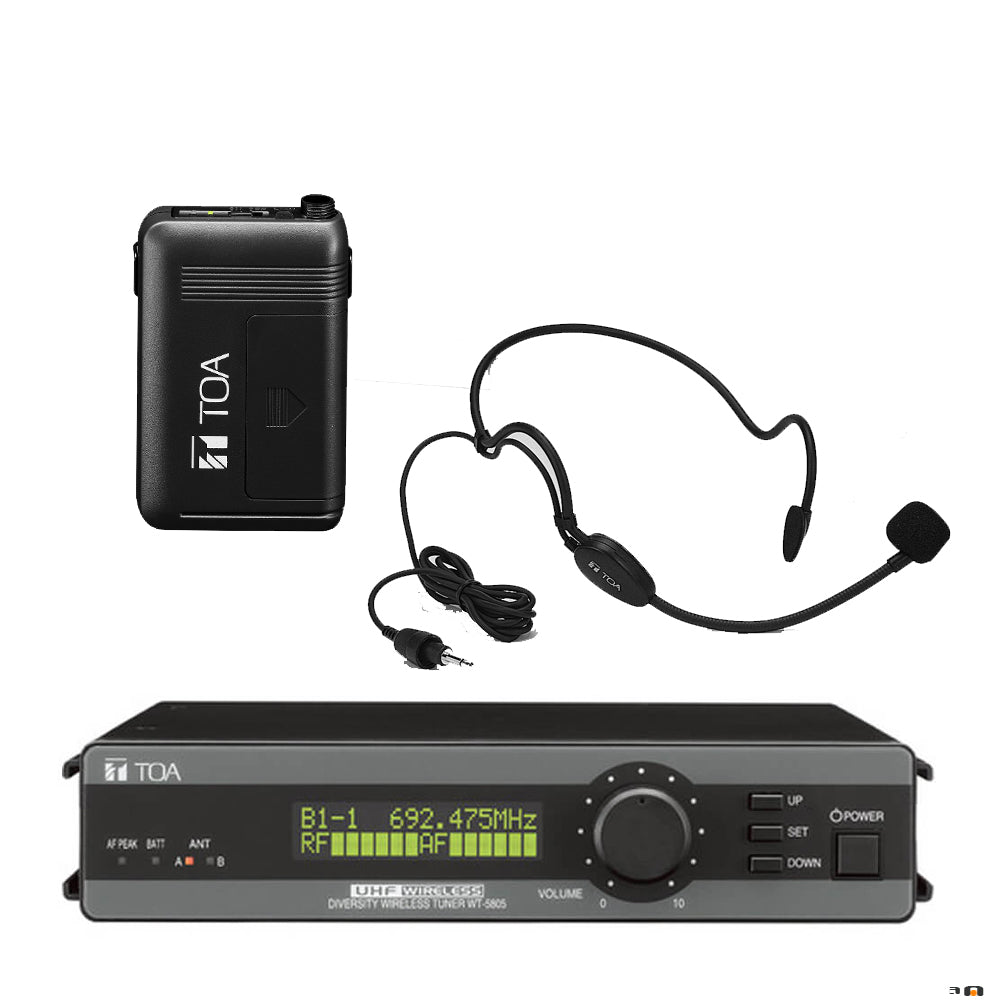

TOA WT5805PTH UHF Diversity Wireless Receiver w/ WM5325 Beltpack Transmitter, WH4000H Head Set Microphone.
Regular price
$1,106.11
Regular price
$1,229.00
Sale price
$1,106.11
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$1,106.11
Regular price
$1,229.00
Sale price
$1,106.11

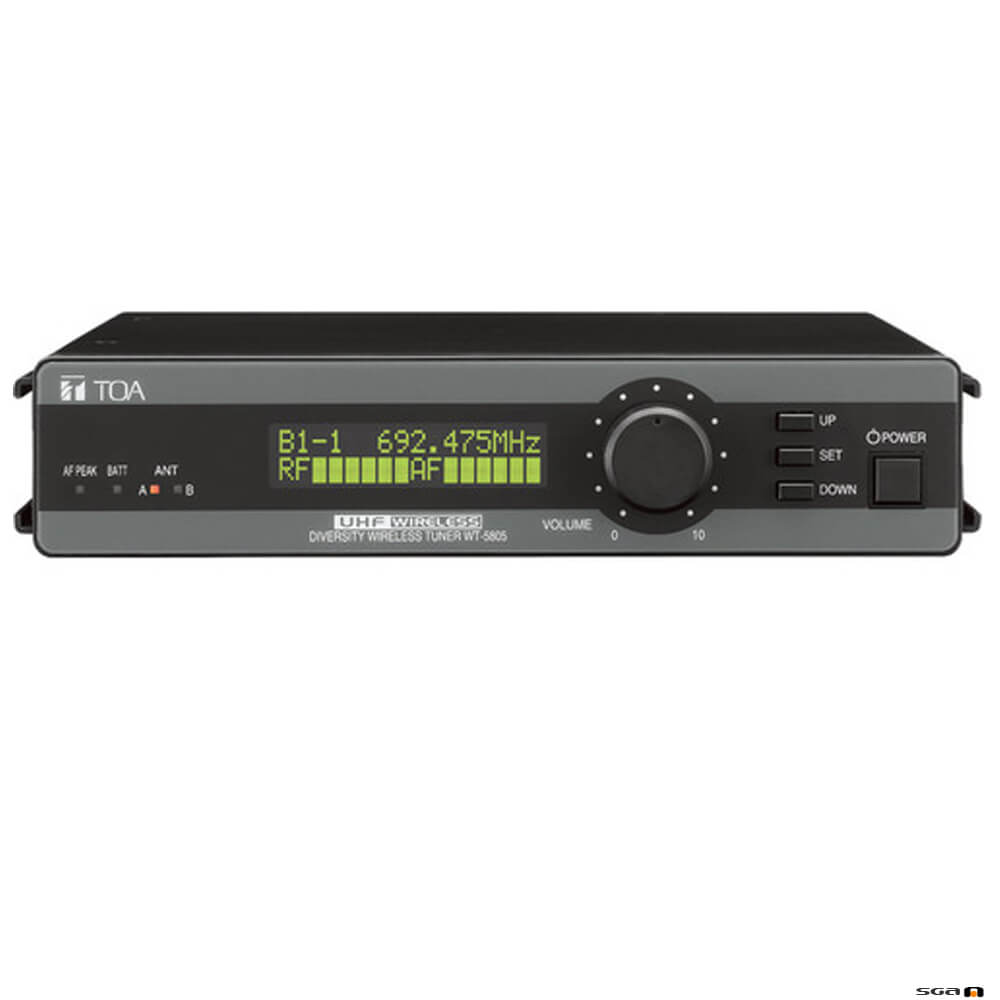

TOA WT5805PTH is a 64 channel UHF diversity wireless microphone receiver designed for use with the TOA 5000 series wireless microphone system.
Launch into the world of reliable TOA wireless microphone systems. Designed for use with a range of wireless handheld microphones, to lapels, to headsets.
The receiver features a half-rack space or surface mounted unit that features 64 UHF selectable frequencies, automatic channel detection, radio frequency scan (RF check), an intuitive control panel and a large LCD. Balanced XLR and unbalanced 1/4" phone connections are located on the rear. BNC antenna inputs and outputs are provided, and the receiver may be used for distributing radio signal to additional receivers. Rack mountable.
Wireless Microphones?work on radio frequencies that enable the sound to travel through a transmitter to a receiver. Wireless Microphones are cable free. No need for annoying cables.
Wireless Microphone systems are ideal for a variety of applications ? everyone from stage performers to reporters to educators.
Package Includes: The price listed here is for the TOA WT5805PTH w/ WM5325 Beltpack, and WH4000H Head Set Microphone. Available in the following bands;
636-666MHz
Options Available:
True Diversity Kits Available
WT5805HTPD 64 Channel Receiver WT5805 w/ WM5270 Handheld Dynamic Vocal Microphone
WT5805HTD 64 Channel Receiver WT5805 w/ WM5265 Handheld Dynamic Microphone
WT5805HTC 64 Channel Receiver WT5805 w/ WM5225 Handheld Electret Condenser Microphone
WT5805PTU 64 Channel Receiver WT5805 w/ WM5325 Beltpack Transmitter, YPM5300 Uni directional Lapel Microphone
WT5805PTM 64 Channel Receiver WT5805 w/ WM5325 Beltpack Transmitter, YPM5310 Omni directional Lapel Microphone
WT5805PTH 64 Channel Receiver WT5805 w/ WM5325 Beltpack Transmitter, WH4000H Head Set Microphone
Launch into the world of reliable TOA wireless microphone systems. Designed for use with a range of wireless handheld microphones, to lapels, to headsets.
The receiver features a half-rack space or surface mounted unit that features 64 UHF selectable frequencies, automatic channel detection, radio frequency scan (RF check), an intuitive control panel and a large LCD. Balanced XLR and unbalanced 1/4" phone connections are located on the rear. BNC antenna inputs and outputs are provided, and the receiver may be used for distributing radio signal to additional receivers. Rack mountable.
Wireless Microphones?work on radio frequencies that enable the sound to travel through a transmitter to a receiver. Wireless Microphones are cable free. No need for annoying cables.
Wireless Microphone systems are ideal for a variety of applications ? everyone from stage performers to reporters to educators.
Package Includes: The price listed here is for the TOA WT5805PTH w/ WM5325 Beltpack, and WH4000H Head Set Microphone. Available in the following bands;
636-666MHz
Options Available:
True Diversity Kits Available
WT5805HTPD 64 Channel Receiver WT5805 w/ WM5270 Handheld Dynamic Vocal Microphone
WT5805HTD 64 Channel Receiver WT5805 w/ WM5265 Handheld Dynamic Microphone
WT5805HTC 64 Channel Receiver WT5805 w/ WM5225 Handheld Electret Condenser Microphone
WT5805PTU 64 Channel Receiver WT5805 w/ WM5325 Beltpack Transmitter, YPM5300 Uni directional Lapel Microphone
WT5805PTM 64 Channel Receiver WT5805 w/ WM5325 Beltpack Transmitter, YPM5310 Omni directional Lapel Microphone
WT5805PTH 64 Channel Receiver WT5805 w/ WM5325 Beltpack Transmitter, WH4000H Head Set Microphone
- Compact half-rack size
- Scanner function
- Transmitter battery status display
- 64 selectable channels
- diversity reception
- Two detachable antennas
- Optional Rack-Mount Kits -MB-WT3, MB-WT4
- MB-WT3 One WT-5800/WT-5805)
- MB-WT4 Two WT-5800/WT-5805)
- WH4000H Head Microphone- Electret condenser type
Directivity Unidirectional
Sensitivity -66 dB ±3 dB (0 dB = 1 V/0.1 Pa, 1 kHz)
Maximum Input Level 120 dB SPL
Cord Length 1.3 m
Terminal φ3.5 mm monaural plug
Finish Frame: Stainless, black (silicon rubber)
Gooseneck: Black (shrink tube)
Weight 50 g (cable included)
| Power Source | AC mains (supplied AC adapter must be used) |
|---|---|
| Power Consumption | 200 mA (12 V DC) |
| Receiving Frequency | 636-666MHz |
| Channel Selectable | 64 selectable frequencies |
| Receiving System | Double super-heterodyne |
| Diversity System | Space diversity |
| Mixing Output | MIC/LINE (selectable): -60 dB (*1) (MIC)/-20 dB (*1) (LINE), 600 Ω phone jack (unbalanced), 600 Ω XLR-3-32 type connector (balanced) |
| Mixing Input | -20 dB (*1), 10 kΩ, unbalanced, phone jack |
| Antenna Input | 75 Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max) |
| Receiving Sensitivity | 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation) |
| Squelch Sensitivity | 16 - 40 dBμV variable |
| Squelch System | Using together of noise SQ, carrier SQ and tone SQ |
| Tone Frequency | 32.768 kHz |
| Indicator | Audio (6 steps), RF (6 steps), ANT A/B, Audio (peak), Battery alarm |
| Channel Check | Usable frequencies scanning |
| Signal to Noise Ratio | 110 dB or more (A-weight, unbalanced output) |
| Harmonic Distortion | 1 % or less (typical) |
| Frequency Response | 100 Hz - 15 kHz, ±3 dB |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| Operating Humidity | 30 % to 85 %RH (no condensation) |
| Finish | Resin, black |
| Dimensions | 210 (W) × 44 (H) × 205.1 (D) mm (8.27" × 1.73" × 8.07") |
| Weight | 700 g (1.54 lb) |
| Accessory | AC adapter (*3)…1, Whip antenna…2, Rubber foot…4 |
| Option | Mounting bracket kit: MB-WT3 (for rack mounting one WT-5805 unit) MB-WT4 (for rack mounting two WT-5805 units) |
