TOA PJ304
PJ304 30 Watt 5" 2-way Projection Speaker 100 Volt line or 8Ω selectable
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $30 | Express Post / Post / Road |
| $301 to $500 | $35 | Express Post / Post / Road |
| $501 to $1000 | $40 | Express Post / Post / Road |
| $1001 to $2500 | $45 |
Express Post / Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, TAS, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $15.00 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
LECTERNS
All lectern freight charges will need to be quoted. Our regular freight charges online will not apply.
**WE DO NOT SHIP OVERSEAS**

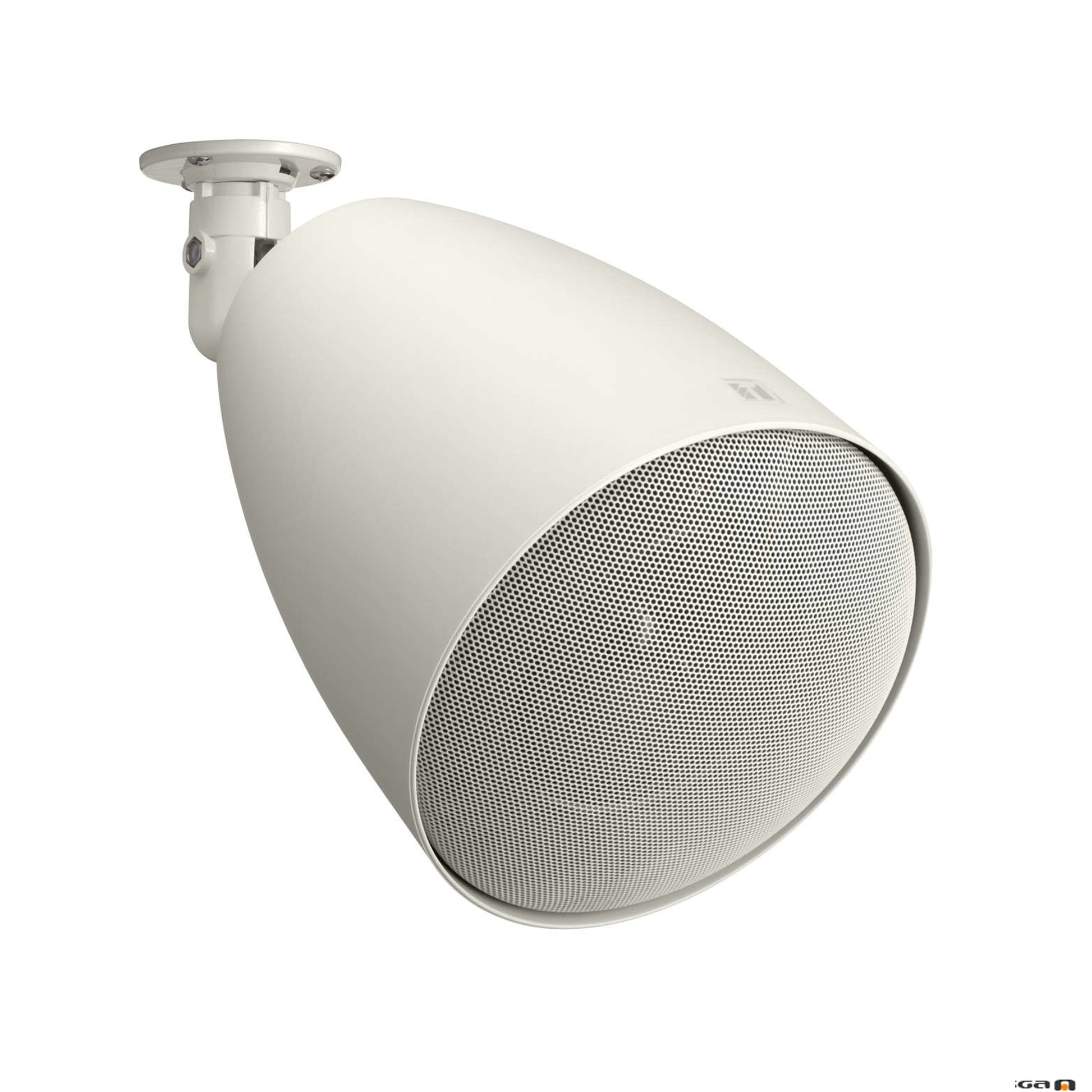

The PJ-304 is a projection speaker designed for ceiling and wall installations.
Considered in architectural design, it can blend in with lighting equipment.
The supplied swivel bracket allows for flexible speaker angle adjustment.
The PJ-304 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 OHM) lines.
The input power (impedance) can be easily changed at the upper side of the speaker.
The speaker is easy to repaint so as to meet a wide range of design needs
- Stylish and outstanding design inspired by the finest lighting fixtures
- Flexible speaker direction adjustment with accessory brackets
- Repaintable
- Input impedance easily changeable
- Bass-reflex type
Specifications for product:
| PJ-304 | PJ-64 | |
|---|---|---|
| Frequency response |
70 Hz - 20 kHz |
100 Hz - 18 kHz |
| Sensitivity (1 W, 1 m) |
91 dB |
90 dB |
| Rated input (100 V) |
30 W |
6 W |
| Tappings (100 V) |
100 V : 330 Ω (30 W) / 500 Ω (20 W) / 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W) 70 V : 170 Ω (30 W) / 250 Ω (20 W) / 330 Ω (15 W) / 500 Ω (10 W) / 1 kΩ (5 W) Low impedance: 8 Ω |
100 V : 1.7 kΩ (6 W) / 3.3 kΩ (3 W) / 10 kΩ (1 W) 70 V : 830 Ω (6 W) / 1.7 kΩ (3 W) / 3.3 kΩ (1.5 W) / 10 kΩ (0.5 W) |
| Speaker component |
12 cm cone-type + balanced dome tweeter |
12 cm cone-type |
| Dimensions |
186 x 369 mm (Ø x H) |
186 x 369 mm (Ø x H) |
| Finish |
HIPS resin, off-white (RAL 9010 or equivalent) |
HIPS resin, off-white (RAL 9010 or equivalent) |
| Weight |
2.1 kg |
1.5 kg |
