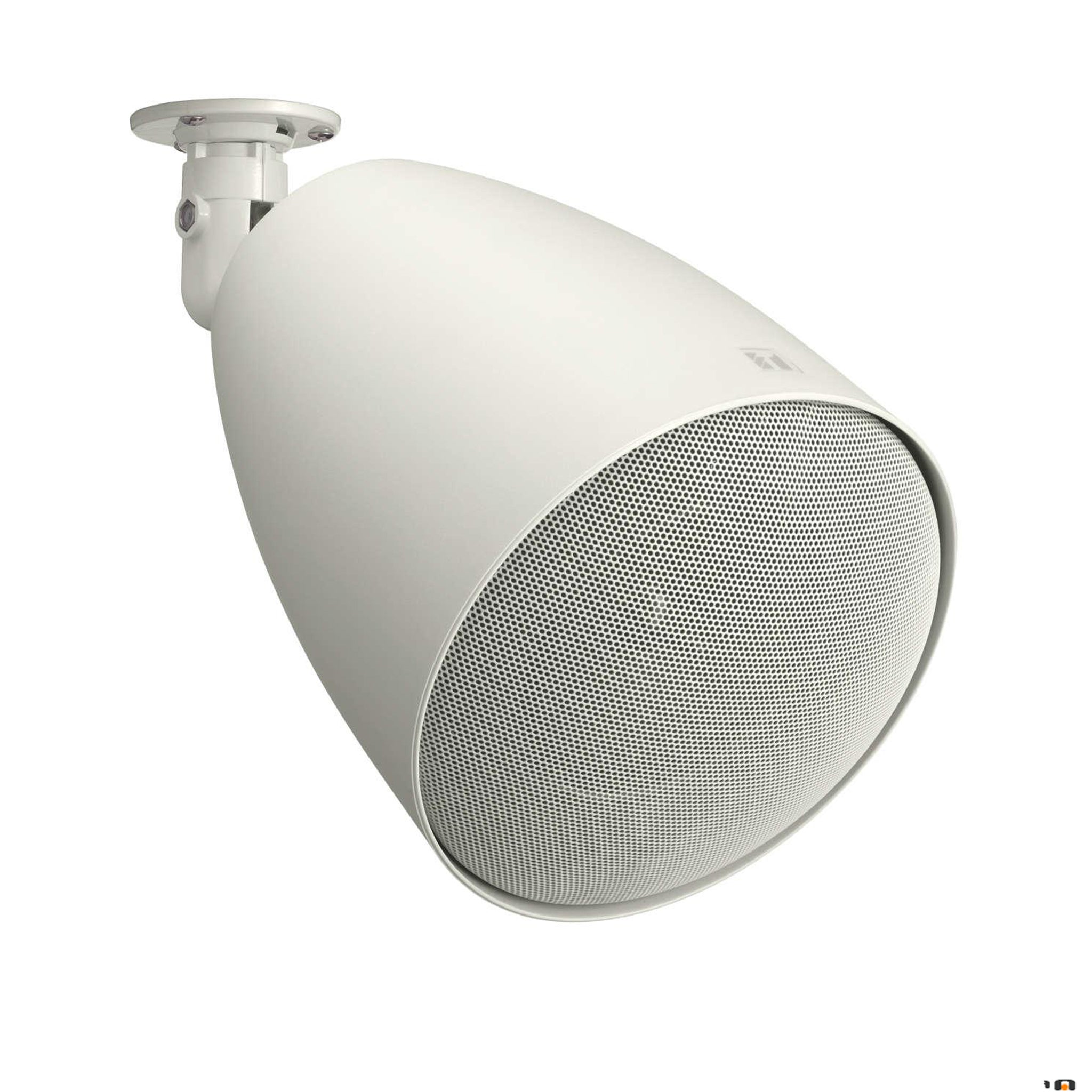

TOA PJ154BS
PJ154 15 Watt 5" Cone type projection speaker 100V line Certified to AS7240.24:2018 Indoor
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $30 | Express Post / Post / Road |
| $301 to $500 | $35 | Express Post / Post / Road |
| $501 to $1000 | $40 | Express Post / Post / Road |
| $1001 to $2500 | $45 |
Express Post / Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, TAS, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $15.00 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
LECTERNS
All lectern freight charges will need to be quoted. Our regular freight charges online will not apply.
**WE DO NOT SHIP OVERSEAS**
The PJ-154BS is the voice alarm certification product.
2 way speaker system is suitable for announcement and music use in wide frequency range.
Stylish and outstanding design inspired by the finest lighting fixtures.
A supplied swivel bracket accessory allows for flexible speaker angle adjustment.
- Stylish and outstanding design inspired by the finest lighting fixtures
- Well balanced frequency response
- Supplied swivel bracket allows flexible speaker angle adjustment
- Easy impedance setting by rotary switch
- Paintable
- Certified according to EN 54-24, ISO 7240-24
- Compliant with BS-5839-8
Specifications for product:
| PJ-154BS | PE-154BS | PE-154EN | PJ-202DL | |
|---|---|---|---|---|
| Frequency response |
70 Hz - 20 kHz |
70 Hz - 20 kHz |
70 Hz - 20 kHz |
120 Hz - 20 kHz |
| Sensitivity (1 W, 1 m) |
91 dB |
91 dB |
91 dB |
88 dB |
| Max. SPL (1 m) |
99 dB |
101 dB |
||
| Rated input (100 V) |
15 W |
15 W |
15 W |
20 W |
| Tappings (100 V) |
100 V : 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W) 70 V : 670 Ω (7.5 W)/ 1 kΩ (5 W)/ 2 kΩ (2.5 W) |
15 / 10 / 5 W (100 V), |
15 / 10 / 5 W (100 V), |
100 V: 500 Ω (20 W) / 1 kΩ (10 W) / 2 kΩ (5 W) |
| Speaker component |
Low: 5" cone-type, High: 1" balanced dome tweeter |
Low: 5" cone-type, High: 1" balanced dome tweeter |
Low: 5" cone-type, High: 1" balanced dome tweeter |
2 x 12 cm cone-type |
| Dimensions |
186 x 251 mm (Ø x H) |
186 x 251 mm (W x H) |
186 x 251 mm (W x H) |
146 x 186 mm (Ø x D) |
| Finish |
HIPS resin, off-white (RAL 9010 or equivalent) |
HIPS resin, off-white (RAL 9010 or equivalent) |
HIPS resin, off-white (RAL 9010 or equivalent) |
Aluminium, white |
| Operating temperature |
-10 °C to +50 °C ( 14 °F to 122 °F) |
-25 °C to +70 °C |
||
| Weight |
2.1 kg |
2.33 kg |
2.1 kg |
3.2 kg |
