TOA HA2120EN
Horn Array Speaker, IP66,120W, 113dB (1W/1m) 133dB (120W/1m), 500Hz-5kHz
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $30 | Express Post / Post / Road |
| $301 to $500 | $35 | Express Post / Post / Road |
| $501 to $1000 | $40 | Express Post / Post / Road |
| $1001 to $2500 | $45 |
Express Post / Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, TAS, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $15.00 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
LECTERNS
All lectern freight charges will need to be quoted. Our regular freight charges online will not apply.
**WE DO NOT SHIP OVERSEAS**

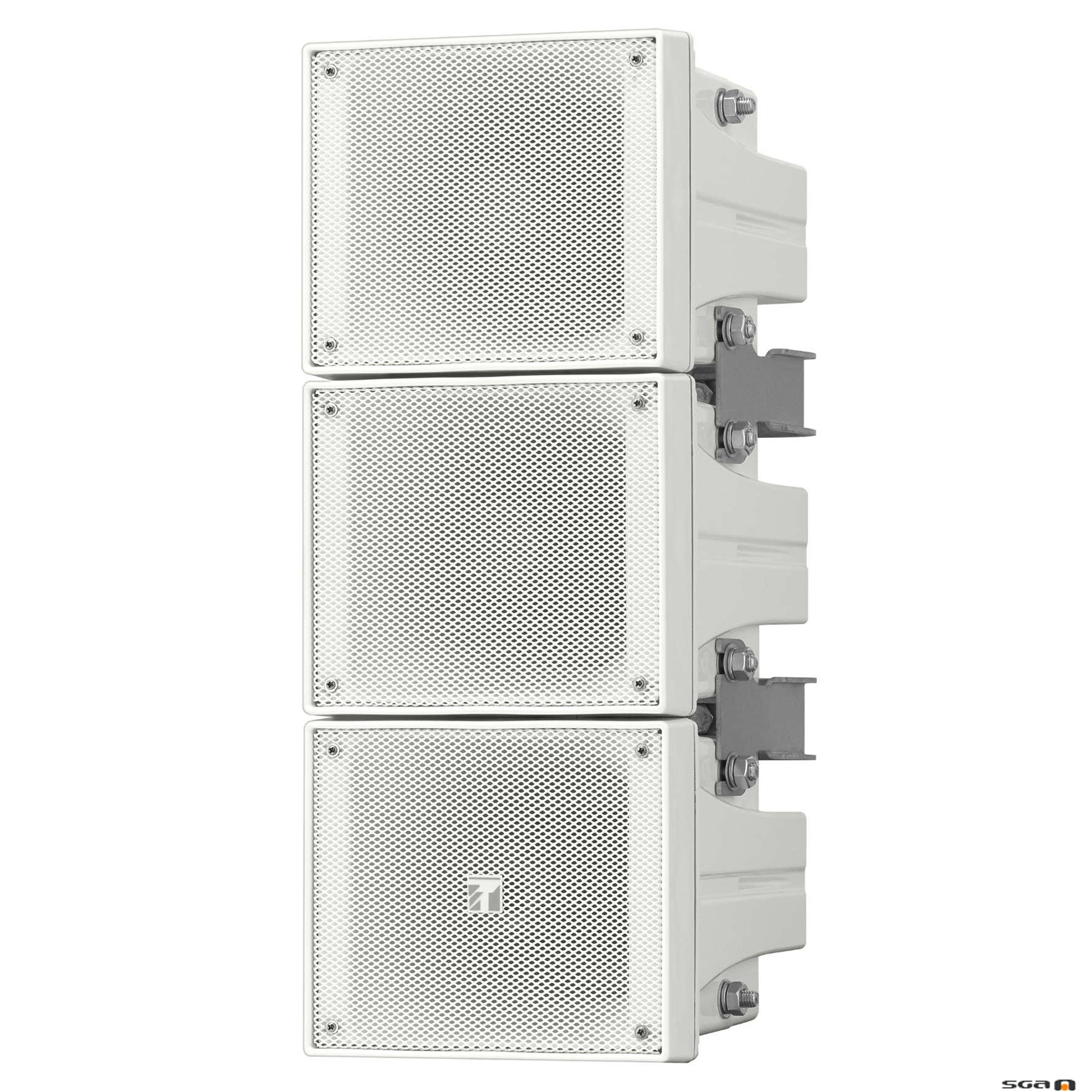

The TOA HA-2120EN is composed of multiple horn speakers positioned in an array.
It is a highly efficient speaker. Clear voice can be transmitted to a distant place without acoustic correction.
The built-in high-pass filter cuts the bass that can damage the speaker. A double drip-proof structure, and a salt-resistant paint finish, it has excellent durability in an outdoor permanent environment.
The HA-2120EN is certified to the European Standard EN 54-24: 2008, Loudspeaker for voice alarm systems for fire detection and fire alarm systems
In compliance with the British Standard BS 5839-8: 2008. DoP number is 23-103.
- Horn array for clear long-range voice projection
- IP66-rated for harsh outdoor use
- Weatherproof durability with double drip-proof design and saltresistant paint finish
- Wide horizontal coverage for broad-area public address applications
- Built-in high-pass filter for speaker protection
- EN 54-24 compliant for evacuation systems
- Optional mounting bracket for flexible installation
The Long Range Array Speaker shall be designed for outdoor public address and emergency voice alarm systems requiring high intelligibility and long-distance coverage. The speaker shall incorporate three horn speaker units arranged in a vertical array to achieve narrow vertical and wide horizontal directivity.
The speaker shall have a rated input of 120 W and support 100 V and 70 V line systems with selectable impedance settings of 83 Ω (120 W) and 170 Ω (60 W) for 100 V, and 42 Ω (120 W) and 83 Ω (60 W) for 70 V. Sensitivity shall be 113 dB (1 W, 1 m), and maximum SPL shall be 133 dB (120 W, 1 m).
The frequency response shall be 550 Hz – 4.3 kHz (–10 dB) and 290 Hz – 8 kHz (–20 dB). The speaker shall include a built-in high-pass filter for speaker protection. Coverage angle shall be 120°(1 kHz) for horizontal and 40°(1 kHz) for vertical. The speaker shall comply with EN 54-24 standards.
Input terminals shall be ceramic type, consisting of one 3-pole and one 2-pole terminal, and shall include a thermal fuse. The enclosure shall be made of FRP with a white RAL 9016 finish and aluminum front grille. The speaker shall be IP66-rated for dust and water protection.
The operating temperature range shall be –20 °C to +55 °C (–4 °F to +131 °F).
Dimensions shall be 215 (W) × 555 (H) × 309 (D) mm (8.46" × 21.85" × 12.17"), and weight shall be 16 kg (35.27 lbs).
Optional extras: Speaker Mounting Bracket (YS-1100A)
Manufacturer: TOA Corporation
Model: HA-2120EN
