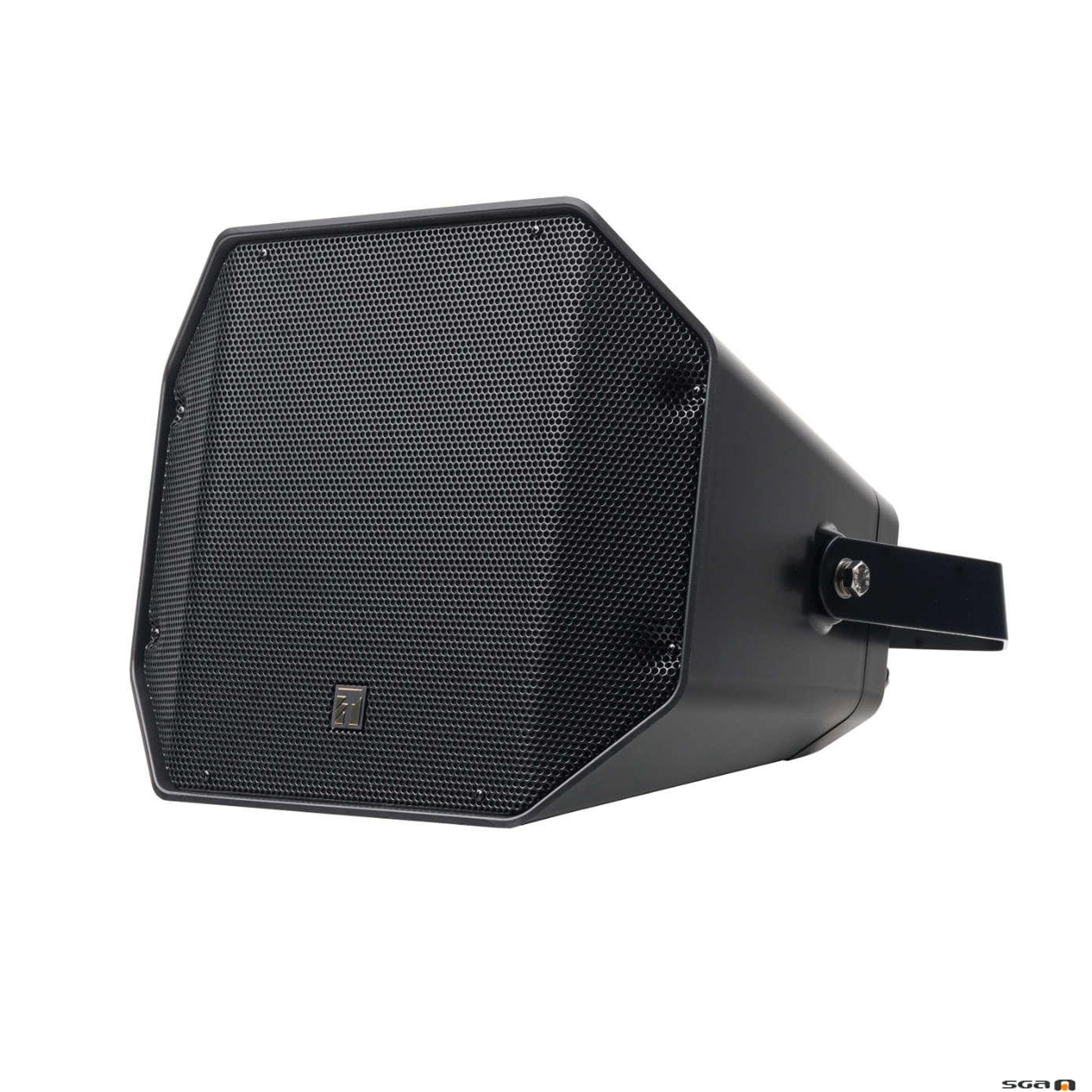

TOA CS761BSB
60W Two way horn speaker, 100V line, 100dB, IP66, AS7240.24:2018, BLACK
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $30 | Express Post / Post / Road |
| $301 to $500 | $35 | Express Post / Post / Road |
| $501 to $1000 | $40 | Express Post / Post / Road |
| $1001 to $2500 | $45 |
Express Post / Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, TAS, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $15.00 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
LECTERNS
All lectern freight charges will need to be quoted. Our regular freight charges online will not apply.
**WE DO NOT SHIP OVERSEAS**
The CS-761BSB are the models in compliance with the British Standard BS 5839-8:2008.
2-way coaxial speaker construction with 16 cm cone speaker and 2.5 cm tweeter enabling
highly intelligible broadcasts that can be used for music.
High-powered 60 W rated input enabling high-quality broadcast in a wide area.
Wide frequency response 100 Hz - 20 kHz allowing various audio applications.
IP66 rating: Ideal for outdoor applications within the rated operating temperature specifications. Special paint coat prevents color degradation, ensuring long-lasting exterior condition.
Various mounting brackets available as accessories allowing flexibility of mounting the speaker on the wall, ceiling, column or pole.
Rotary switch enabling simple impedance change from 170 Ω up to 1.3 kΩ for 100 V line, and 83 Ω up to 670 Ω for 70 V line applications.
- highly intelligible broadcasts that can be used for music.
- IP66 rating: Ideal for outdoor applications within the rated operating temperature specifications.
- 2-way coaxial speaker construction with 16 cm cone speaker and 2.5 cm tweeter enabling.
- Wide frequency response 100 Hz - 20 kHz allowing various audio applications.
- High-powered 60 W rated input enabling high-quality broadcast in a wide area.
- An elegant enclosure formed of straight lines suitable for any installation requirements
Rated Input
60 W
Rated Impedance
100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W)
Sensitivity
100 dB (1 W, 1 m) (1 kHz – 10 kHz, pink noise)
Frequency Response
100 Hz – 20 kHz
Directivity Angle
Horizontal: 90°, Vertical: 80°
Speaker Component
Low frequency: 16 cm (6") cone-type, High frequency: 2.5 cm (1") tweeter
Connection
Speaker cable (Hot: Black, Com: White)
Dust/Water Protection
IP66
Operating Temperature
–10 °C to +50 °C (14 °F to 122 °F)
Finish
Enclosure:ABS resin, black (RAL 9011 equivalent),paint
Punched net:Steel plate, black (RAL 9011 equivalent),paint
Bracket:Stainless steel, black (RAL 9011 equivalent), powder coating
Dimensions
388 (w) x 310 (h) x 367 (d) mm (15.28" x 12.2" x 14.45")
Weight
7.6 kg (16.75 lb)
Note: Avoid installing the speaker in locations close to the seashore or in indoor swimming facilities that are not well ventilated. In such locations, the bracket may be vulnerable to corrosion, eventually allowing the speaker to fall resulting in personal injury.
