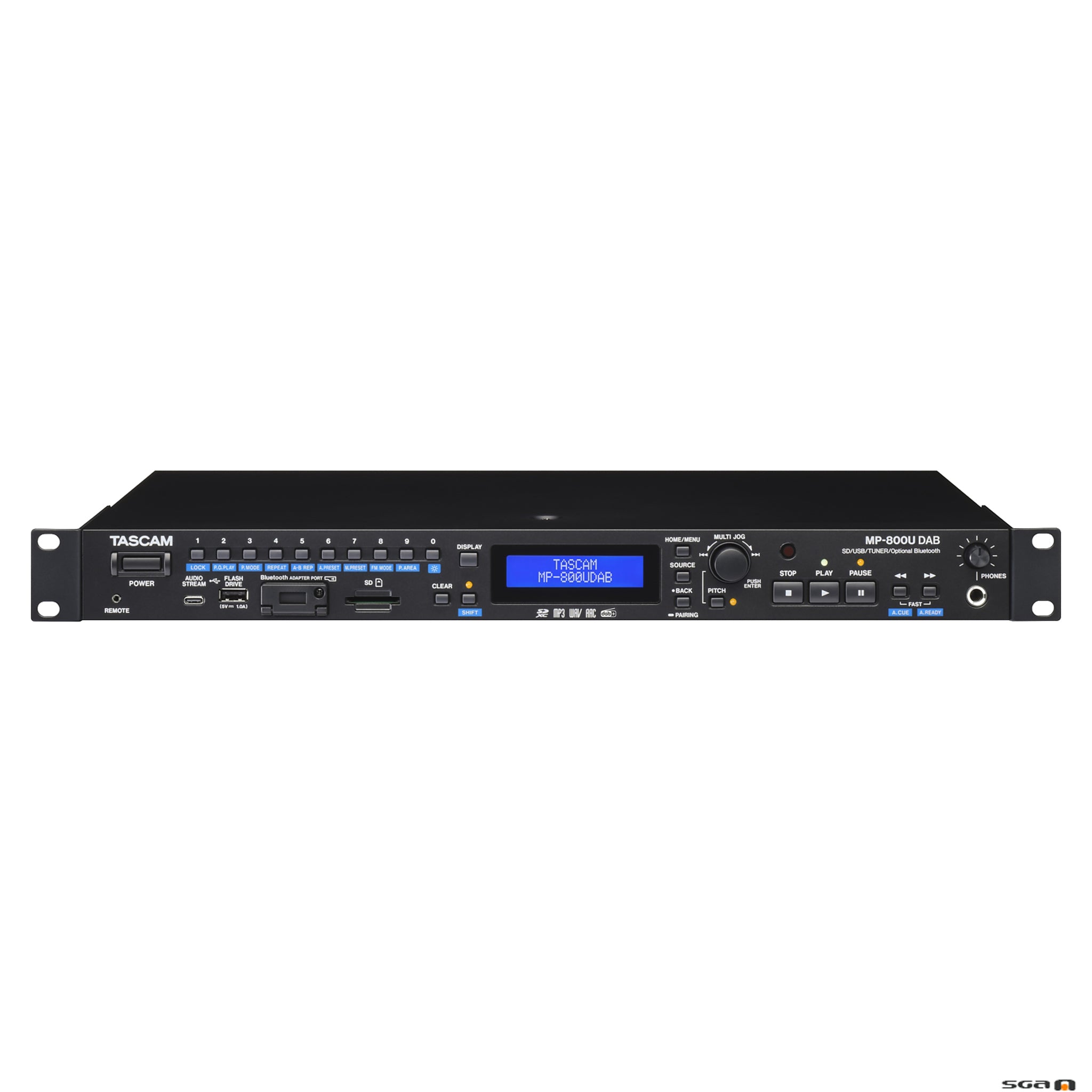

Tascam MP800UDAB
Compact, full-featured SD/USB player with a built-in DAB/FM tuner, USB DAC, and optional Bluetooth® streaming
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $30 | Express Post / Post / Road |
| $301 to $500 | $35 | Express Post / Post / Road |
| $501 to $1000 | $40 | Express Post / Post / Road |
| $1001 to $2500 | $45 |
Express Post / Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, TAS, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $15.00 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
LECTERNS
All lectern freight charges will need to be quoted. Our regular freight charges online will not apply.
**WE DO NOT SHIP OVERSEAS**
The MP-800U DAB is a compact, full-featured SD/USB player with a built-in DAB/FM tuner, USB DAC, and optional Bluetooth® streaming; offering professional playback versatility with balanced XLR and unbalanced RCA outputs. The MP-800U DAB delivers flexible, high-quality performance for restaurants, hotels, entertainment venues, and all other pro audio setups.
Versatile Playback
The MP-800U DAB offers multi-format playback via its front-panel SD card slot and USB flash drive port. Compatible file types include WAV, MP3, and AAC.
Bluetooth® & USB DAC Made Easy
With the optional AK-BT2 Bluetooth® adapter, the MP-800U DAB handily streams Bluetooth® audio into any installation. Plus, its USB DAC lets you connect any USB equipped device - such as laptops, smartphones, and tablets - via the front panel USB-C port, enabling additional playback options like accessing music libraries on computers.
Tune In With DAB / FM
The MP-800U DAB features a built-in DAB/FM Tuner, providing easy access to radio broadcasts. Its dedicated tuner output, via unbalanced RCA connectors, allows seamless integration with any audio system. Easily recall up to twenty user preset channels from either the front panel or the remote control.
Flexible Outputs
Equipped with balanced and unbalanced outputs, the MP-800U DAB can integrate quickly and easily into a variety of audio systems. With two output level controls - one for XLR, RCA, and headphone outputs combined, and another for independent tuner attenuation - this media player delivers smooth and precise level adjustments.
Professional Playback Functions
Pro-level playback is at the core of the MP-800U DAB. Power-on-Play automatically starts playback at startup, while fade-in/fade-out ensures smooth track transitions. Auto-Cue, Auto-Ready and Incremental Play keep your playlists primed, Key Original alters speed without changing pitch, while pitch control adjusts both tempo and key.
Q-SYS Control (integration under development)

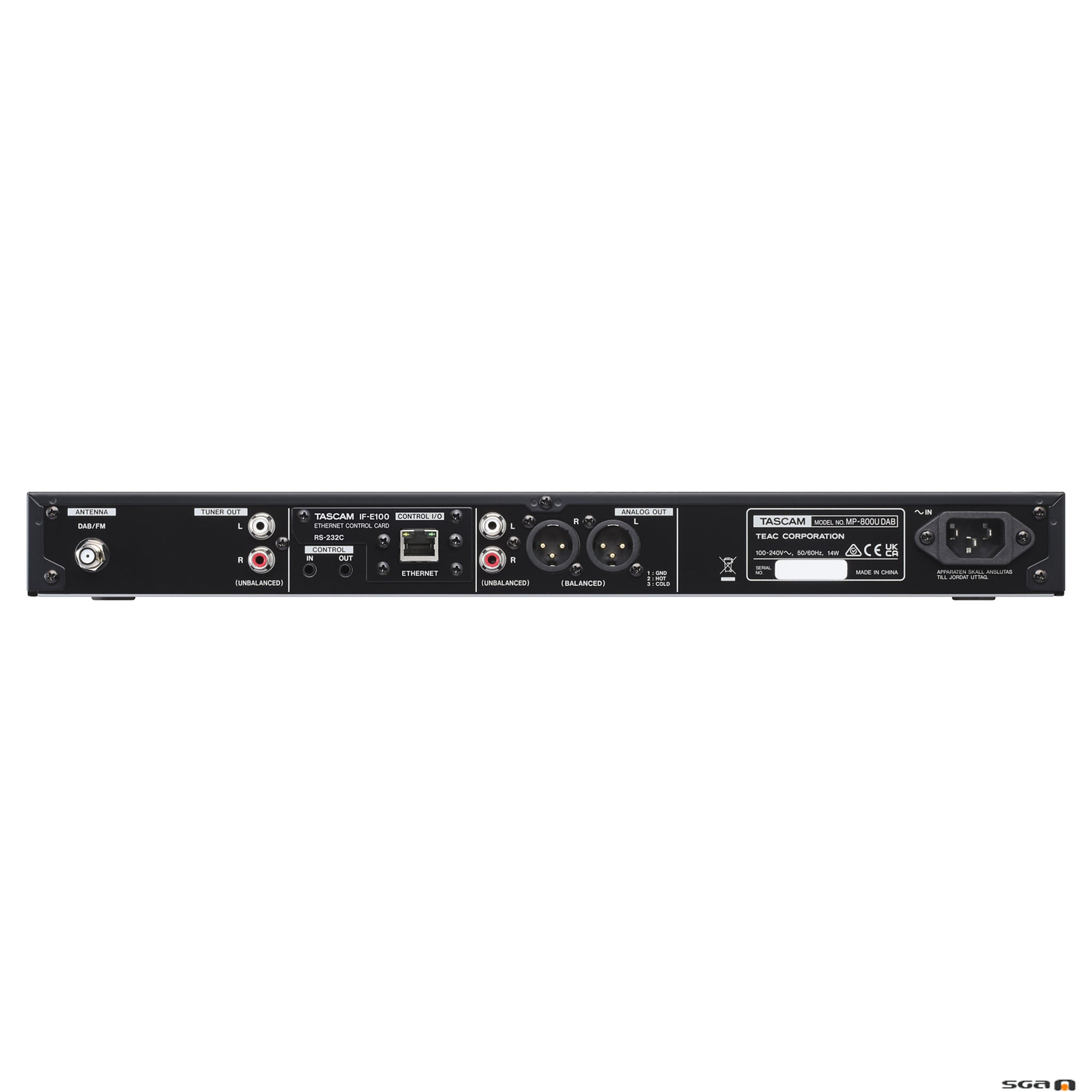

Currently under development, the plugin will integrate the MP-800U with the Q-SYS Platform using the optional IF-E100 Ethernet card, allowing full playback control directly from the Q-SYS User Control Interface. Access transport functions, source selection, and file navigation through Q-SYS without touching the hardware, thus streamlining operations in many commercial AV environments like conference centers, hospitality spaces, and houses of worship. The official TASCAM plugin will be available through Q-SYS Designer Software.
In the Box
- MP-800U DAB x 1
- Power cord x 1

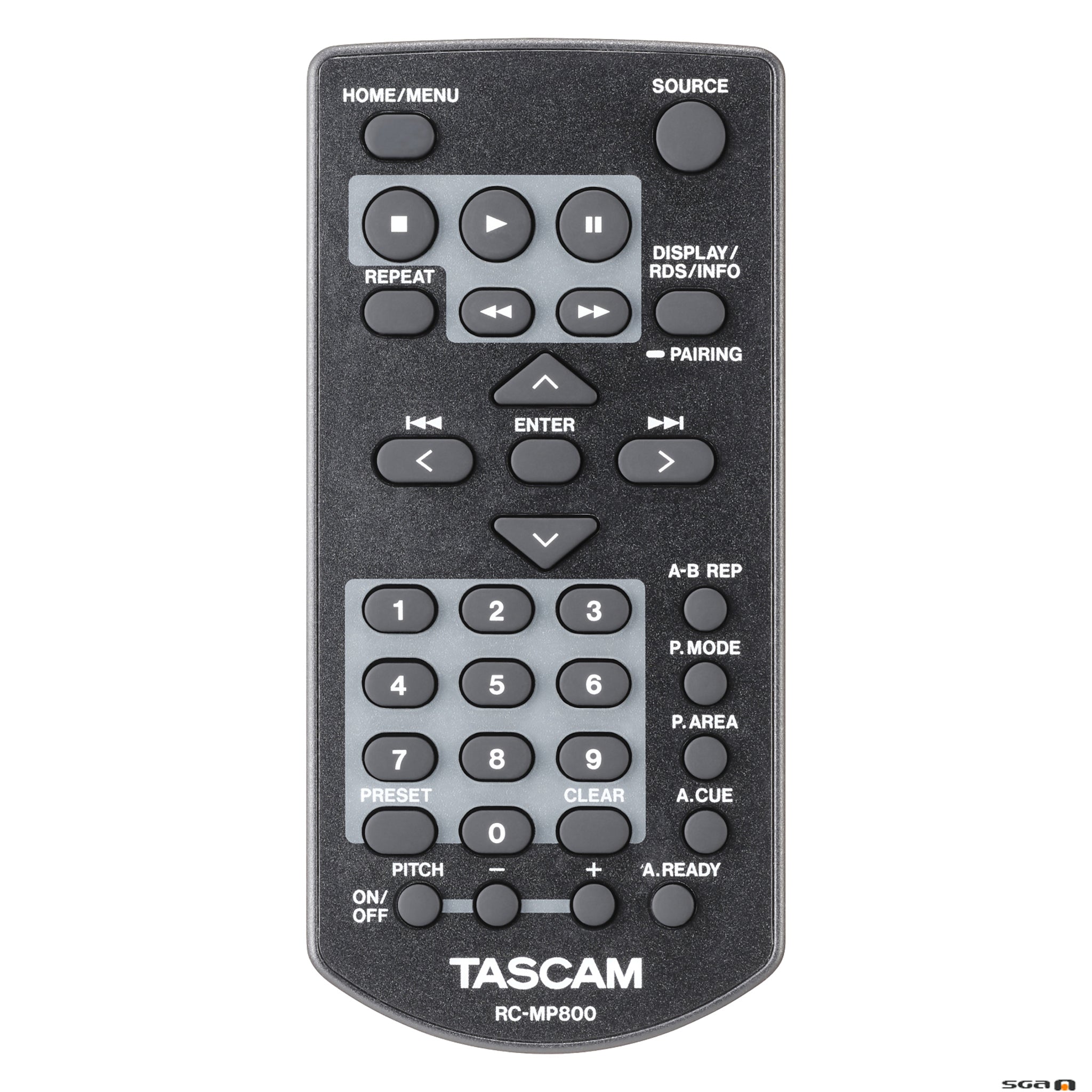

- Wireless remote control (TASCAM RC-MP800) x 1
- AAA batteries x 2
- FM antenna x 1
- Rack mounting kit (Attachment screws x 4, Washers x 4)
- Security screw x 1
- TASCAM ID registration guide x 1
- Safety guide (including warranty) x 1
- SD card / USB flash drive player (supports WAV, MP3, AAC)
- USB DAC (Digital Audio Converter)
- DAB/FM tuner
- Bluetooth audio supported as an option*
- Balanced XLR and unbalanced RCA outputs
- Auto cue and auto ready functions
- Pitch control function (+/-16%)
- Q-SYS platform compatibility allowing full playback control (Under development) **
- Power-on-play function can automatically start playback when the unit is turned on
- Incremental playback function jumps to the beginning of the next track
- Key original function changes playback speed without changing pitch
- Fade-in / fade-out playback function
- Repeat function including A-B repeat/all/single playback
- Direct track searching using the unit's number keys
- Wireless control using the free iOS/Android TASCAM MEDIA CONTROL CENTER app*
- Use of the optional remote control RC-20 allows direct playback start of up to 20 tracks
- External control via Ethernet (Telnet) supported as an option**
- Fader start / stop and tally output are possible using the CONTROL I / O connectors
- Unbalanced RCA connectors dedicated for tuner output
- Level adjustment function for each output
- Panel lock function can disable use of front panel buttons to increase operation confidence
- Headphone output enables audio monitoring
- 1U rackmount size
* A Bluetooth adapter (AK-BT2) is required.
** An Ethernet control card (IF-E100) is required.
Spec Description
| Supported media | SD cards (512 MB - 2 GB), SDHC cards (4 GB - 32 GB), SDXC cards (64 GB - 512 GB), USB flash drives (512 MB - 512 GB) |
| File System | FAT16, FAT32, exFAT |
| Playback file formats | |
| WAV | 44.1k/48k Hz, 16/24-bit (LPCM) |
| MP3 | 44.1k/48k Hz, 32/64/96/128/192/256/320 kbps, VBR |
| AAC | 44.1k/48kHz, 32-320 kbps, VBR (MPEG4 AAC-LC (audio stream), DRM not supported) |
| Maximum file size | 4GB |
| Maximum number of files | 999 (including folders) |
| Maximum number of folder levels | 16 (The full path, including the file name, must not exceed 260 characters.) |
| Number of channels | 2 channels (stereo) 1 channel (mono) |
| Analog audio output ratings | |
| ANALOG OUTPUT (BALANCED) | |
| Connectors | XLR-3-32 (1: GND, 2: HOT, 3: COLD) |
| Rated output level | +4 dBu (1.23 Vrms, when analog output level setting OFF) |
| Maximum output level (switchable) | +20 dBu (7.75 Vrms, when analog output level setting OFF) |
| Output impedance | 100Ω |
| ANALOG OUTPUT (UNBALANCED) | |
| Connectors | RCA pin jacks |
| Rated output level | -10 dBV (0.316 Vrms, when analog output level setting OFF) |
| Maximum output level (switchable) | +6 dBV (2.0 Vrms, when analog output level setting OFF) |
| Output impedance | 210Ω |
| TUNER OUTPUT (UNBALANCED) | |
| Connectors | RCA pin jacks |
| Rated output level | -10 dBV (0.316 Vrms, when -16 dBFS DAC output and tuner output level setting OFF) |
| Maximum output level (switchable) | +6 dBV (2.0 Vrms, when 0 dBFS DAC output and tuner output level setting OFF) |
| Output impedance | 210Ω |
| PHONES | |
| Connector | 6.3 mm (1/4") standard stereo jack |
| Maximum output level | 20 mW + 20 mW or higher (THD+N 0.1% or less, into 32 Ω load) |
| Control input/output | |
| REMOTE | |
| Connector | 2.5 mm TRS jack (Tip: Signal 1, Ring: Signal 2, Sleeve: GND) |
| CONTROL IN/OUT | |
| IN Connector | 3.5 mm TRS jack Active low external command reception (30 ms or longer ground) |
| OUT Connector | 3.5 mm TRS jack Open collector (15 V maximum voltage, 35 mA maximum current, 250 mW maximum output) |
| USB FLASH DRIVE | |
| Connector | 4-pin USB Type-A |
| Protocol | USB 2.0 HIGH SPEED (480 Mbps) |
| Device class | Mass storage |
| USB AUDIO STREAM | |
| Connector | USB Type-C |
| Protocol | USB 2.0 HIGH SPEED (480 Mbps) |
| Device class | USB audio 2.0 (USB class compliant) |
| Bluetooth® device connector | For Bluetooth adapter (AK-BT2) only |
| TUNER | |
| Frequency range | |
| DAB | Band III, 174 MHz – 240 MHz |
| FM | 87.5 - 108.0 MHz |
| Antenna connector | |
| Connector | F-type jack |
| Power | AC 100-240 V, 50/60 Hz |
| Power consumption | 14 W |
| Dimensions | 482.8 x 46.5 x 297.1 mm (W x H x D, including protrusions) |
| Weight | 2.7 kg |
| Operating temperature range | 0 - 40°C |
* 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms
Audio performance
| Frequency response | |
| 20 Hz - 20 kHz | +0.5 dB / -1.0 dB (during SD/USB playback to analog output, JEITA) |
| Distortion | 0.005% or less (during SD/USB playback to analog output, JEITA) |
| S/N ratio | 95 dB or higher (during SD/USB playback to analog output, JEITA) |
| Dynamic range | 95 dB or higher (during SD/USB playback to analog output, JEITA) |
| Channel separation | 95 dB or higher (during SD/USB playback to analog output, 1 kHz sine wave, JEITA) |
- *RoHS compliant
- *Specifications and appearance are subject to change without notice
