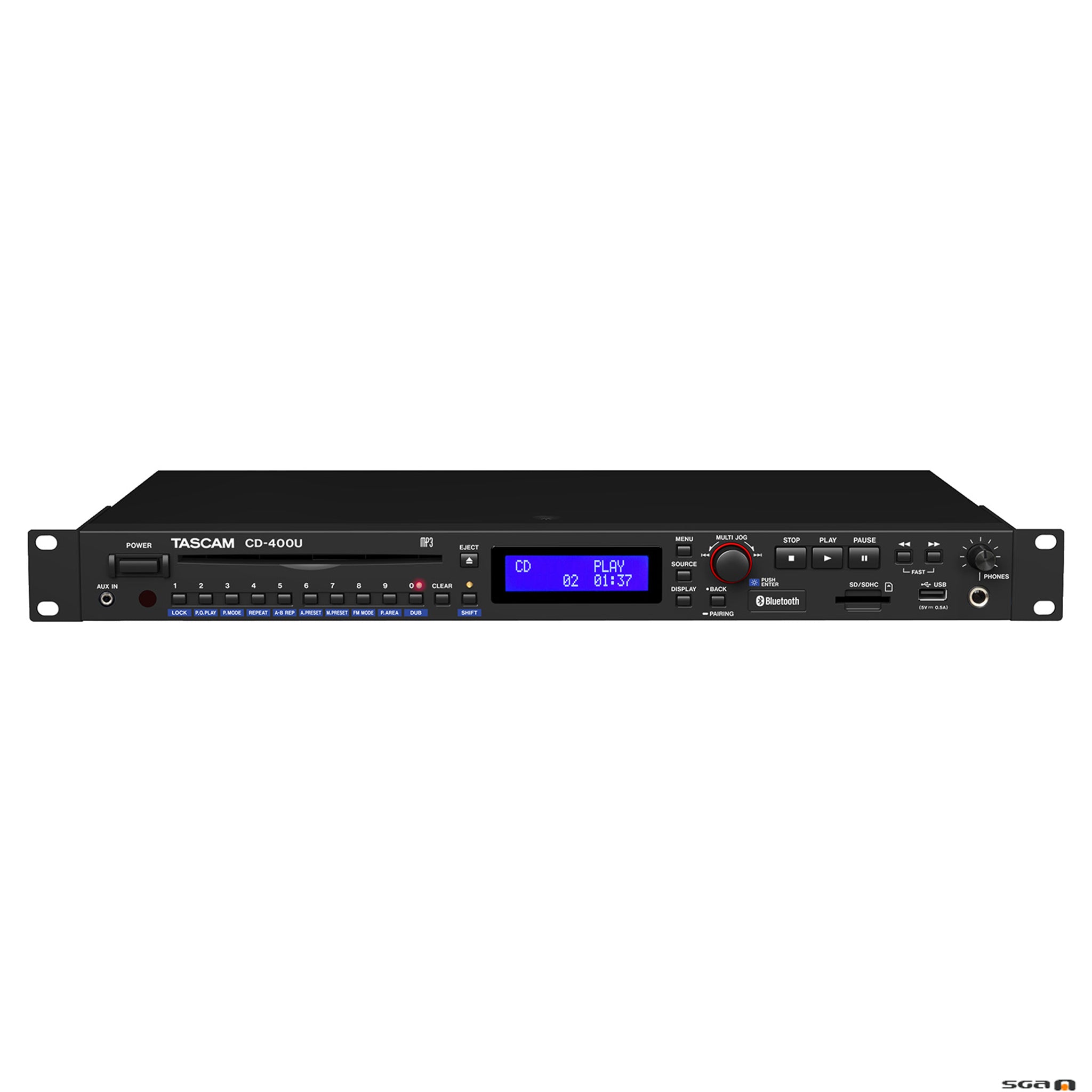

Ideal for a variety of installations, the CD-400U delivers the latest wireless and solid state technology content playback by offering CD, Bluetooth wireless, SD, USB, and AM/FM tuner capability for fast and easy playback of professional quality audio. Recording from the CD or AM/FM source to SD or USB media is possible.
Music playback from CDs, USB memory devices and SD cards
The CD-400U supports a wide range of media including audio CDs, data CDs, USB memory devices and SD and SDHC cards, supporting WAV, MP3, AAC and WMA formats. The CD-400U is ideal for contractors where playback of a wide range of media and files is required.Playback modes (continuous playback, single playback and random playback) can also be combined with repeat playback function settings (on/off) to suit a wide range of situations.
Check out this in-depth video for a technical overview on the features and use of this powerful source device.
Wireless streaming from Bluetooth® devices
Your digital music library can be played back from Bluetooth® devices such as smartphones, tablets and portable music players. Once the device is paired with the CD-400U, a wireless connection can be made quickly by simply pressing the pairing button. This enables easy playback of audio files without fussing with cables or file formats.
* The CD-400U can be now individually identified via Bluetooth as "CD-400U-xxxx" (xxxx being the unit's individual number). This applies to units which serial number starts with 206 and upwards only. The serial number can be checked on the unit's rear panel.A built-in AM/FM tuner
The CD-400U accommodates an AM/FM tuner with 20FM + 20AM presets. An independent tuner output connector is equipped on the back, enabling simultaneous playback with other media on the unit.

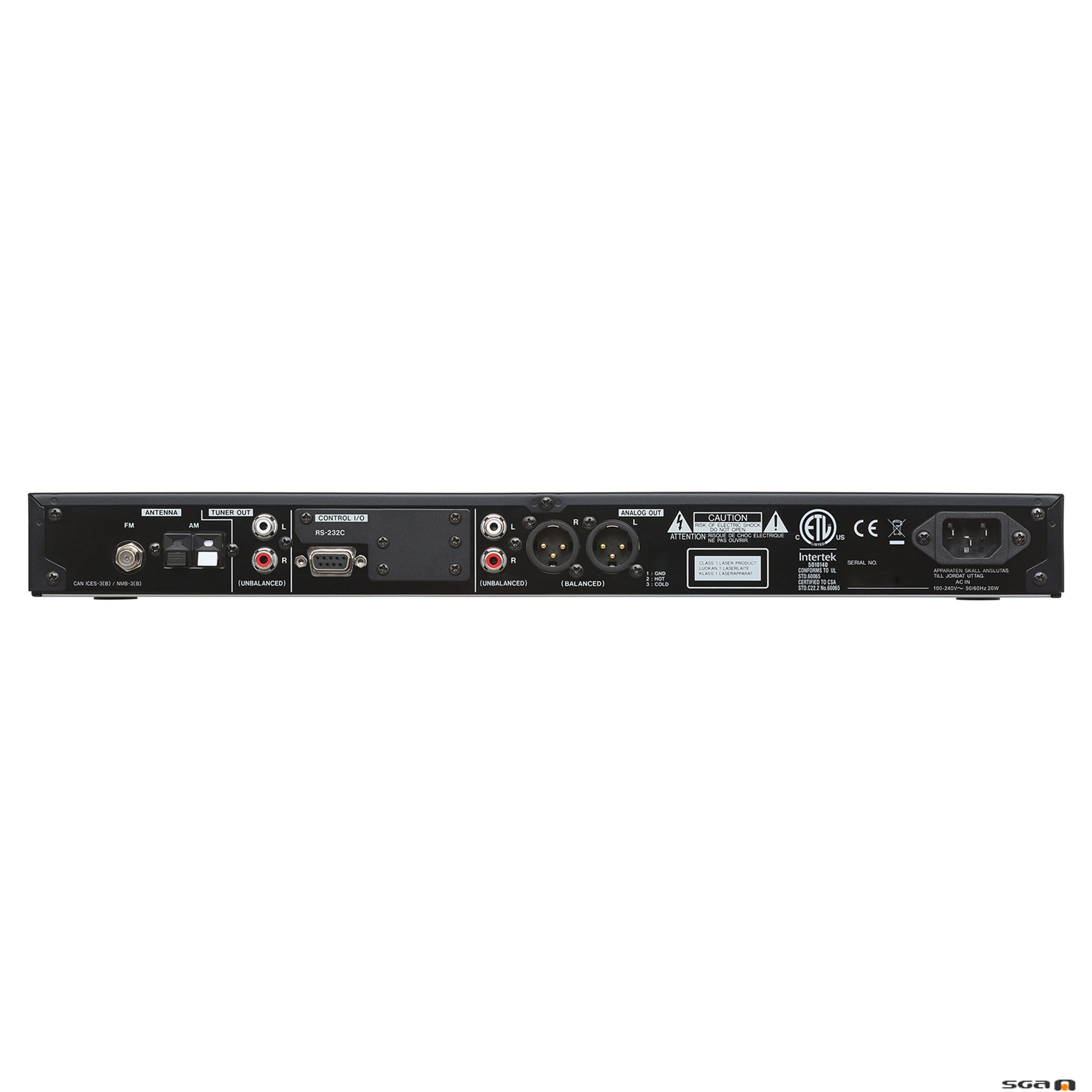

Analog audio outputs in Balanced and Unbalanced
The CD-400U equips both XLR balanced output and RCA unbalanced connectors. This makes the unit to suit to a wide range of settings, from background music in small facilities such as restaurants and offices to public facilities such as halls.
Remote control via an RS-232C and an Ethernet on option card.
As a standard feature, the CD-400U equips an RS-232C connector, allowing the unit to work with various remote control commands required by contractors. An optional Ethernet card – enabling the same serial control – is scheduled to release in future.
- Can play from CDs, USB memory devices and SD cards
- Includes a Bluetooth® receiver to enable playback from devices such as smartphones
- Includes an AM/FM tuner
- Includes an AUX IN connector to enable playback from devices such as portable music players
- Includes two analog output systems: XLR balanced connectors and RCA unbalanced connectors
- Includes incremental play function to transport to the beginning of the next track, enabling instant return to the beginning of tracks
- Playback from audio CDs or the tuner can be recorded to a USB memory device or SD card
- Remote control is possible via the standard RS-232C connector. Remote control will also be possible via an Ethernet option card scheduled to be released later
- Supports playback of MP3, AAC, WAV and WMA files from SD cards and USB memory devices
- Includes a dedicated RCA unbalanced tuner output connector
- Tracks can be searched directly on CDs, SD cards and USB devices using the number pad or the dedicated remote control
- Power On Play function automatically starts playback when the power is turned on
- Panel lock function disables operation of the front panel buttons for safer operation
- Headphone output connector enables audio monitoring
- 1U rack mount size
Spec Description
| Supported media | |
| CD | CD, CD-R, CD-RW (only CD-DA format) |
| SD | SD card (512MB to 2GB), SDHC card (4GB to 32GB) |
| USB | USB Flash memory (512MB to 64GB) |
| File System | FAT16 / FAT32 |
| Playback file formats | |
| CD-DA | 44.1kHz, 16bit |
| MP3 | 44.1k / 48k Hz, 32k to 320k bps and VBR (MPEG1/2 Audio Layer-3) |
| WMA | 44.1k / 48k Hz, 32k to 320k bps and VBR (WMA ver.9 standard, DRM not supported) |
| WAV (USB/SD only) | 44.1k / 48k Hz, 16bit |
| AAC (USB/SD only) | 44.1k /48k Hz, 8 to 320 kbps and VBR (MPEG4 AAC-LC (Audio stream)) |
| Number of channels | 2(stereo), 1(mono) |
| Dubbing file formats | |
| MP3 | 44.1kHz, 96k / 128k / 192k / 320k bps (96k / 128k bps with tuner) |
| Analog audio input | |
| AUX IN | |
| Connector | 3.5mm (5/8") stereo mini jack |
| Nominal input level | -20dBV (0.1Vrms) |
| Maximum input level | -4dBV (0.63Vrms) |
| Input impedance | 10kΩ or more |
| Analog audio outputs | |
| UNBALANCED | |
| Connector | RCA jack |
| Rated output level | -10dBV (0.316Vrms, when analog output level setting OFF) |
| Maximum output level (switchable) | +6dBV (2.0Vrms, when analog output level setting OFF) |
| Output impedance | 200Ω |
| BALANCED | |
| Connector | XLR-3-32, (1:GND, 2:HOT, 3:COLD) |
| Rated output level | +4dBu (1.23Vrms, when analog output level setting OFF) |
| Maximum output level (switchable) | +20dBu (7.75Vrms, when analog output level setting OFF) |
| Output impedance | 100Ω |
| Tuner output | |
| UNBALANCED | |
| Connector | RCA jacks |
| Rated output level | -10dBV (0.316Vrms) |
| Maximum output level | +6dBV (2.0Vrms) |
| Output impedance | 200Ω |
| Phones | |
| Connector | 6.3mm (1/4") Standard stereo jack |
| Maximum output | 20mW + 20mW(THD+N 0.1% or less, into 32Ω load) |
| Control input/output | |
| RS-232C | |
| Connector | 9-pin D-sub (female, inch-standard) |
| Bluetooth® | |
| Bluetooth® version | 4.2 |
| Output class | Class 2 (approximate transmission distance : 10m) * The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic waves. |
| Supported profile | A2DP, AVRCP 1.0 |
| Supported A2DP codecs | SBC, AAC, Qualcomm®aptX™ |
| A2DP content protection | SCMS-T |
| Tuner | |
| Connector | |
| FM | F-type (female) |
| AM | 2-pin push terminal |
| Frequency range | |
| FM | 87.5M to 108.0M Hz |
| AM | 522k to 1,629k Hz |
| Power | AC 100V to 240V, 50/60Hz |
| Power consumption | 10W |
| Dimensions | 482.6(W)×45(H)×300.5(D)mm |
| Weight | 3.3kg |
| Operating temperature range | 5 to 35˚C / 41 to 95˚F |
| Permitted installation tilt | 30˚ or less |
| Included items | AC power cord, Wireless remote controller”RC-CD400”, a rack-mounting screw kit, FM antenna, AM antenna, Owner’s manual/warranty |
Audio performance
| Frequency response | 20 to 20k Hz, +/-1dB (when 44.1/48kHz sampling frequency, CD/SD/USB playback, JEITA) |
| Distortion | 0.005% or less (when CD/SD/USB playback, JEITA) |
| S/N ratio | 95dB or more (when CD/SD/USB playback, JEITA) |
| Dynamic range | 90dB or more (when CD/SD/USB playback, JEITA) |
| Crosstalk between channels | 90dB or more (when CD/SD/USB playback, JEITA) |
