QSC AD-S8T

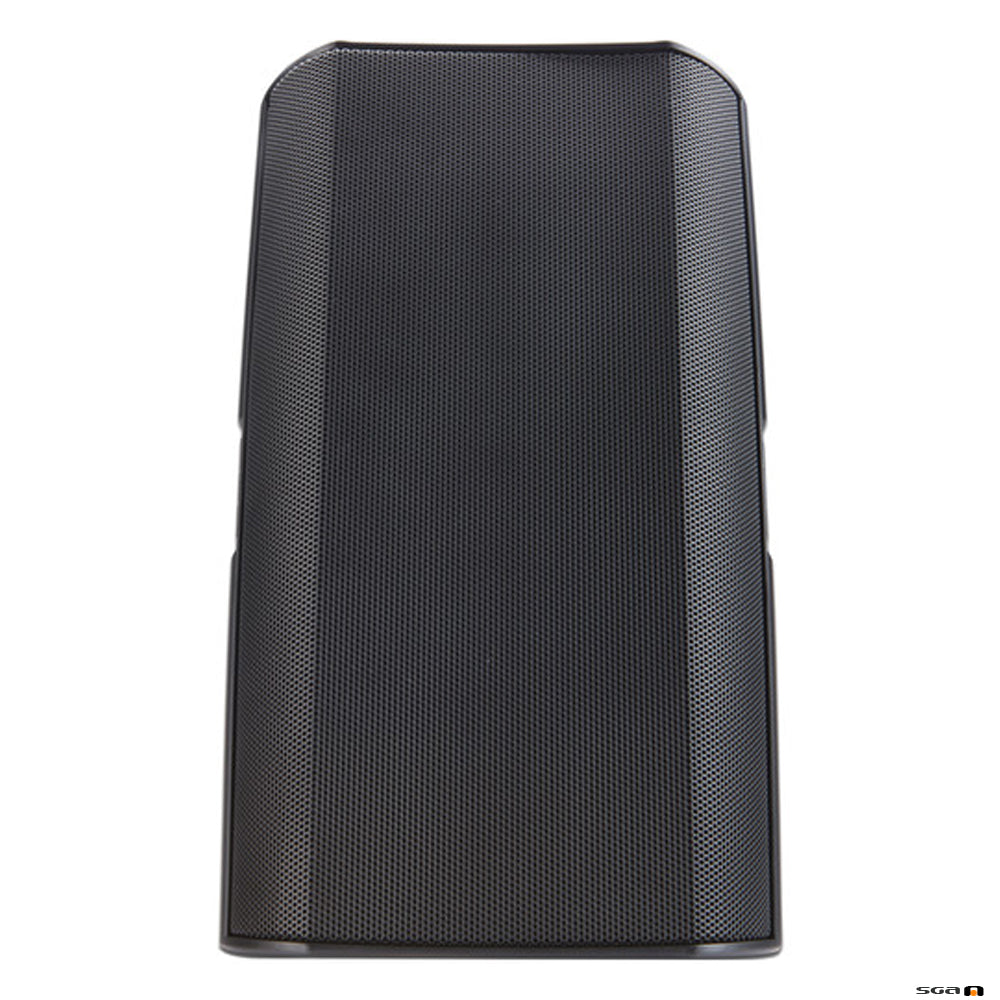

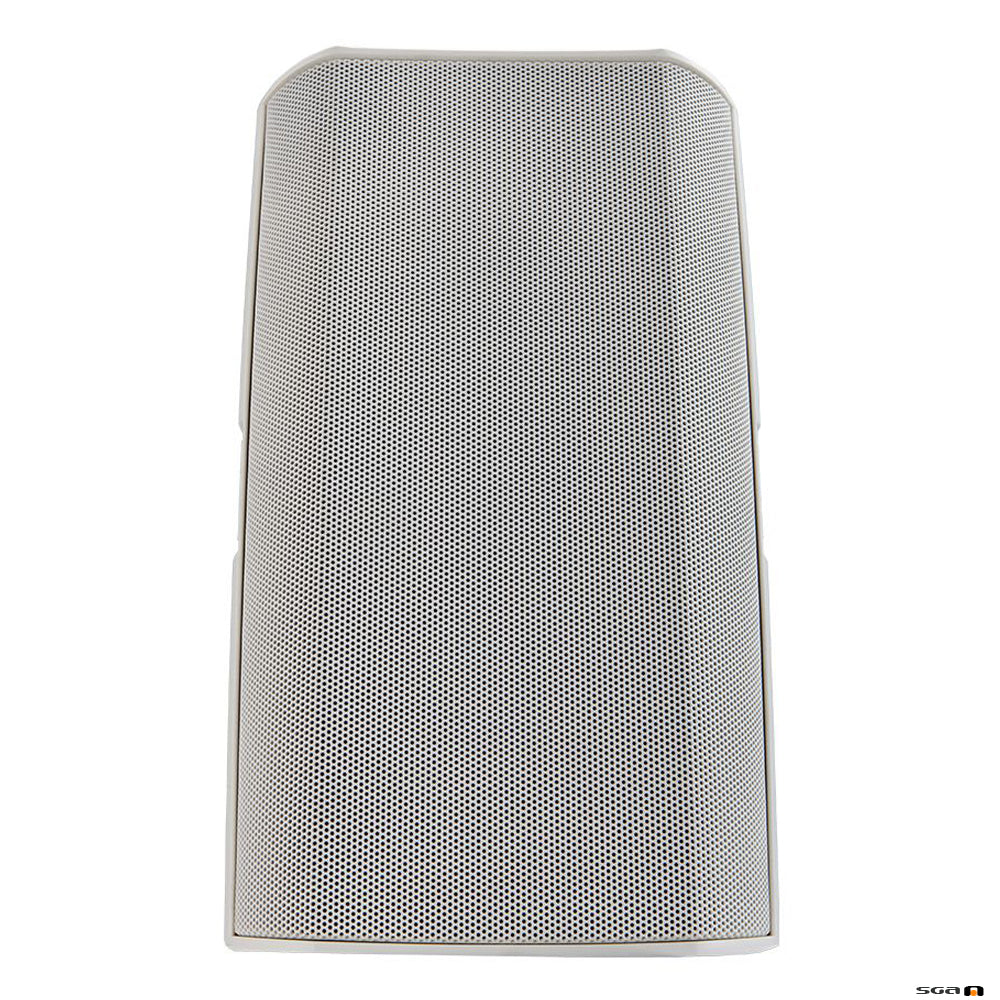

QSC AD-S8T High output 8" + 1" HF weatherproof surface mount speaker. 70/100V/8? (Inc. X-Mount bracket). Black or White.
Regular price
$1,277.10
Regular price
$1,419.00
Sale price
$1,277.10
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$1,277.10
Regular price
$1,419.00
Sale price
$1,277.10
QSC AD-S8T AcousticDesign? is a surface mounted 70/100 V, 8" two-way loudspeaker system, ideally suited for a wide variety of foreground and
background sound reinforcement applications. AcousticDesign? series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign? series provides integrators a versatile and confident install solution. The AD-S8T features a high quality 8? weather treated paper cone woofer on a 2? voice coil. A carefully selected 1? exit, 1.4? compression driver perfectly matches the sensitivity and performance of the woofer for outstanding full-range reproduction.
background sound reinforcement applications. AcousticDesign? series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign? series provides integrators a versatile and confident install solution. The AD-S8T features a high quality 8? weather treated paper cone woofer on a 2? voice coil. A carefully selected 1? exit, 1.4? compression driver perfectly matches the sensitivity and performance of the woofer for outstanding full-range reproduction.
- 8-inch weather treated woofer; 1.4-inch compression driver
- 105° conical DMT™ coverage
- 60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
- Maximum peak SPL 119 dB (8Ω bypass)
- Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area
- X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
- Optional Yoke mount and M10 Kit-C for additional installation versatility
- Advanced voicing filter sets using QSC Intrinsic Correction™, available through either Q-SYS or CXD amplifier platform
- Lightweight ABS enclosures offer long-term durability and lasting good looks
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, and BIM information available online
| System Details | AD-S8T |
| Effective frequency range1 | 55 Hz - 20 kHz |
| Rated noise power / voltage2 | 200 watts / 40 volts (rms) |
| Broadband sensitivity3 | 90 dB SPL |
| Coverage angle (-6 dB) | 105° conical DMT™ |
| Directivity factor (Q) | 7 |
| Directivity Index | 9 dB |
| Maximum continuous SPL4 | 113 dB |
| Maximum peak SPL4 | 119 dB |
| Rated impedance | 8 ohms |
| Recommended amplifier power (loudspeaker "program" power) | 400 watts |
| Transformer taps | 70 V: 60, 30, 15, 7.5 W and 8Ω bypass 100V: 60, 30, 15 W and 8Ω bypass |
| HF transducer | 1-inch exit / 1.4-inch voice coil compression driver |

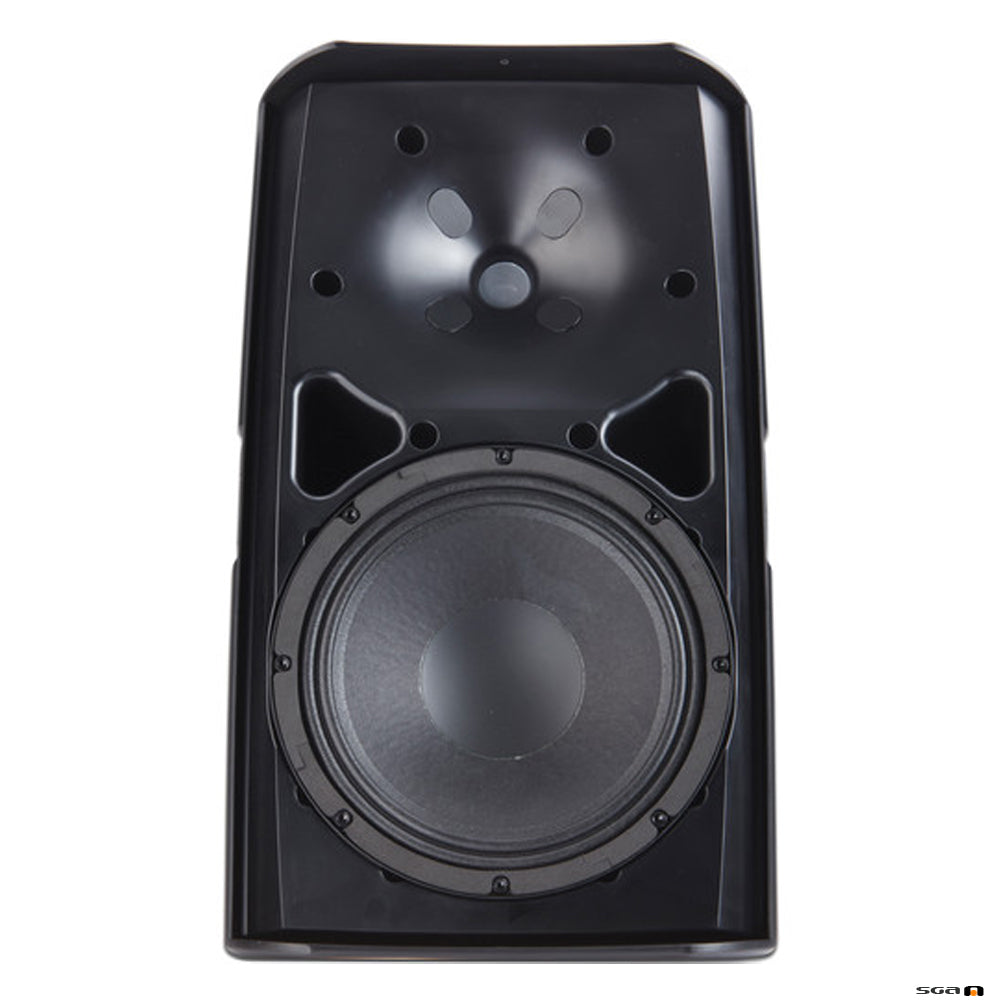

| LF transducer | 8-inch weather resistant paper cone woofer 2-inch / 51 mm voice coil |

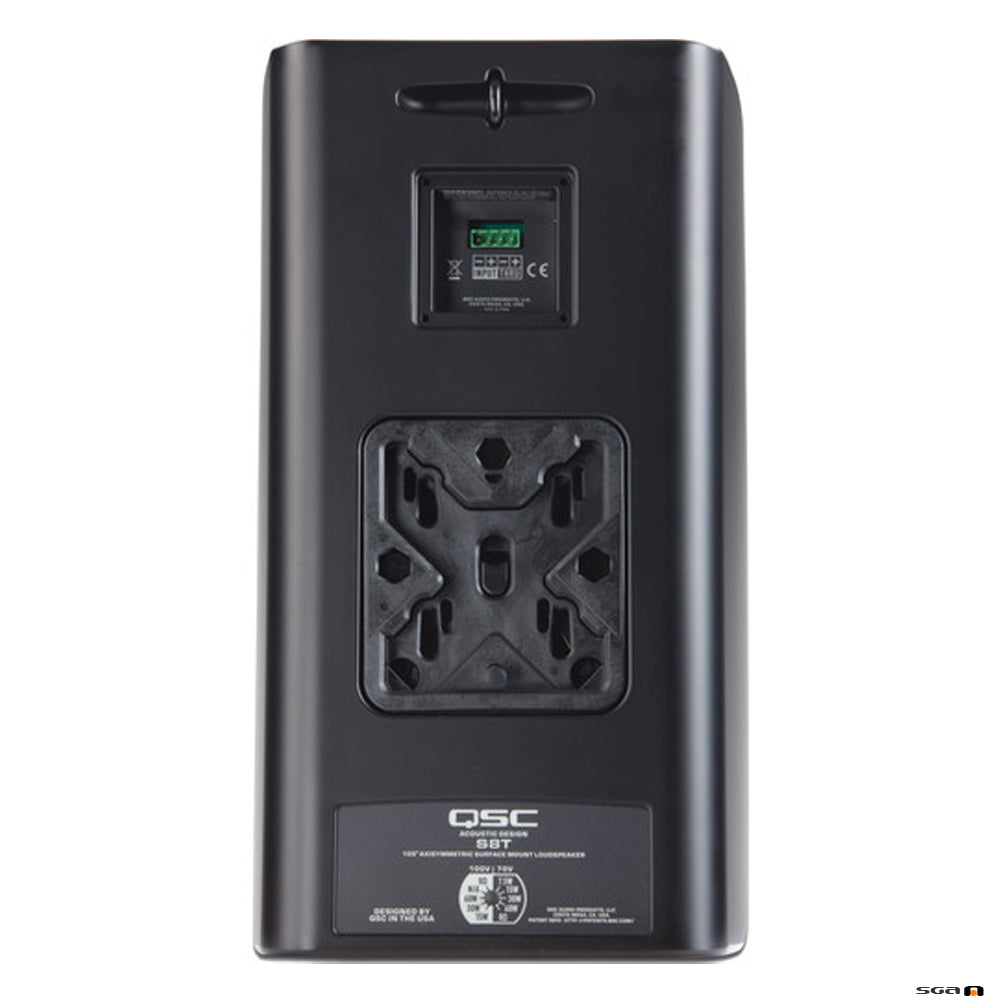

| Input connector type | Euroblock connector with parallel output terminals |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| X-Mount material | Powder coated aluminum |
| Enclosure Details | |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Testing | The AD Series loudspeakers qualified for outdoor use using the following tests:
|
| Net weight | 24.1 lb / 11 kg |
| Product dimensions (HWD) inches | 17.3 × 10 × 9.9 |
| Product dimensions (HWD) mm | 440 × 254 × 251 |
| Shipping weight | 32.1 lb / 14.5 kg |
| Shipping dimensions (HWD) inches | 24.3 × 13.8 × 13.8 |
| Shipping dimensions (HWD) mm | 729 × 351 × 351 |
| Included accessories | X-Mount mounting system, Euroblock connector, input panel cover |
| Optional accessories | YMS8T yoke mount, M10 Kit-C |
