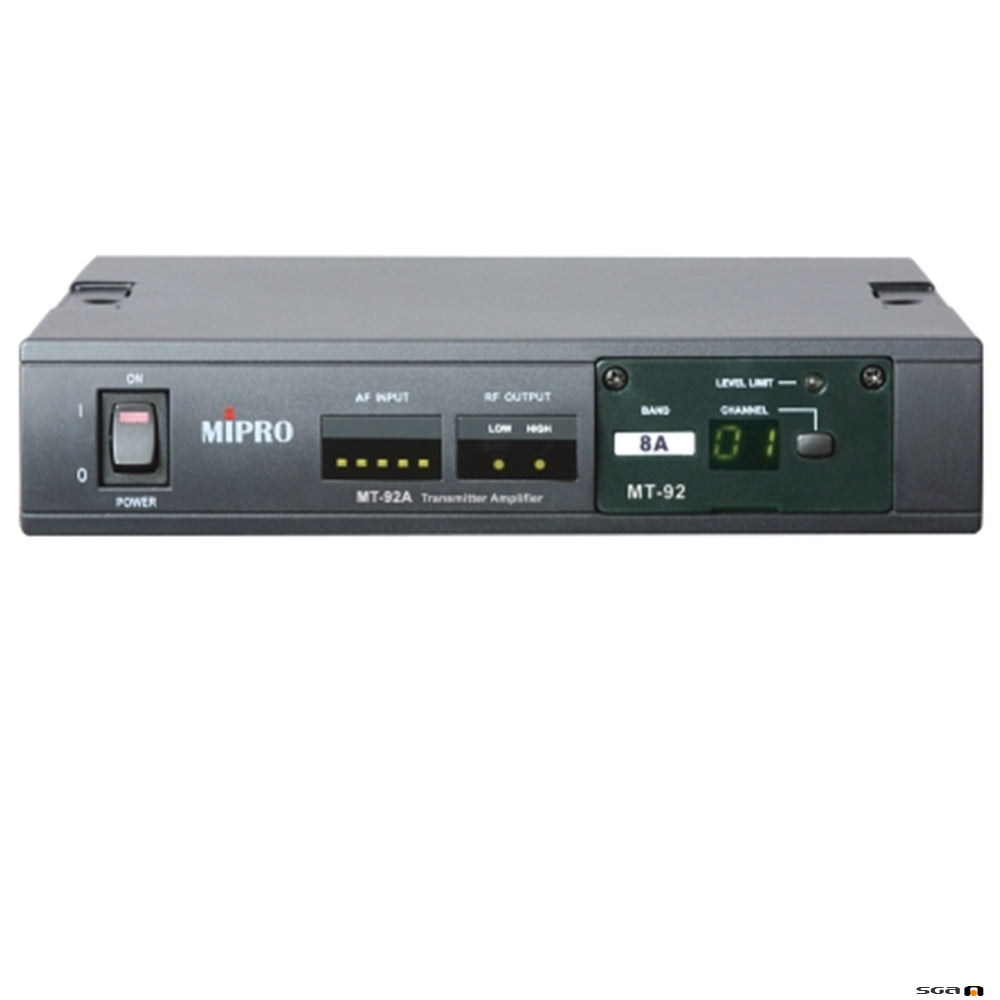

Mipro MT92A-5
Mipro MT92A-5 Rack Mount Transmitter. XLR/6.35mm Mic/Line combo connector. Switchable +48V phantom power.
Regular price
$654.01
Regular price
$832.00
Sale price
$654.01
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$654.01
Regular price
$832.00
Sale price
$654.01
Rear panel adjustable input sensitivity. 5NB frequency band.
- Modular design for easy installation and maintenance.
- 16 selectable channels available by a push of a button.
- Numeric LED clearly indicates working channel.
- High/Low power output selectable.
- LED indicators for RF and audio signal strength.
- Supplies + 48 V phantom power for condenser microphones.
Frequency Range UHF 620 ~ 934 MHz (country dependent)
Bandwidth 24 MHz
Oscillation Mode PLL Synthesized
Frequency Stability ±0.005 % (-10 ~ 60℃)
Modulation Type FM modulation
Output Power < 100 mW (Low), < 500 mW (High)
Spurious < 4 nW
Frequency Response 80 Hz ~ 15 kHz
T.H.D. < 0.5% (at 1 kHz, Max. deviation)
Audio Input XLR / 6.3 mm combo jack
Input Sensitivity Mic or Line level
Input Sensitivity Control Adjustable control for input gain
Phantom Power Switch ON / OFF
Panel Display AF Meter, AF Limit, RF Hi/Low Power indicators, numeric channel.
Antenna Connector 1 × TNC (50 Ω impedance)
Dimensions (W × H × D) 210 × 44 × 206 mm / 8.3 × 1.7 × 8.1 "
Weight Approx. 1.1 kg / 2.4 lbs
Bandwidth 24 MHz
Oscillation Mode PLL Synthesized
Frequency Stability ±0.005 % (-10 ~ 60℃)
Modulation Type FM modulation
Output Power < 100 mW (Low), < 500 mW (High)
Spurious < 4 nW
Frequency Response 80 Hz ~ 15 kHz
T.H.D. < 0.5% (at 1 kHz, Max. deviation)
Audio Input XLR / 6.3 mm combo jack
Input Sensitivity Mic or Line level
Input Sensitivity Control Adjustable control for input gain
Phantom Power Switch ON / OFF
Panel Display AF Meter, AF Limit, RF Hi/Low Power indicators, numeric channel.
Antenna Connector 1 × TNC (50 Ω impedance)
Dimensions (W × H × D) 210 × 44 × 206 mm / 8.3 × 1.7 × 8.1 "
Weight Approx. 1.1 kg / 2.4 lbs
