FBT Ventis 112A
FBT 12"/1" self-powered speaker. 2-way, bi-amp bass reflex design, 700+200W RMS Class D and Class H/AB amplifiers, 48Hz - 20kHz freq. resp. 12" custom woofer, 1" B&C HF driver
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**

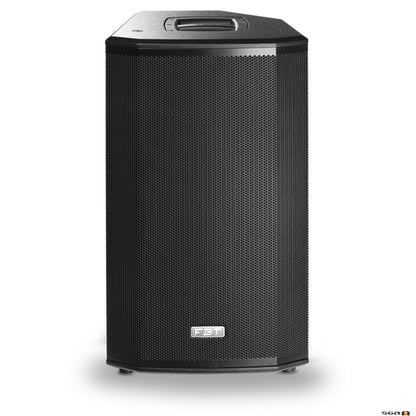

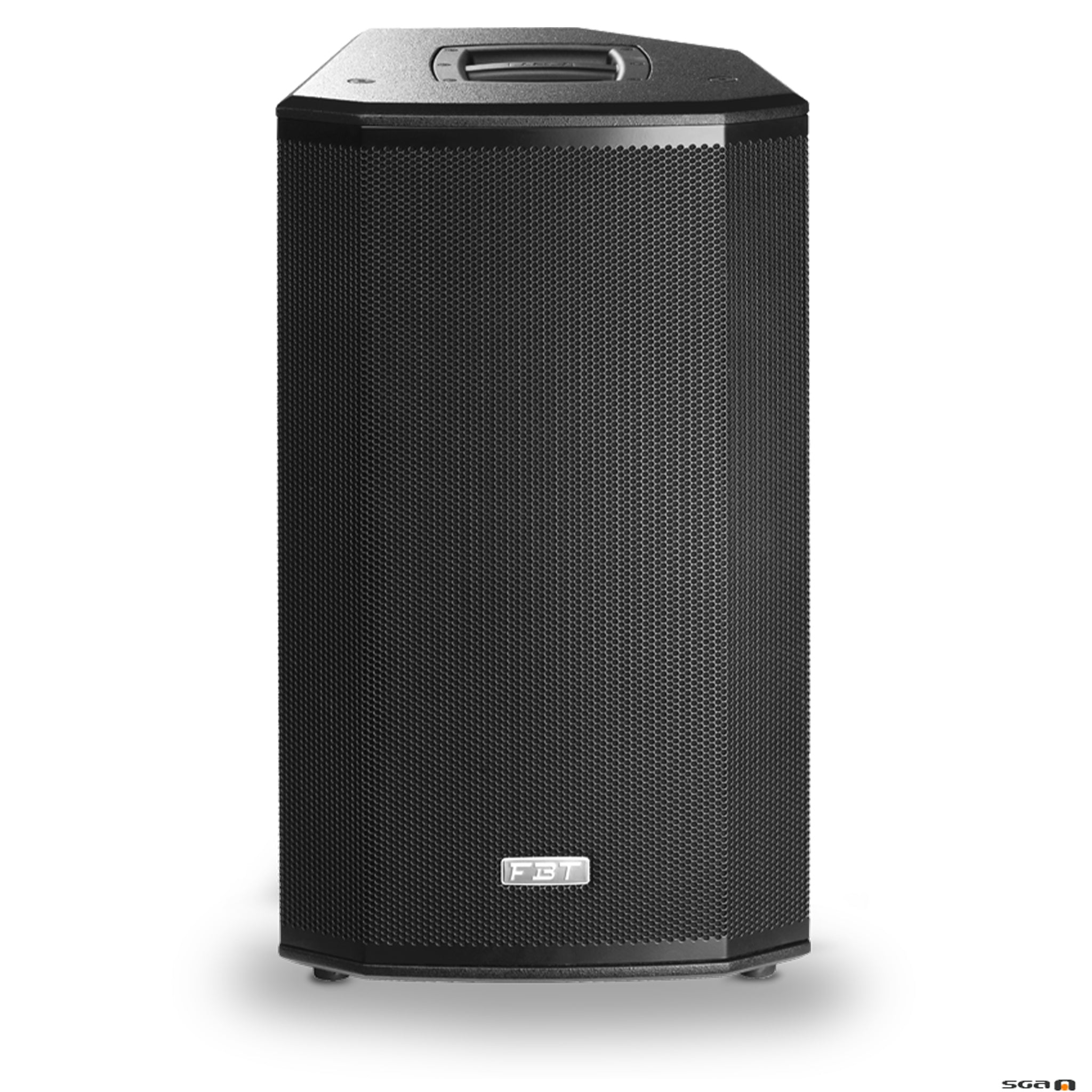

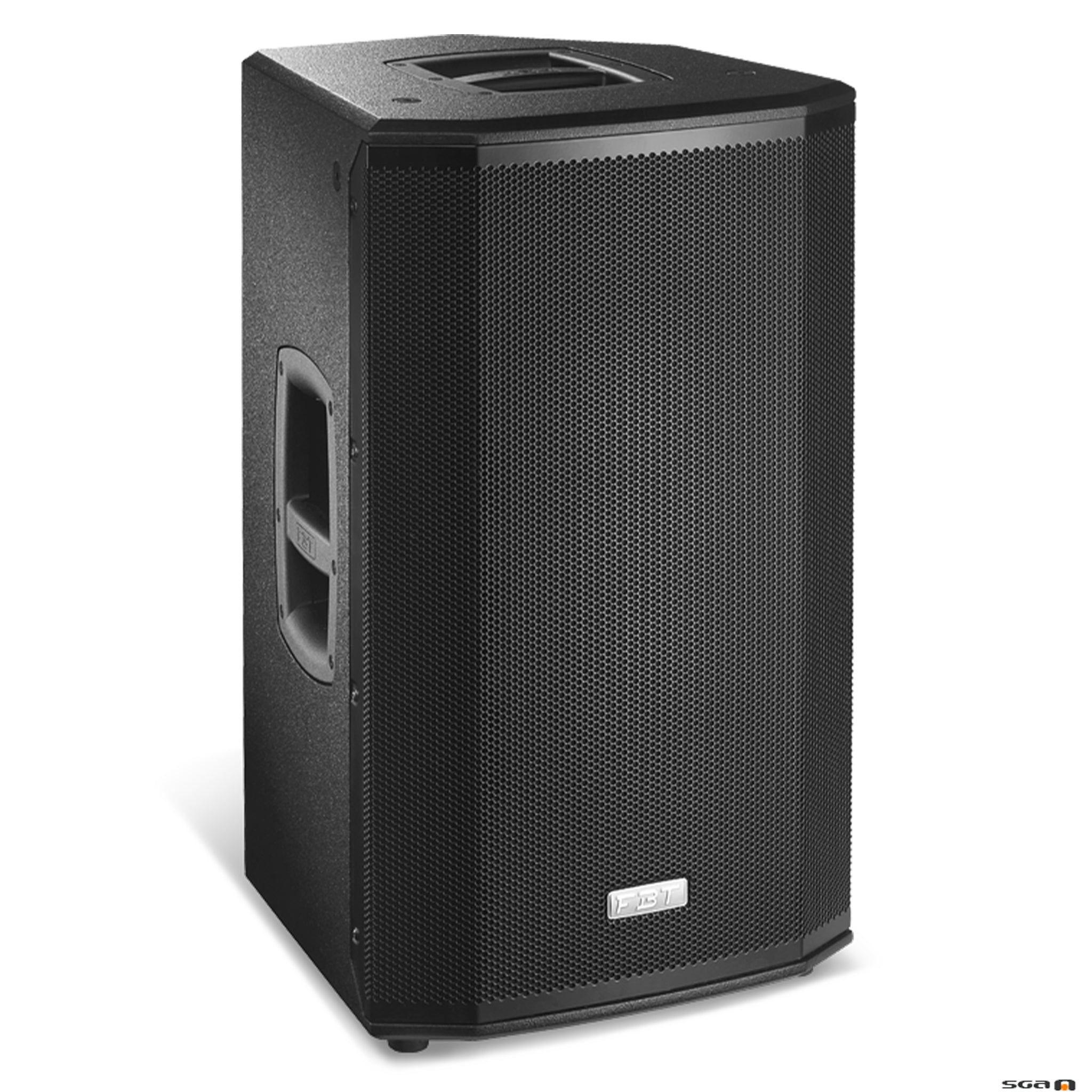

Ventis 112A is part of the Ventis range, which is ideal for portable performance or fixed installation.
This active speaker includes a 12" woofer and a 1" exit 1.4" VC compression driver.
The built-in DSP LCD-screened amp module provides 700W + 200W, delivering 133dB SPL.
It features a 15mm Baltic birch ply cabinet with a 35mm pole mount and a full-length grille.
Optional brackets for installation are available.
- 2-way, bi-amplified, bass reflex design
- Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF Digital Signal Processor with graphic display
- 15 mm (0.59") birch plywood scratch resistant enclosure and internal bracing
- High efficiency switch mode power supply
- Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
- 320mm (12") LF woofer with 64mm (2.5") voice coil, custom made for FBT
- 25mm (1") exit throat B&C HF compression driver with 36mm (1.4") voice coil
- Frequency response from 48Hz to 20 kHz
- 80°H x 50°V Constant Directivity Rotatable Horn
- 6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8") top-hat
- Speaker stand socket, two aluminium handles

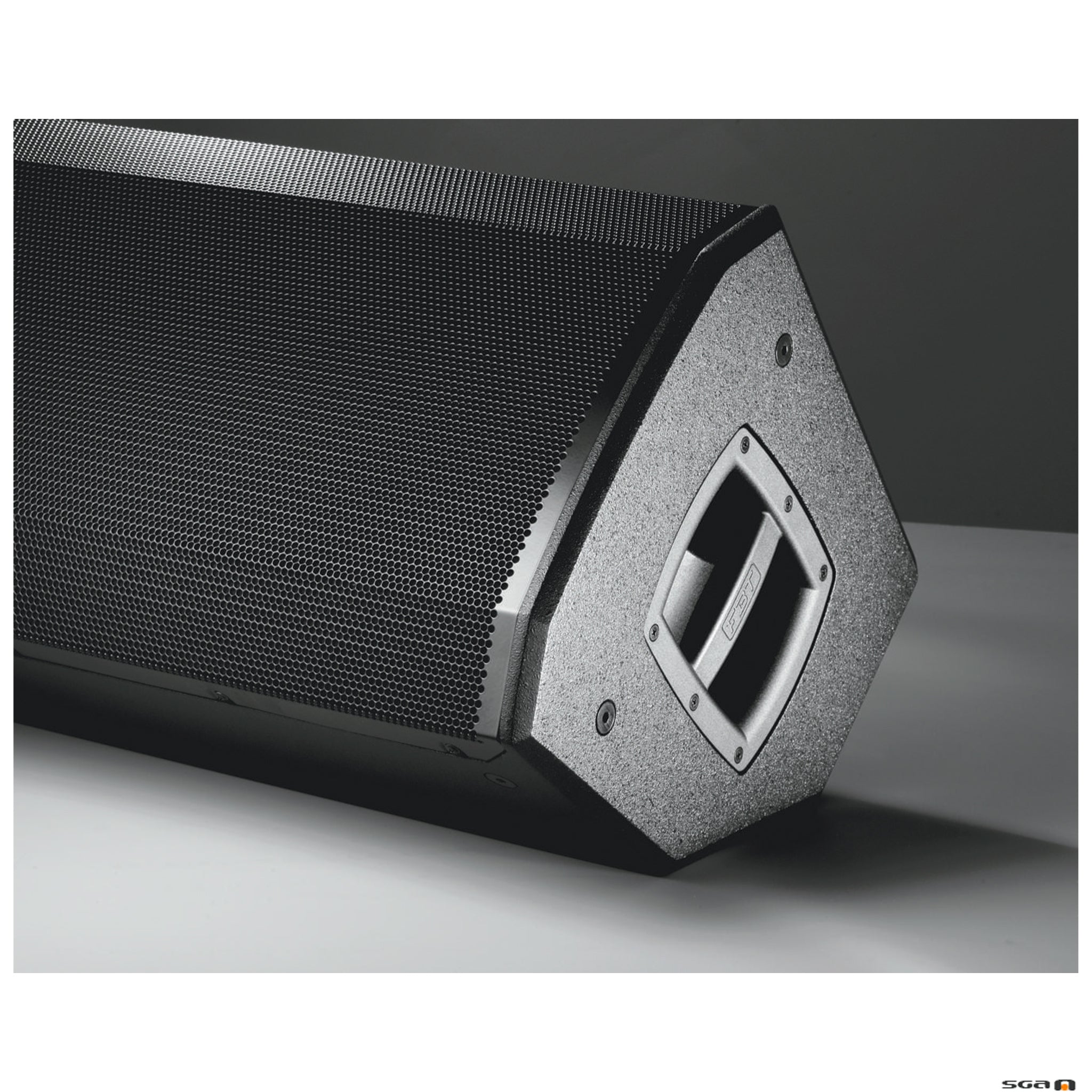

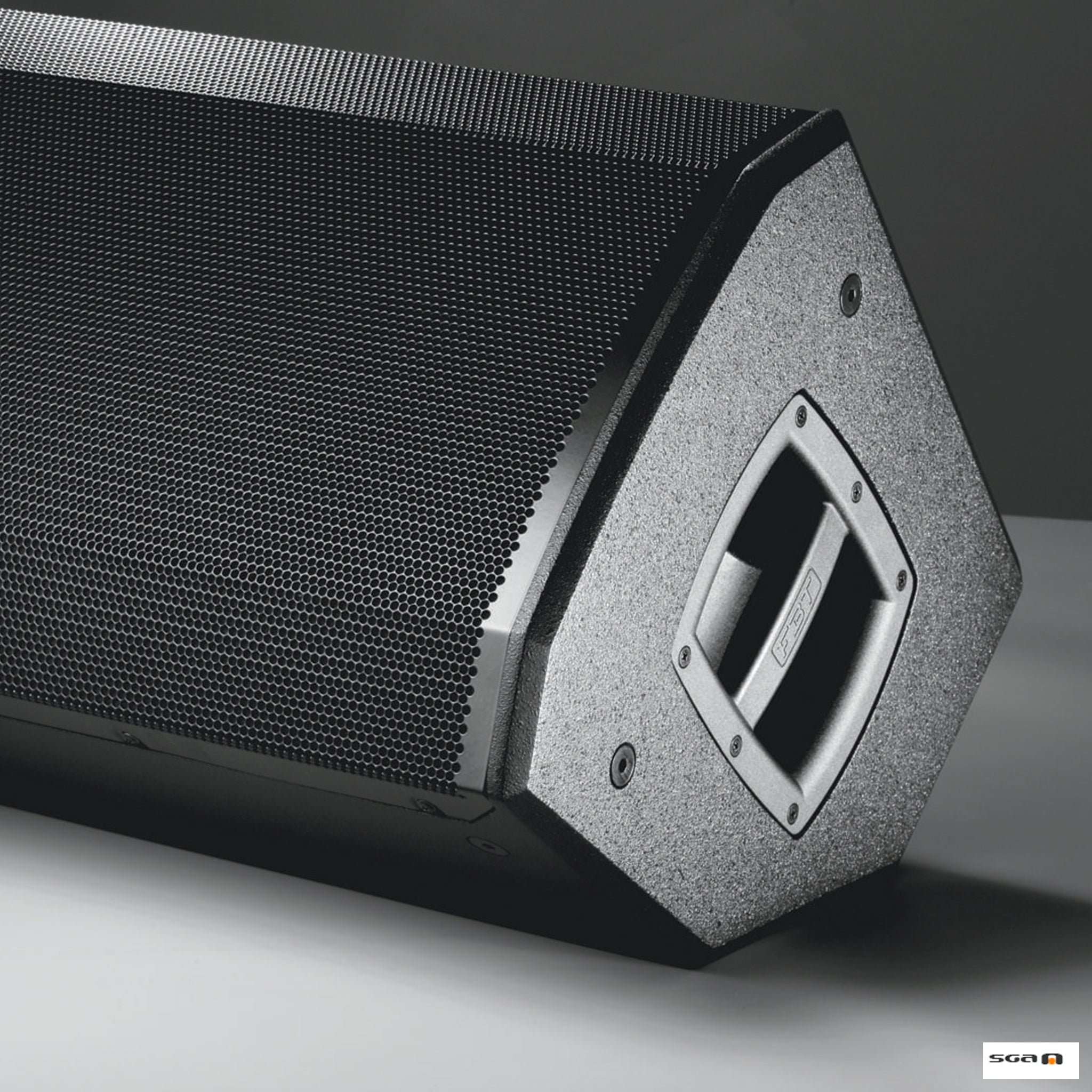

- 45° monitor taper
- Adjustable delay between 0 - 10m
- Weight : 20.6Kg
- Dimensions : 387 x 665 x 380mm
- Configuration: 2 Way
- Frequency response: 42Hz - 20kHz -6dB
- Low frequency woofer: 12" / 2.5" coil
- High frequency driver: 1" / 1.4" coil
- Maximum SPL cont/peak: 126/133dB
- Dispersion: 80 x 50 rotatable
- Input impedance: 22kOhm
- Input connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
- Net Dimension (WxHxD): 387 x 665 x 380mm
- Net Weight: 20.6kg
- Transport Dimension (WxHxD): 500 x 765 x 470mm
- Transport Weight: 23.1kg
- AC Power requirements: 640VA
- Built-in amplifier LF/HF: 900w (700w LF + 200w HF)
- Built-in amplifier peak LF/HF: 1800w (1400w LF + 400w HF)
- Power cord: 5m Neutrik True1
- Built in amplifier: 900w (700w LF + 200w HF)
- Built in amplifier peak: 1800w (1400w LF + 400w HF)
- Maximum SPL continuous/peak: 126/133dB
