FBT Ventis 110
FBT 10"/1" speaker. 2-way, bass reflex design, 8 Ohms
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**

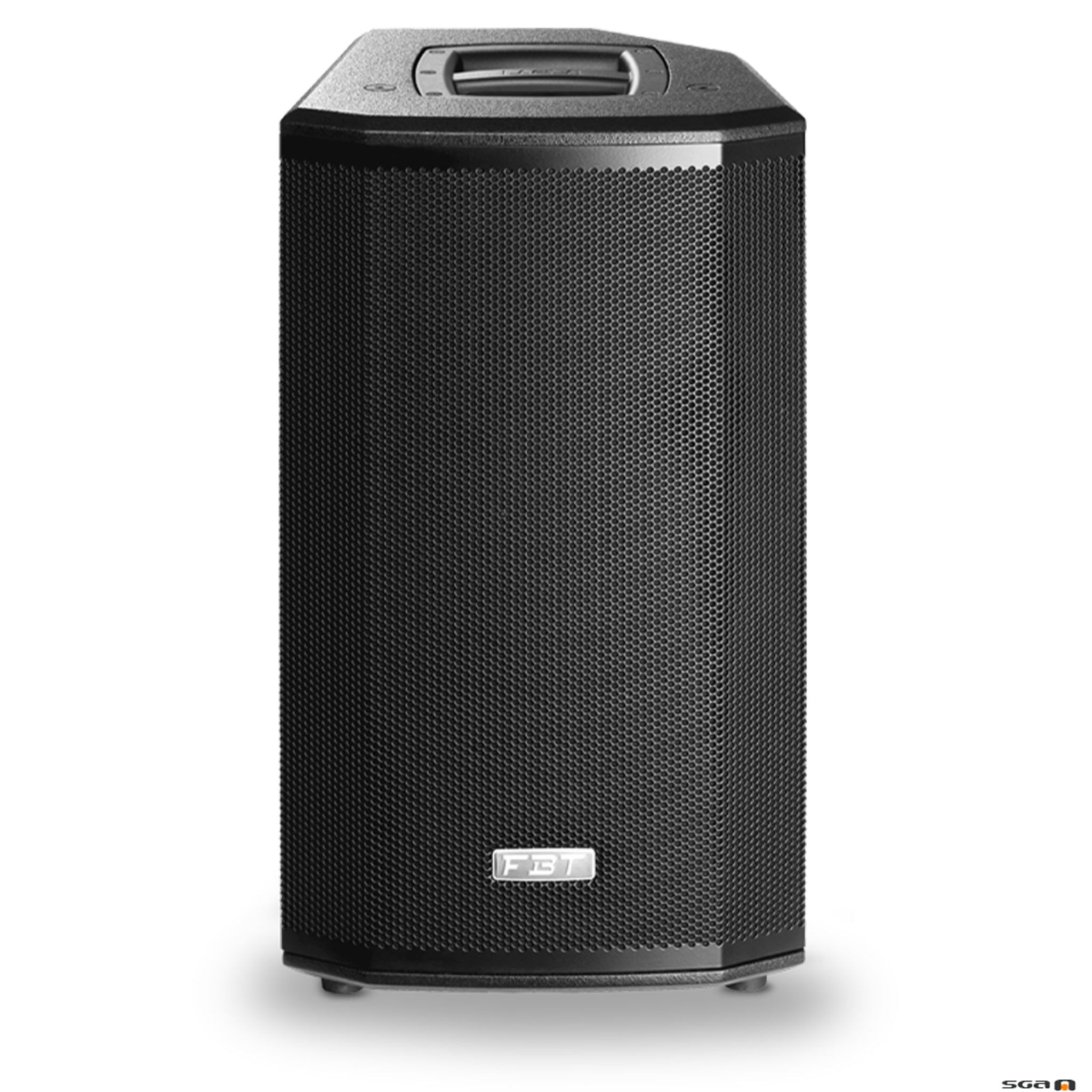

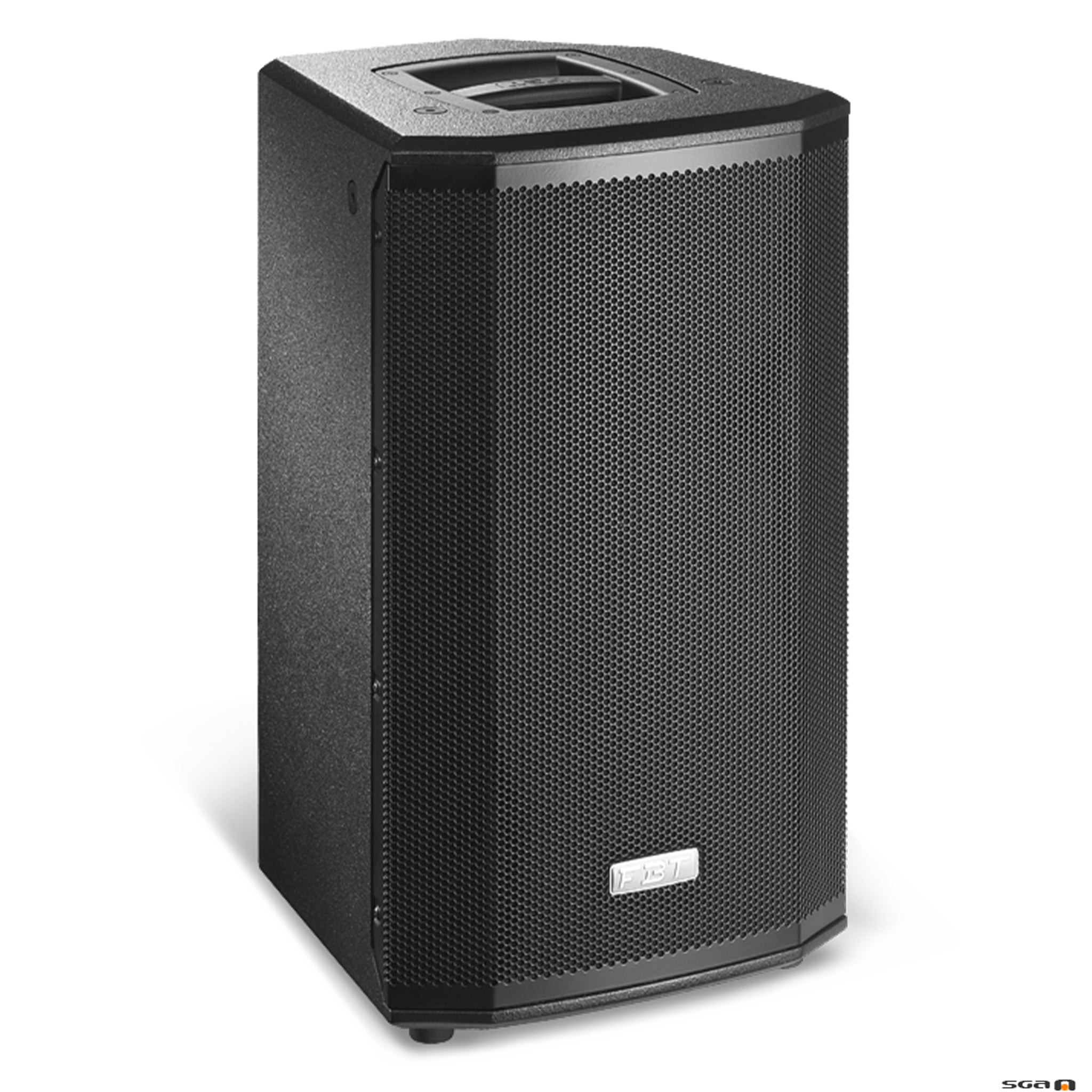

The FBT Ventis 110 is a compact yet powerful passive 2-way loudspeaker designed to deliver exceptional performance across a wide range of applications, from fixed installations to portable stage use. Incorporating a 10" LF woofer with a 2" voice coil and a 1" exit throat B&C HF compression driver with a 1.4" voice coil, the FBT Ventis 110 ensures clear, full-range sound reproduction. The fully rotatable constant directivity horn provides precise coverage, delivering 80° horizontal and 50° vertical dispersion, making it ideal for a variety of settings, including small venues and stage monitoring.
With a frequency response range from 60Hz to 18kHz, the FBT Ventis 110 offers high fidelity sound for both speech and music applications. The speaker's maximum SPL of 127dB ensures sufficient output for small to medium-sized venues while maintaining clarity and accuracy. The internal crossover operates at a fixed frequency of 1.8kHz, facilitating smooth integration between the low and high frequencies. The FBT Ventis 110 has an impedance of 8 ohms, and it is optimized for use with a 300W RMS amplifier.

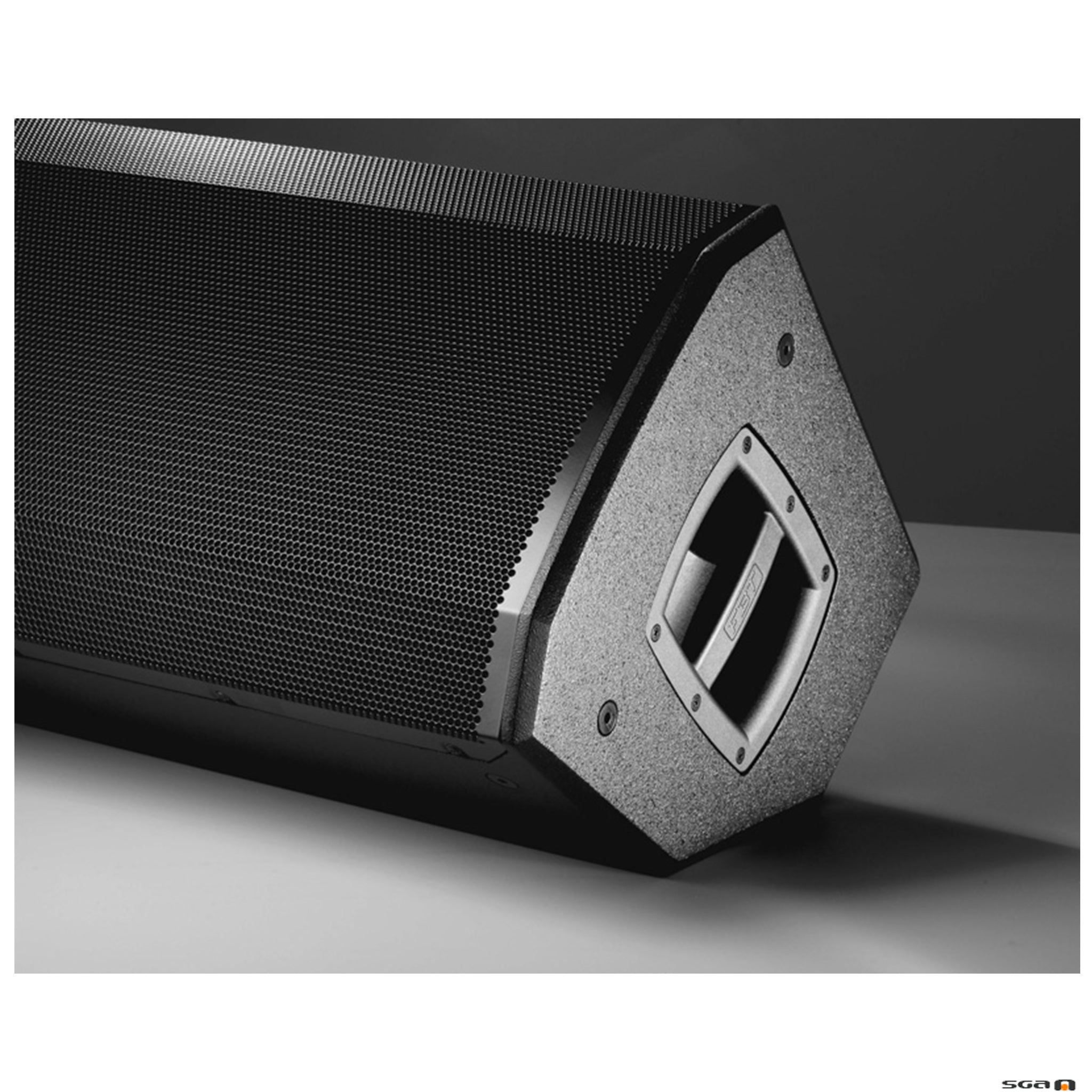

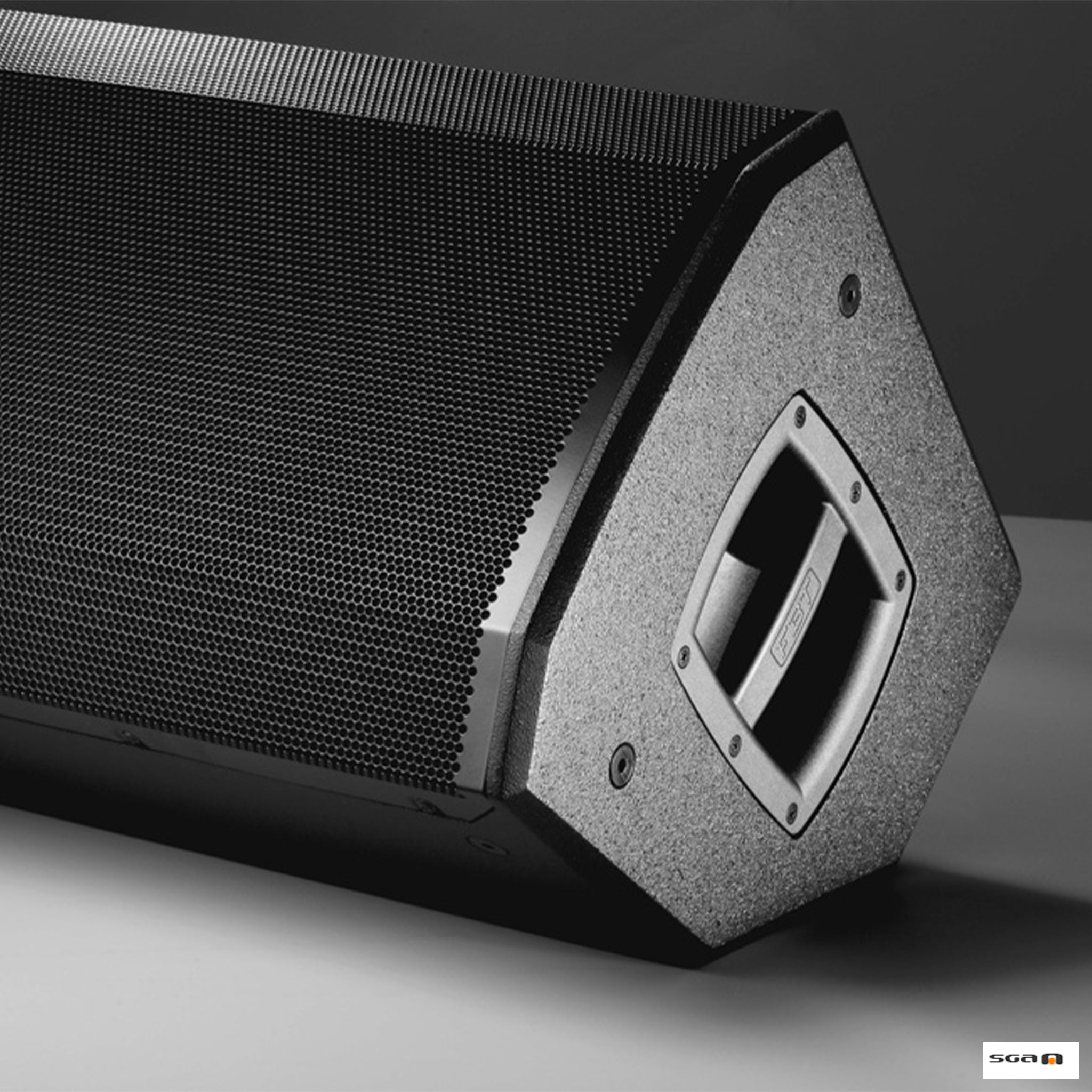

Constructed from durable 0.59" birch plywood with a scratch-resistant black finish, the FBT Ventis 110 is designed to withstand the rigors of both touring and permanent installations. It features a single aluminum handle for easy portability, making it ideal for quick setups and takedowns. The rear panel of the speaker includes two Neutrik Speakon NL4 connectors for secure and reliable connections. Additionally, the FBT Ventis 110 can be mounted on walls or ceilings with an optional mounting bracket, enhancing its versatility in different installation scenarios.
In summary, the FBT Ventis 110 offers excellent sound quality, robust construction, and flexible deployment options, making it a great choice for both live sound reinforcement and fixed installations. Whether you're looking for a portable speaker for events or a reliable solution for permanent installations, the Ventis 110 provides outstanding performance in a compact and durable package.
- 2-way passive loudspeaker with a 10-inch LF woofer and 1-inch exit throat B&C HF compression driver
- Frequency response from 60Hz to 18kHz, with a maximum SPL of 127dB
- 80° horizontal and 50° vertical rotatable constant directivity horn for precise coverage
- Recommended amplifier power: 300W RMS with long-term power handling of 150W and short-term power of 600W
- Built-in passive crossover at 1.8kHz for smooth integration of low and high frequencies
- Constructed from durable 0.59" birch plywood with a scratch-resistant black finish
- Two Neutrik Speakon NL4 connectors for reliable input and link-out connections
- Optional mounting bracket for surface mounting on walls or ceilings
- Weighs 33.28 lbs for easy transport with a single aluminum handle
- General Configuration: 2-way
- Recommended Amplifier (rms): 300W
- Long Term Power: 150W
- Short Term Power (IEC 268-5): 600W
- Nominal Impedance: 8 Ohms Acoustical
- Frequency Response (-6dB): 60Hz - 18kHz
- Low Frequency Woofer: 10-inch, 2-inch coil
- High Frequency Driver: 1-inch, 1.4-inch coil
- Sensitivity (@1W/1mt): 97dB
- Max SPL cont/peak: 122dB / 127dB
- Dispersion: 80° x 50°, rotatable
- Crossover Frequency: 1.8kHz
- Recommended HP Filter: 50Hz-24dB oct Inputs/Outputs
- Input Connectors: 2 x speakon NL4 Mechanical
- Dimensions (WHD): 12.95 x 22.04 x 12.79 inches
- Net Weight: 33.28 lbs
- Transport Dimensions (WHD): 16.81 x 26.18 x 15.23 inches
- Transport Weight: 38.80 lbs
