Multiformat IP Audio Decoder with stereo line level audio output on RCA connectors
The Exstreamer M400 feeds your PA and turns it into an extensive Audio over IP system. A wide variety of audio environments, such as Dante ®, SIP, InformaCast and Syn-Apps are supported. Codecs include PCM, AACplus, MP3, OPUS, G.711, G.722 that can be streamed using HTTP and RTP.
Audio files can be stored on the internal memory and their playback can be triggered via a simple UDP command. Thanks to the priority handler, the Exstreamer M400 can be configured to switch between sources according to one of the five priority settings and therefore eliminates the need for an audio matrix device.

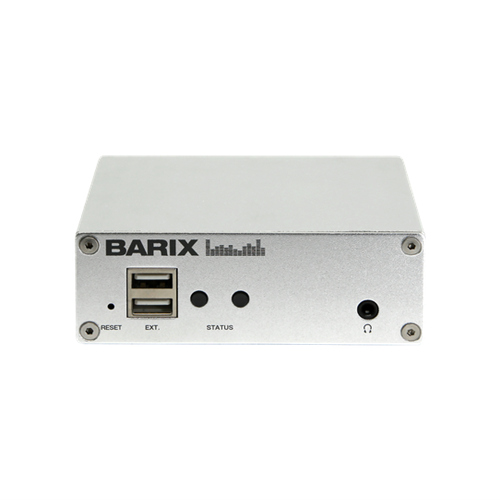

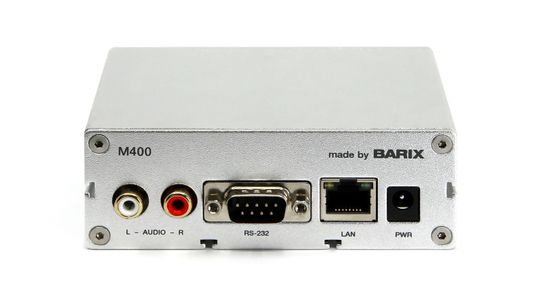

The M400 is a solid metal device, compact and easily installed. It is connected to your amplifier, DSP or audio mixer via a stereo output on RCA connectors. The configuration of the device is done via the local web interface.
Specifications
OPERATION SYSTEM:
- Embedded Linux based on Yocto
NETWORK INTERFACES:
- 1 x Ethernet (RJ45) Interface
- IPv4, IPv6 capable
- 10/100 fdx/hdx, auto negotiation
PROTOCOLS:
- TCP/IP, UDP, RTP, SIP, CGI, HTTP, DHCP
- Syn-Apps Revolution compatibility
- For InformaCast see BX-BAR20209298.
AUDIO INTERFACE:
- Balanced mono Line level output on screw terminal
- connectors
- Headphone connector on the front panel
AUDIO FORMATS:
- MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
- AAC-HE (AAC, AAC plus, AAC plus V2)
- PCM linear 16bit @44.1 kHz
- 711
- Opus, WAV, OGG Vorbis
RS-232 INTERFACE:
- Serial Port
CPU / MEMORY:
- Barix IPAM400 Processor Module
- Quad-Core ARM Cortex™ -A7
- 2GB DDR3 SDRAM
- 16MB SPI Flash
- 8GB SD-Card Flash
USER INTERFACE
- Flexa portal for configuration
- 2 x Multicolor LED Status indicators
- Reset & Factory Defaults Button
POWER REQUIREMENTS:
- 5VDC, 10W Male connector: 5.5 x 2.1 mm (positive polarity)
- MTBF: > 200’000h
- MEASUREMENT: 7mm (4.25x1.5x3.1 inch
- WEIGHT: 250g
- WARRANTY: Two years
