Australian Monitor SH10
Australian Monitor SH10 Horn Speaker. 10W with 100V Taps 10, 5, 2.5, 1.245W & 8Ω. Fitted with supervisory capacitor. IP66 rated
Regular price
$99.00
Regular price
$110.00
Sale price
$99.00
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$99.00
Regular price
$110.00
Sale price
$99.00

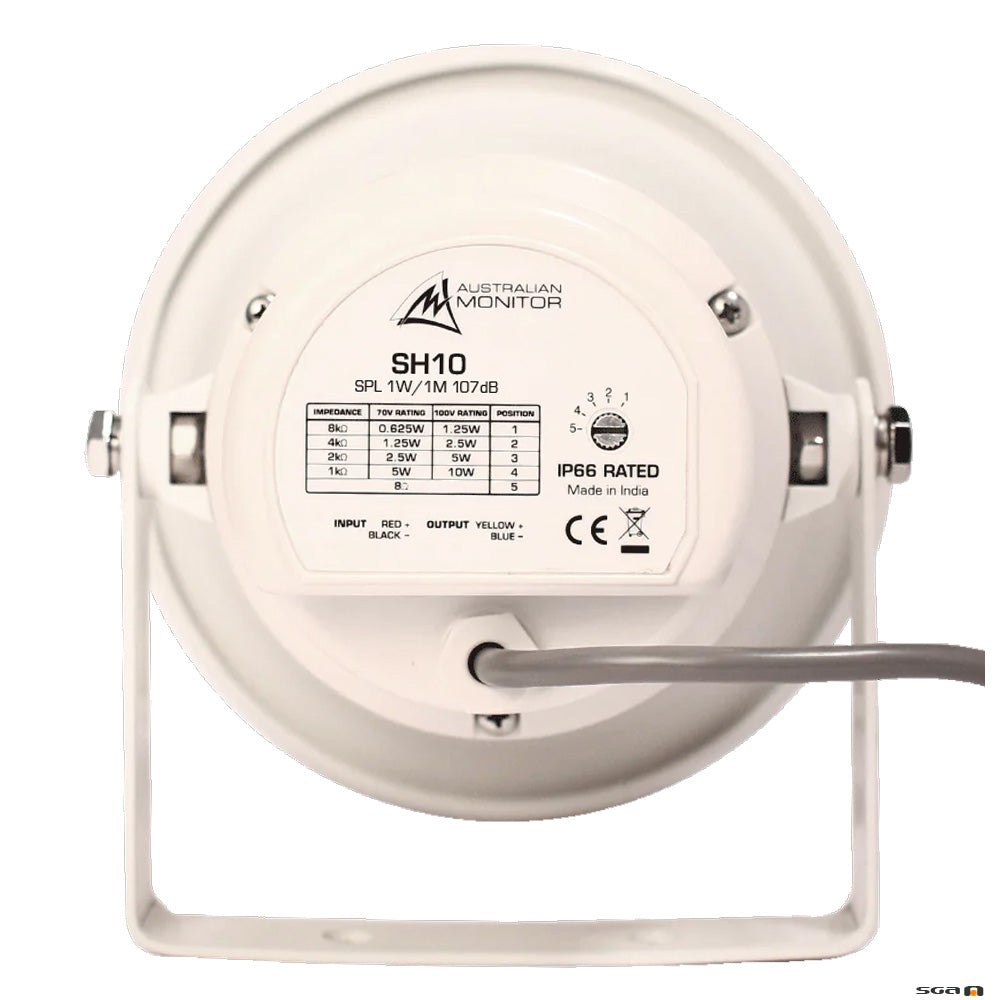

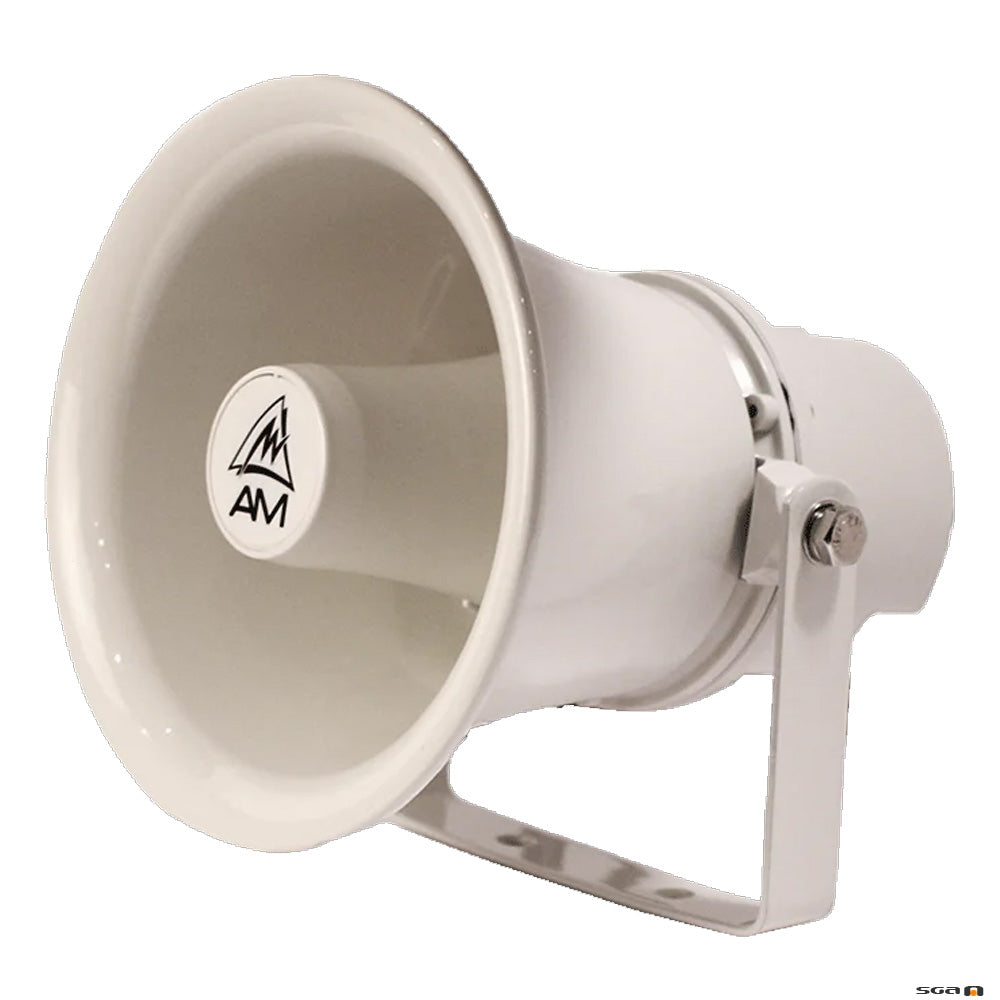

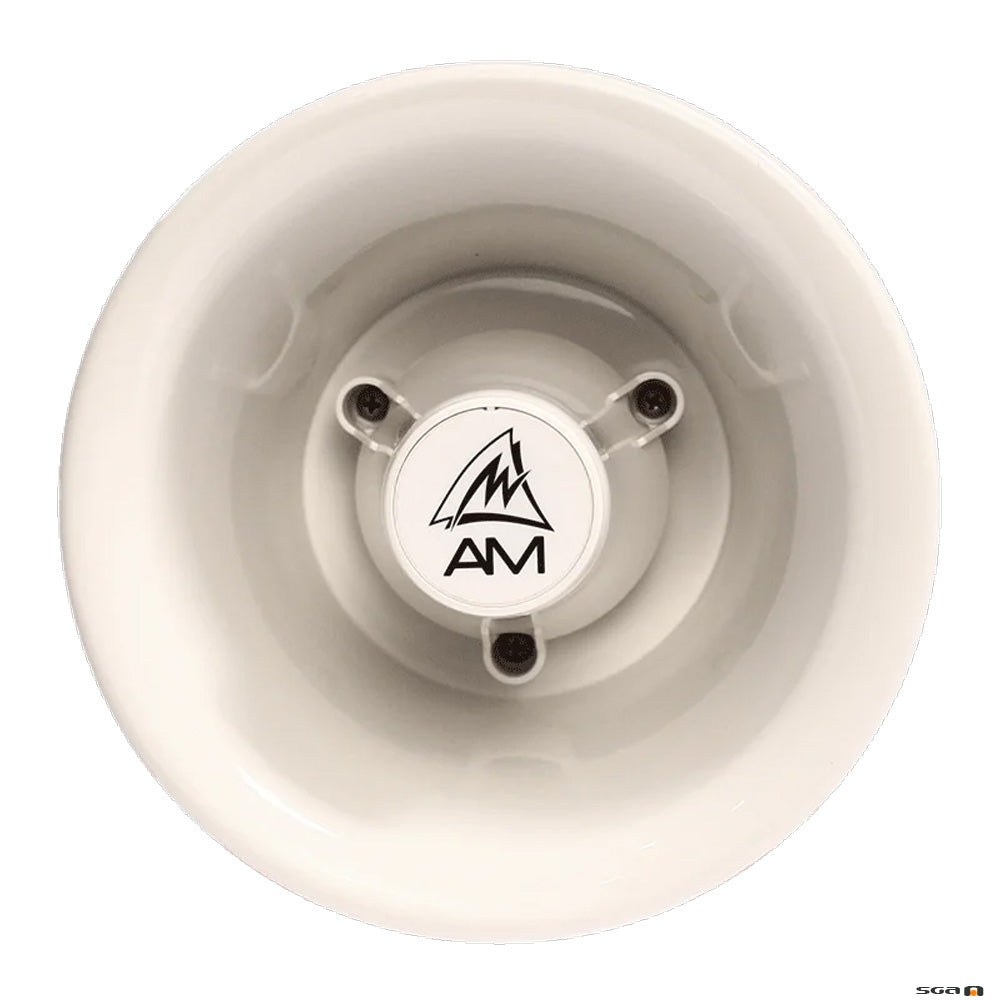

The Australian Monitor SH10 horn speaker is both constant voltage and low impedance, designed for paging and background music systems requiring vocal clarity and sound projection.
100V taps @ 10, 5, 2.5, 1.245W & 8Ω. Fitted with supervisory capacitor. IP66 rated
*Replaces ATC10
• 10 watts power rating RMS
• Power taps 10, 5, 2.5, 1.25W and 8 ohm
• Frequency response 350Hz-9.5kHz
• 107 dB sensitivity (1W/1M)
• Aluminium flare and ABS housing
• Includes capacitor for EVAC purposes
• 1.4kg
• Power taps 10, 5, 2.5, 1.25W and 8 ohm
• Frequency response 350Hz-9.5kHz
• 107 dB sensitivity (1W/1M)
• Aluminium flare and ABS housing
• Includes capacitor for EVAC purposes
• 1.4kg
| Form Factor | Horn | Max Continuous Power | 10W |
| Tappings | 10W-5W-2.5W-1.25W-8 Ohm | Max Program Power | 20W |
| IP Rating | IP66 | Max Peak Power | 40W |
| EASE Model | No | SPL 1W/1m | 107dB |
| Powered | Passive | Max SPL RMS | 117dB |
| Driver Diameter | 34mm | Max SPL Peak | 123dB |
| Colour | White | Frequency Response (-3dB) | 350Hz - 9.5kHz |
| Warranty | 5 years | Dispersion | N/A |
| Product Dimensions (W x D x H) | 177mm x 196mm | Shipping Dimensions (W x D x H) | 200mm x 200mm x 210mm |
| Net Weight | 1.4 Kg | Shipping Weight | 1.7 Kg |
| GTIN EAN | 9323383020672 |
