TOA WS5225

TOA WS5225 16 Channel Diversity Wireless Microphone Receiver pack w WT5810 Receiver, electret condenser microphone WM5225. Available in 636-666MHz or 578-606MHz.

Original price was: $919.00.Current price is: $827.10.

In Stock

Description

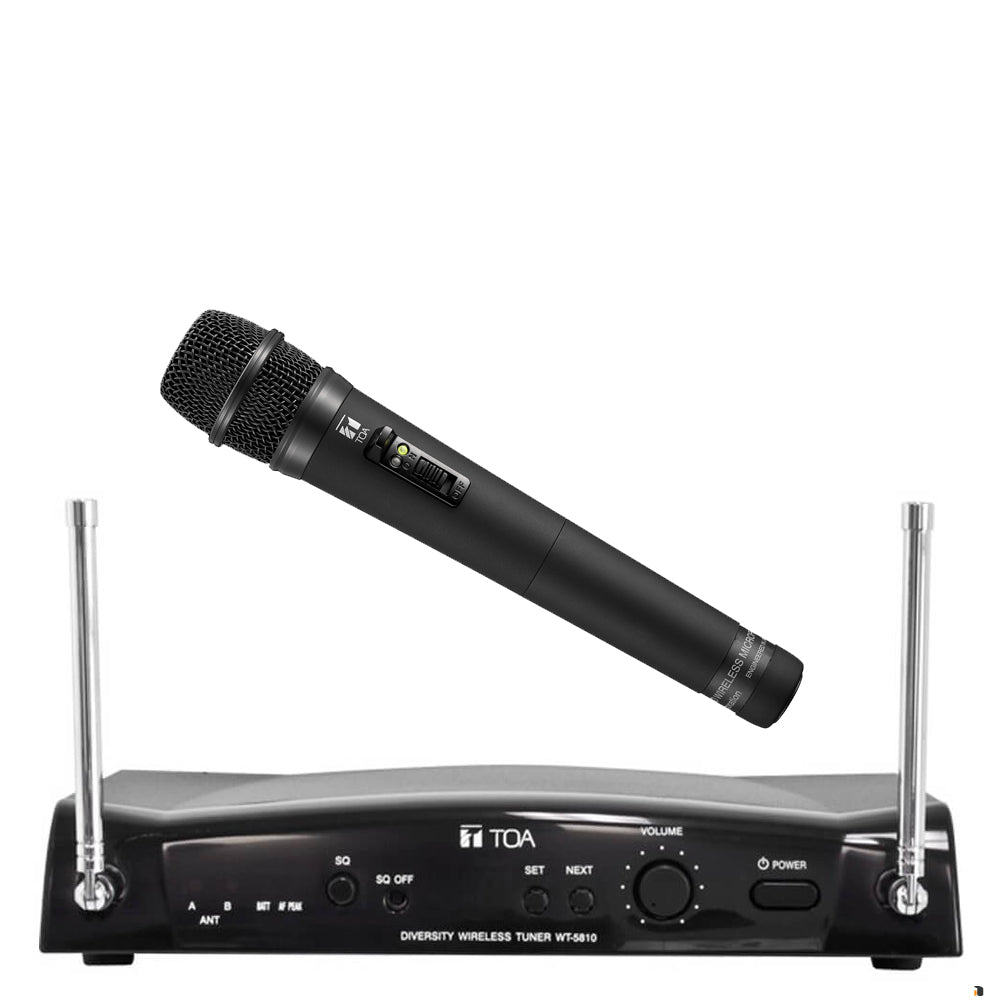

TOA WS5225 16 Channel diversity kit includes the 16 channel diversity receiver WT5810 and Electret condenser wireless handheld microphone WM5225

Launch into the world of reliable TOA wireless microphone systems. Designed for use with a range of wireless handheld microphones, to lapels, to headsets.

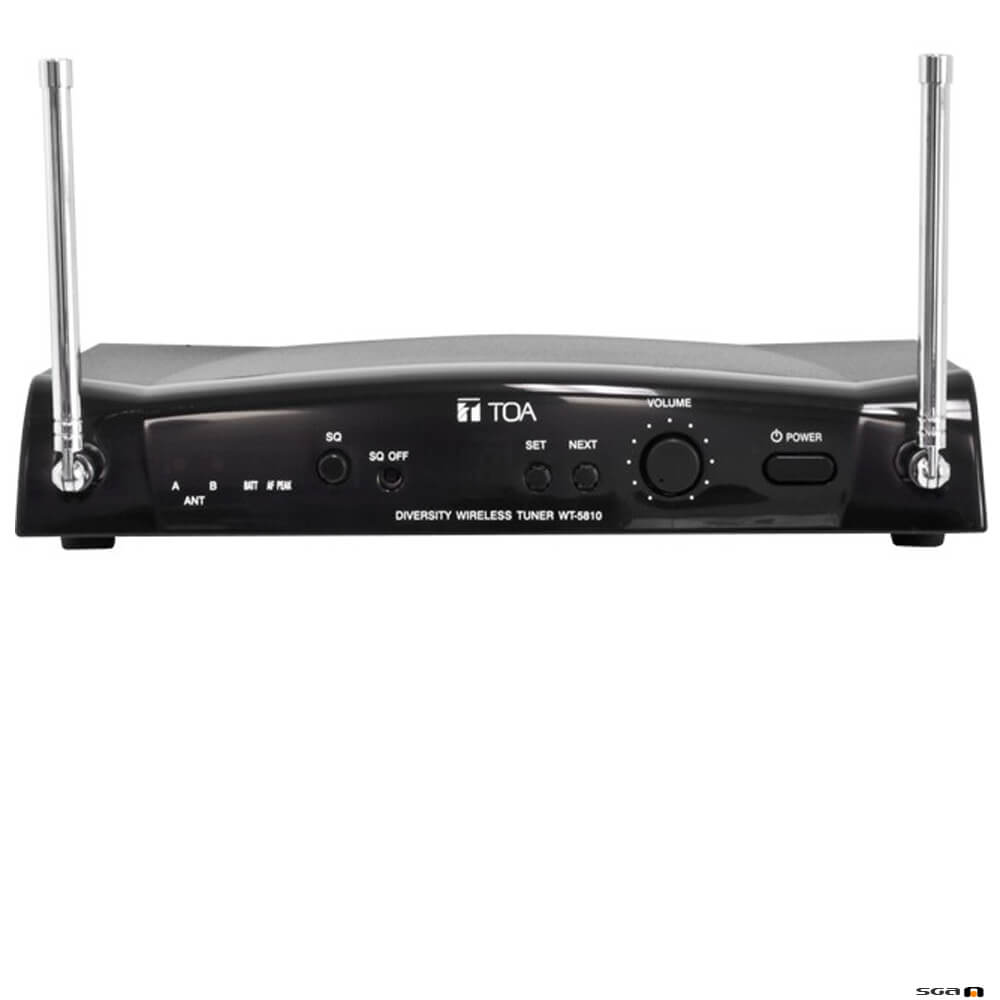

It features a compounder circuit that minimizes the influence of ambient noise. 16 different operating frequencies ranging from 576 to 865 MHz. The TOA WT5810 with its optimized PLL-synthesizer minimizes the oscillation frequency drift resulting from the ambient temperature change. Compact size and high reliability. Not rack mountable.

Wireless Microphones?work on radio frequencies that enable the sound to travel through a transmitter to a receiver. Wireless Microphones are cable free. No need for annoying cables.

Wireless Microphone systems are ideal for a variety of applications ? everyone from stage performers to reporters to educators.

Package Includes: The price listed here is for the TOA WS5225 package which includes a Wireless Microphone Receiver WT5810 with Electret condenser microphone WM5225

Available in the following bands;
636-666MHz (WS5225F01AS) or 578-606MHz (WS5225H01AS)

Antenna Diversity Kits Available:

WS5265 16 Channel Receiver WT5810 w/ WM5265 Handheld Dynamic Microphone
WS5225 16 Channel Receiver WT5810 w/ WM5225 Handheld Electret Condenser Microphone
WS5325U 16 Channel Receiver WT5810 w/ WM5325 Beltpack Transmitter, YPM5300 Uni directional Lapel Microphone
WS5325M 16 Channel Receiver WT5810 w/ WM5325 Beltpack Transmitter, YPM5310 Omni directional Lapel Microphone
WS5325H 16 Channel Receiver WT5810 w/ WM5325 Beltpack Transmitter, WH4000H Head Set Microphone

Features

  • Phase Locked Loop (PLL) synthesis operation
  • 16 selectable channel frequencies
  • TOA space diversity technology
  • Double super-heterodyne receiving system
  • Auto mixing input function
  • Squelch function (carrier,noise, tone)

Specifications

(*1) 0 dB = 1 V
Power Source AC mains (supplied AC adapter must be used)
Power Consumption 130 mA (12 V DC)
Receiving Frequency 578 – 606 MHz or 636-666MHz
Channel Selectable 16 channels
Receiving System Double super-heterodyne
Diversity System Space diversity
Mixing Output MIC: -60 dB (*1), 600 Ω, balanced, XLR-3-32 type connector
LINE: -20 dB (*1), 600 Ω, unbalanced, phone jack
Mixing Input -20 dB (*1), 10 kΩ, unbalanced, phone jack
Antenna Whip antenna
Receiving Sensitivity 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
Squelch Sensitivity 16 – 40 dBμV variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Tone Frequency 32.768 kHz
Indicator ANT A/B, Audio (peak), Battery alarm, Channel number
Channel Check Usable frequencies scanning
Signal to Noise Ratio 104 dB or more (A-weight, unbalanced output)
Harmonic Distortion 1 % or less (typical)
Frequency Response 100 Hz – 15 kHz, ±3 dB
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity 30 % to 85 %RH
Finish Resin, black
Dimensions 206 (W) × 40.6 (H) × 152.7 (D) mm (8.11″ × 1.6″ × 6.01″) (excluding antenna)
Weight 590 g (1.3 lb)
Accessory AC adapter (*3)…1

Downloads

toa-5000_series_brochure
