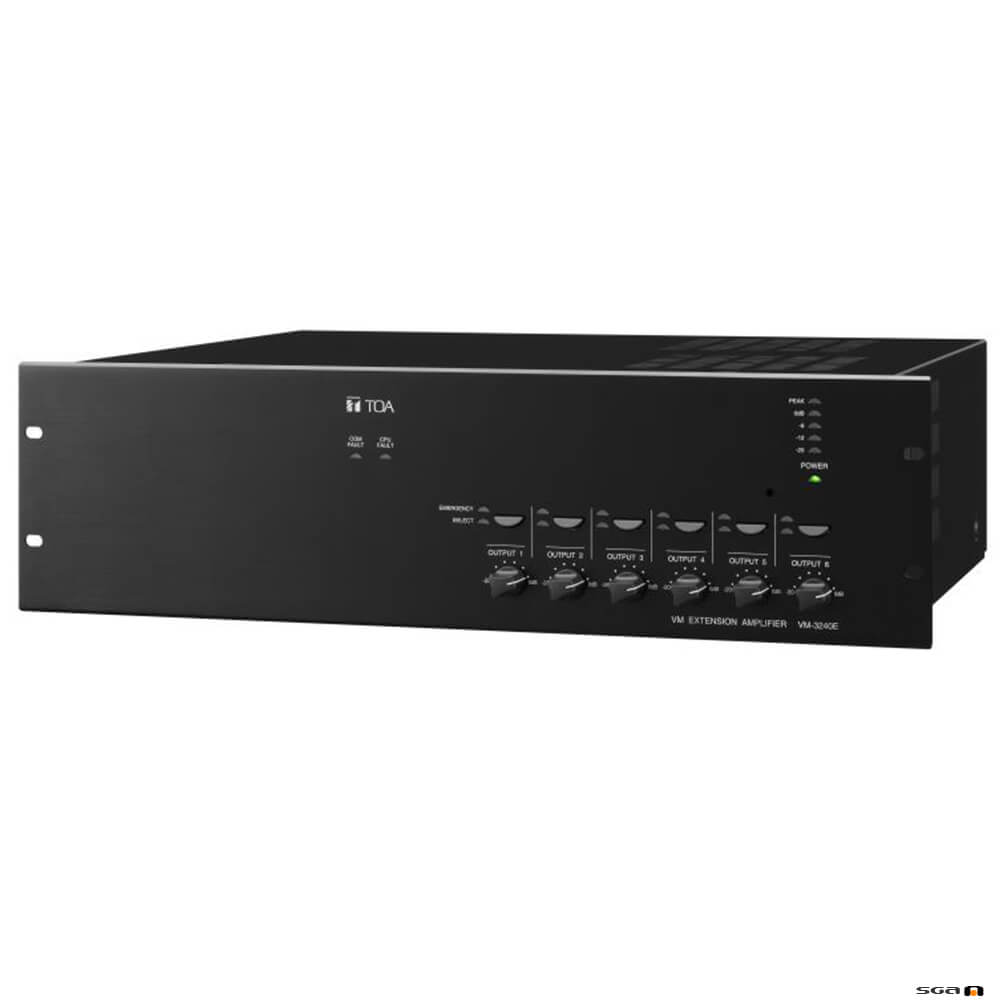

TOA VM3240E

TOA VM3240E 240W 6 zone extension amplifier. (Special Order/ Indent Item)

Original price was: $4,499.00.Current price is: $4,049.10.

In Stock
SKU: VM3240E Category: Tag:

Description

The TOA VM3240E is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size).

The TOA VM3240E amplifier comes with the speaker output section which has an internal attenuator and 6-output selector. In addition, the unit features the surveillance function which automatically checks the system for failures.

System management amplifier can be expanded by connecting up to 9 extension amplifiers. The 2 models available are 240W (VM3240E) or 360W (VM3360E). 6 speaker line outputs, 8 control inputs and 8 control outputs for general purpose.
6 control inputs for emergency purpose and 3 control outputs for status information. Connection to system management amplifier via VM Link.

Optional Microphone Accessories include: Emergency remote microphones RM-300MF / RM-320F.

Remote Microphones RM-200M / RM-210.

Continuously TOA brings the knowledge gained from years of experience in the development and production of sound and security
systems, which is reflected in the high reliability of many installations worldwide.

The VM-3000 series is a cost-effective integrated public address and voice alarm system engineered with powerful digital signal processor (DSP). It is designed to fulfil the EN 54 European regulation for voice alarm as well as the UL 2572 and CAN/ULC-S576 certification, which complies with new NFPA 72 code governing Mass Notification Systems.

So the VM-3000 series not only ensures voice alarm in an emergency but also high quality audio broadcasting. The compact design enables the system to fit best in various small to medium sized applications such as schools, shopping centres or restaurants.

(Special Order/ Indent Item)

Features

  • System management amplifier can be expanded by connecting up to 9 extension amplifiers
  • 240 W rated output
  • 6 speaker line outputs
  • 8 control inputs and 8 control outputs for general purpose
  • 6 control inputs for emergency purpose and 3 control outputs for status information
  • Connection to system management amplifier via VM Link

Specification

Power Source 230 V AC, 50/60 Hz
Power Consumption 600 W (with rated output signal), 260 W (according to EN60065)
Rated Output 240 W
Frequency Response 50 Hz – 20 kHz, ±3 dB (at 1/3 rated output)
Distortion 0.7 % or less (at rated output, 1 kHz)
S/N Ratio 85 dB or more
Input External amplifier input: 100 V line, removable terminal block (14 pins)
Output Speaker output 1 – 2: Max. (240 W) per output
Speaker output 3 – 6: Max. (120 W) per output
Speaker output 1 – 6: Total within 240 W, removable terminal block (14 pins)
Allowable minimum load: 500 Ω (20 W) at 100 V line for speaker line failure detection
Direct output: Direct output from internal or external amplifier,
removable terminal block (16 pins)
VM Link Input: Connecting the VM-3240VA or VM-3360VA, RJ45 female connector
Output: Connecting the VM-3240E or VM-3360E, RJ45 female connector
Maximum distance: 800 m (874.89 yd)
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
EXT PA Link Connecting the VP-2241, RJ45 female connector
Maximum distance: 5 m (16.4 ft)
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
General Control Input 1 – 8: No-Voltage make contact input, open voltage: 24 V DC,
short-circuit current: 2 mA or less, removable terminal block (14 pins)
Output 1 – 8: Isolated open collector output, withstand voltage: 30 V DC,
operating current: 10 mA or less, removable terminal block (14 pins)
Emergency Control Input 1 – 5: No-Voltage make contact input, open voltage: 24 V DC,
short-circuit current: 2 mA or less, RJ45 female connector
Input 6: Isolated voltage input, Inactive: -24 V ±20 %, Active: +24 V ±20 %,
RJ45 female connector
Status out: Relay contact output, withstand voltage: 40 V DC,
operating current: 2 – 300 mA, RJ45 female connector
ATT Control Relay contact 1-6, 125 V AC or 30 V DC, total under 5 A,
removable terminal block (16 pins)
Power Input/Output Power in: Connecting the VX-2000DS only (operating range: 20 – 40 V DC)
PS out: 28 V DC/18 A
M4 screw terminal, distance between barriers: 11 mm (0.43″)
DC24V Output 24 V DC, Maximum feeding current 0.3 A
Ds Link Connecting the VX-2000DS, RJ45 female connector
Maximum distance: 5 m (16.4 ft)
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
Operating Temperature -5 ℃ to +45 ℃ (23 ゜F to 113 ゜F)
Operating Humidity 5 % to 95 %RH (no condensation)
Finish Panel: Aluminum, hairline, black
Case: Surface-treated steel plate, black, paint
Dimensions 482 (W) × 132.6 (H) × 407 (D) mm (18.98″ × 5.22″ × 16.02″)
Weight 16.5 kg (36.38 lb)
Accessory Power cable (2 m (6.56 ft)) …1, Link cable (3 m (9.84 ft)) …2,
Plastic foot …4, Plastic foot mounting screw …4,
Removable terminal plug (14 pins) …3, Removable terminal plug (16 pins) …1
