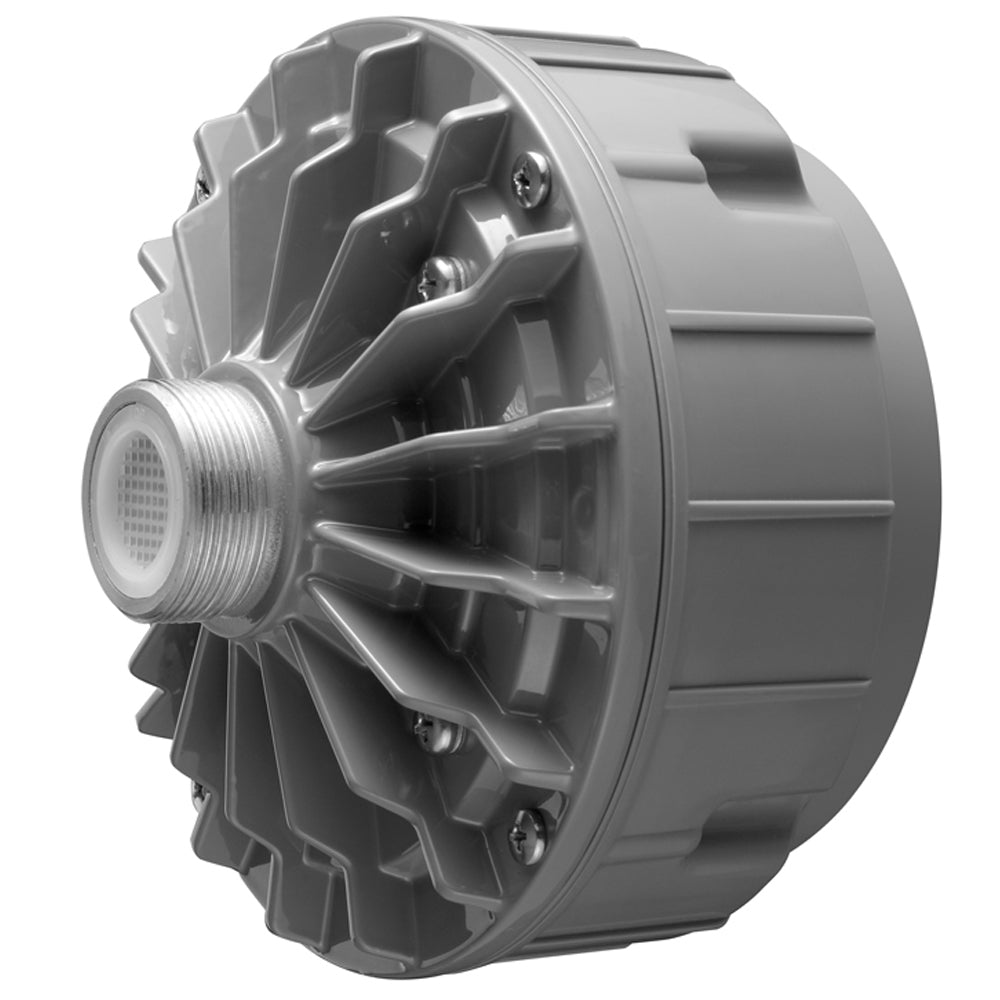

Premium 60 Watt Driver Unit, 16 Ohm, 110dB, 150Hz – 8kHz, for TH650 or TH660
Original price was: $169.00.$160.55Current price is: $160.55.
In StockThe TOA TU660 is a highly intelligible 60W speaker horn driver unit suited to public address announcement applications. It is Low-impedance (16 ?) has a Frequency Response of 150 Hz – 8 kHz and IP65 certified weatherproof construction. Its powder-coated finish and stainless steel screws ensure the unit’s weatherproof capability.
Use the driver unit in combination with a suitable horn such as the TH650, or TH660 (flare horns are optional).
| Applicable Horns | TH-650, TH-660 |
|---|---|
| Rated Input | 60 W |
| Rated Impedance | 16 Ω |
| Sensitivity | 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.) |
| Frequency Response | 150 Hz – 8 kHz (When operated with JIS C 5504 standard horn.) |
| Dust/Water Protection | IP65 (When a driver is operated with a horn.) |
| Horn Coupling | 1 – 3/8 18 threads (inch screw) |
| Polarity | Hot: Black, Com: White |
| Operating Temperature | -20 ℃ to +55 ℃ (-4 ゜F to +131 ゜F) (no condensation) |
| Finish | Flange: Aluminum, gray, powder coating Rear cover: ABS resin, gray Screws: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm (0.24″) in diameter, 600 mm (23.62″) in length) |
| Dimensions | φ139 × 109 (D) mm (φ5.47″ × 4.29″) |
| Weight | 2 kg (4.41 lb) |
| Option | Driver unit cover: UC-200A Matching transformer: TM-30T, TM-60T |
