Sale!

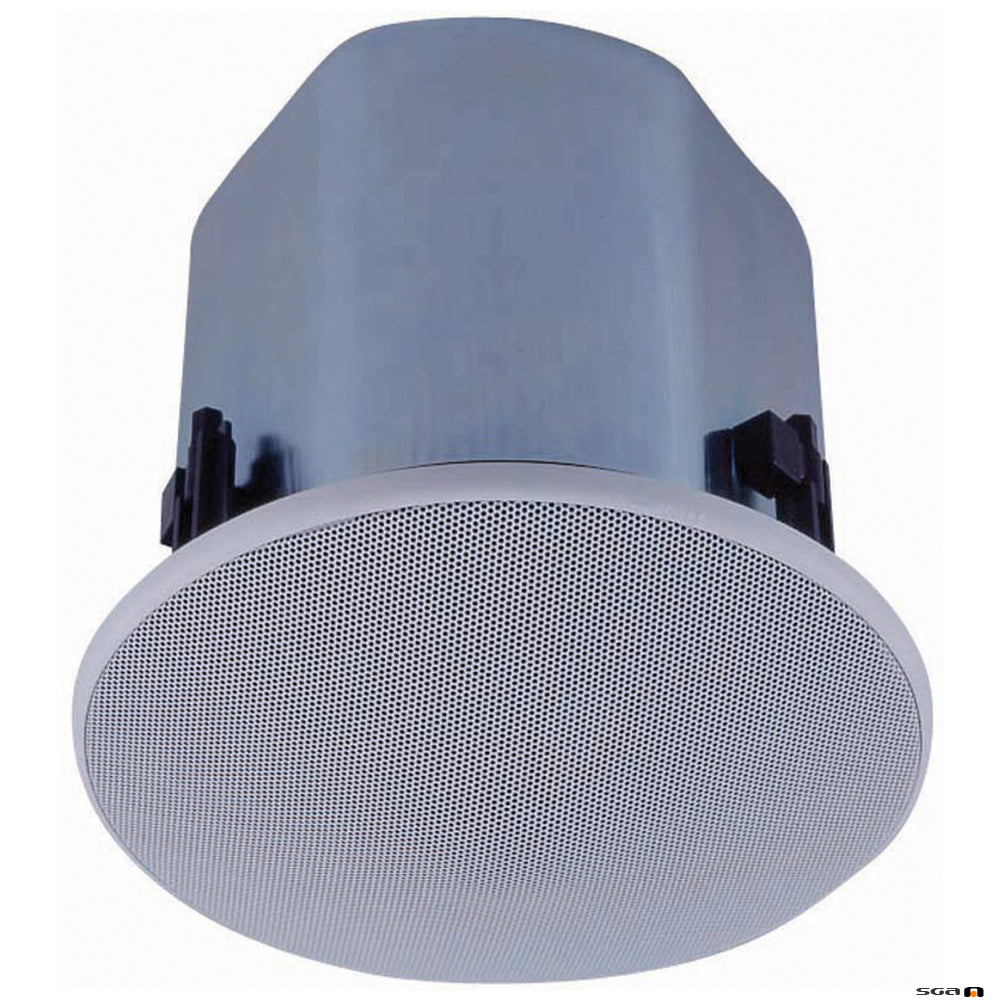

TOA F2352CEN

TOA F2352CEN 30W, 120mm Wide Dispersion, 2-way, 50Hz-20kHz, 90dB. 200mm cutout. BSI Certified AS7240.24:2018.

Original price was: $369.00.Current price is: $332.10.

In Stock
SKU: F2352C-1 Categories: , Tag:

Description

The TOA F2352CEN 5″ceiling and wall-mounted speaker covers an extremely wide area and can be used for 25, 70 and 100 V line applications.

BSI Certified for Australian Standard Fire detection and alarm systems, Fire alarm loudspeakers AS7240.24:2018.

Well-balanced sound can be heard uniformly at any location.

TOA Electronic’s F2352CEN 5″ Co-axial Ceiling Speaker is a powerful ported bass-reflex designed speaker. Featuring a special diffuser for off-axis high-frequency response and wide-dispersion for music and paging applications. The unique acoustic construction of this speaker allows for a wide area of coverage with uniform sound output levels.

Fast and easy to install, this speaker has a 5″ cone driver/dome tweeter and an attractive design with a low-profile, paintable grille that will fit in with any decor.

Ideal for places where superb sound quality is needed over a wide area. This speaker can be used at airports, offices, restaurants, museums, schools, theaters, retail stores, and more.

With a 5-year manufacturer warranty, you can be assured of this speaker’s quality and reliability.

Specifications

Enclosure Bass reflex type
Rated Input 30 W (High Impedance)
Power Handling Capacity Continuous pink noise: 60 W (8 Ω)
Continuous program: 120 W (8 Ω)
Impedance 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
25 V line: 170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W), 10 kΩ (0.06 W)
8 Ω
Sensitivity 90 dB (1 W, 1 m)
Frequency Response 70 Hz – 20 kHz (-10 dB), 50 Hz – 20 kHz (-20 dB)
at installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling.)
Speaker Component High frequency: Balanced dome-type, Low frequency: 12 cm cone-type
Mounting Hole φ200 mm (Maximum ceiling thickness: 37 mm)
Input Terminal Removable locking connector with screw-down terminals
(2 input terminals and 2 bridge terminals)
Usable Cable Solid copper wire: φ0.5 – φ1.6 mm (equivalent to AWG No. 24 – 14)
Stranded copper wire: 0.2 – 2.5 m㎡ (equivalent to AWG No. 24 – 14)
Finish Enclosure: Steel plate, plating
Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
Punched net: Steel plate, white, paint
Dimensions φ230 × 229 (D) mm
Weight 3.7 kg (including mounting accessories)
Accessory Panel ……1, Ceiling reinforcement ring ……1, Safety wire ……1, Paper pattern …1
Option Anchor hanging bracket: HY-AH1, Back can: HY-BC1, Tile bar bridge: HY-TB1, Trim ring: HY-TR1

Downloads

f-2352c_data_sheet
