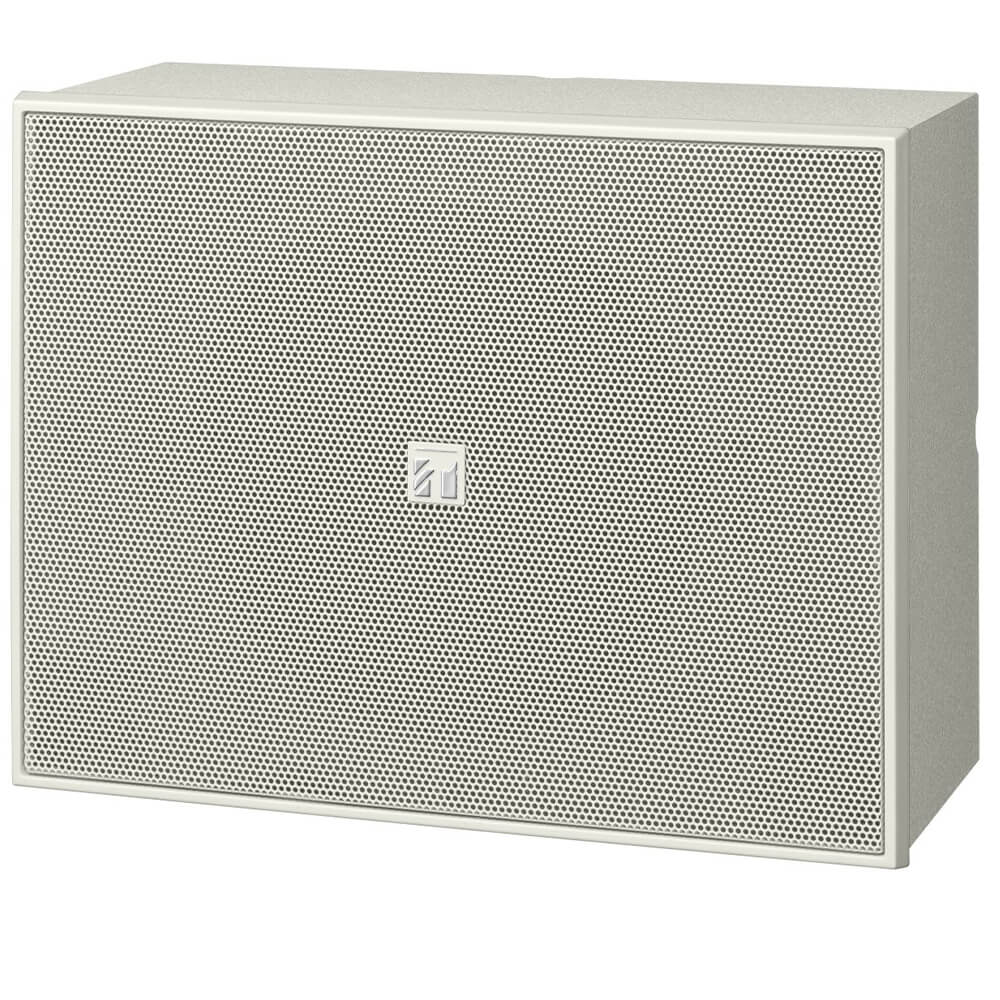

TOA BS678BSW

TOA BS678BSW 6W 6″ Twin Cone Box Speaker/Metal Grille, 100V line-white. BSI Certified AS7240.24:2018.

Original price was: $115.01.Current price is: $109.25.

In Stock
SKU: BS678BSW Category: Tag:

Description

TOA BS678BSW Box Speaker 6 Watt 6″ Twin Cone Metal Grille, 100 Volt line – white.

The TOA BS678BSW is the voice alarm certification product. BSI Certified for Australian Standard Fire detection and alarm systems, Fire alarm loudspeakers AS7240.24:2018.

The BS678BSW is suitable for announcement and music use in high quality sound cone speaker. Either concealed in-wall wiring or open wiring can be used for speaker cable connection. The input impedance can be easily changed by changing the tap position of the transformer.

The speaker structure that permits direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to.

  • Stylish, compact and unobtrusive design
  • Quick and easy wall-mount installation
  • Cost-effective
  • Horizontal and vertical mounting
  • Easy impedance selection
  • Bridge wiring possible
  • Certified according to EN 54-24, ISO 7240-24, AS7240.24:2018
  • Compliant with BS-5839-8

Features

  • Stylish, compact and unobtrusive design
  • Quick and easy wall-mount installation
  • Cost-effective
  • Horizontal and vertical mounting
  • Easy impedance selection
  • Bridge wiring possible
  • Certified according to EN 54-24, ISO 7240-24
  • Compliant with BS-5839-8

Specification

BS-678BSB BS-678BSW
Frequency response 150 Hz – 18 kHz 150 Hz – 18 kHz
Connection Ceramic screw terminals, thermal fuse Ceramic screw terminals, thermal fuse
Speaker component 6″ cone-type 6″ cone-type
Tappings 6 / 3 / 1.5 / 0.8 W (100 V),
3 / 1.5 / 0.8 / 0.4 W (70 V)
6 / 3 / 1.5 / 0.8 W (100 V),
3 / 1.5 / 0.8 / 0.4 W (70 V)
Finish HIPS resin, black (RAL 9011 or equivalent) HIPS resin, off-white (RAL 9010 or equivalent)
Dimensions (W x H x D) 250 x 190 x 110 mm 250 x 190 x 110 mm
Weight 1.7 kg 1.7 kg
Accessory (included) Speaker mounting screw x 2, baffle fixing screw x 2 Speaker mounting screw x 2, baffle fixing screw x 2

Downloads

CATALOG-E_VA+2016_L833TEEC286+QJ
