QSC AD-S162T

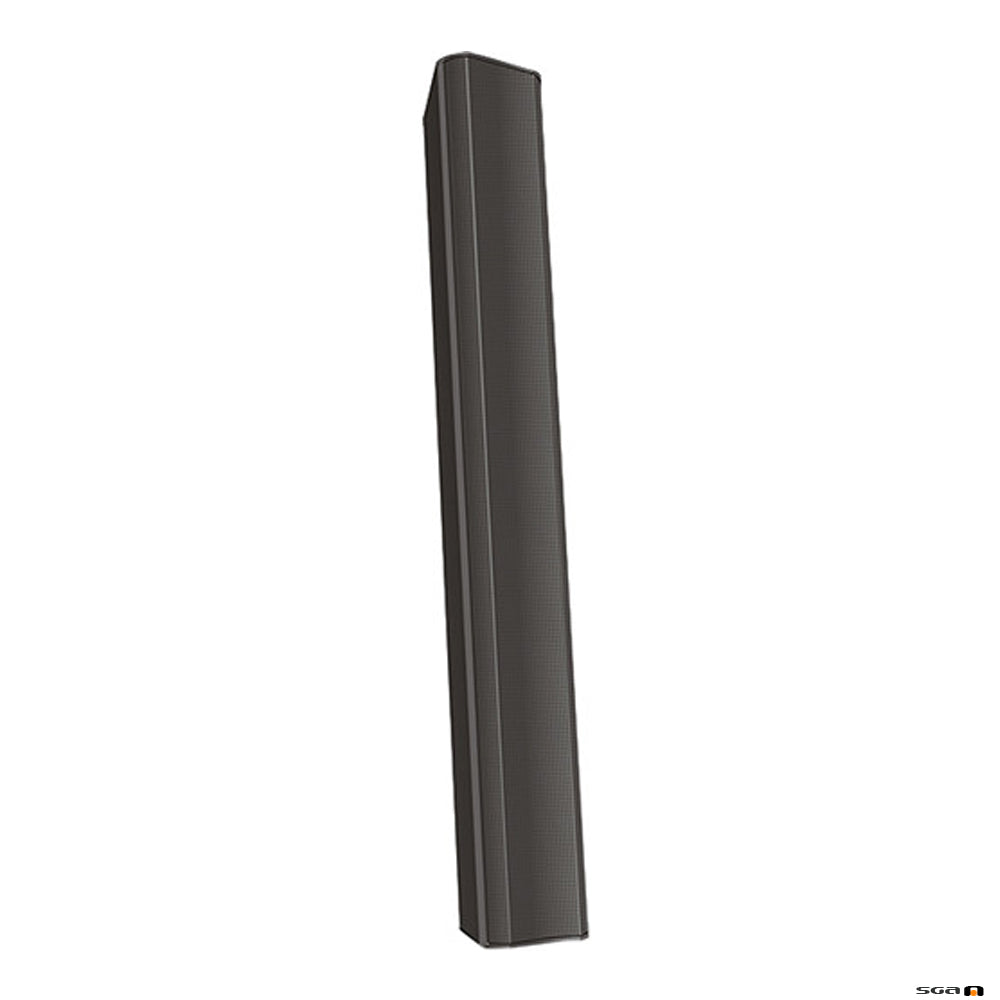

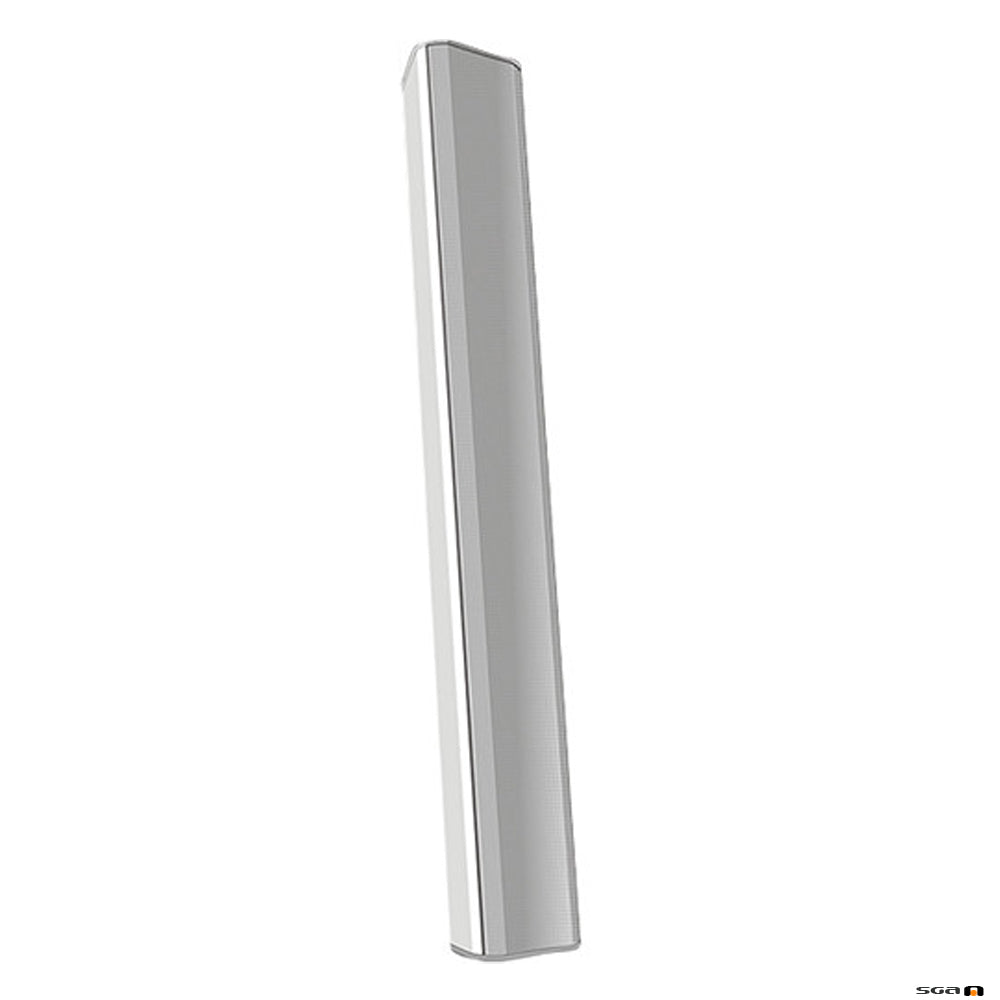

QSC AD-S162T 16 Element column speaker 70/100V/8? 150? x 15/30? coverage Inc. pan/tilt bracket. Black or White

Original price was: $2,299.00.Current price is: $2,069.10.

In Stock
SKU: N/A Category:

Description

The all-new AcousticDesign? Series AD-S162T is a 16-driver column surface-mount loudspeaker. This premium full-range system is capable of?70V/100V?or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20? downward tilt.

Features

  • Deliberately unobtrusive industrial design.
  • Available in white (RAL 9010) or black (RAL 9011).
  • Paintable enclosure and grill.
  • Complete EASE, CLF, CAD & BIM information.
  • Rugged aluminum construction.
  • UV Inhibitors in all white models.
  • IP-54 rating for dust and splash resistance.
  • Powder-coated grills and weather-treated cones.
  • Close to wall pan/tilt bracket included.
  • Low saturation 70/100V transformers.
  • 8 ohm low impedance bypass.
  • Selectable broad/narrow beam contour
  • Screw-down Euro block connector with loop-through.
  • Sealable input weather cup – keeps moisture away from wiring.

Specifications

System Details

AD-S162T

Transducer

(x16) 2.75 in (69.8 mm) weather treated paper cone woofer

Effective frequency range 1, 2, 3, 8

90 Hz – 17 kHz

Rated noise power / voltage 6

200 watts / 40 volts (rms)

Sensitivity [dB]

Rated @1W, 1m 2, 3, 4, 8 : 89 (Narrow) 88 (Wide)
EN54-24 @1W, 4m 9 : TBD

Coverage (‐6 dB) [°]
Horizontal x Vertical 9

Rated 2, 5, 8 : 160 x 15 (Narrow) / 30 (Wide)
500Hz: 180 x 52 / 52,    1kHz: 180 x 26 / 28
2kHz: 160 x 18 / 28,      4kHz: 180 x 13 / 30

Declared values of SPL, 1/3rd
octave band CPB, 1W, 4m,
EN54-24 eq applied [Hz : dB] 9

 500: TBD;   630: TBD;   800: TBD; 1000: TBD
1250: TBD; 1600: TBD; 2000: TBD; 2500: TBD
3150: TBD; 4000: TBD

Directivity factor 2, 5, 8

TBD

Directivity index [dB] 2, 5, 8

11 (Narrow) 13 (Wide)

Maximum SPL [dB]

Rated, 1m (continuous / peak) 7 : 112 / 118 (Narrow)
111 / 117 (Wide)

EN54-24, 4m (low-Z / Highest-tap) 9 : TBD / TBD

Recommended amplifier

250 watts

Transformer taps / impedance

Bypass: 8Ω
15W (70V); 30W (100V) Tap: 333Ω
30W (70V); 60W (100V) Tap: 167Ω
60W (70V); 120W (100V) Tap: 83Ω
120W (70V); N/A (100V) Tap: 42Ω

Input connector type

Euroblock connector with parallel output

Enclosure material

Powder coated aluminum

Grille material

Powder coated aluminum

Ingress protection

IP-54

Operating environment

Designed for indoor or outdoor use

Operating temperature range

-4 to 122° F (-20 to 50° C)

Net weight

26 lb (11.8 kg)

Product dimensions (H x W x D)

45.8 x 5.2 x 5-inch
(1162 x 131 x 126 mm)

Shipping Weight

32.7 lb (14.86 kg)

Shipping Dimensions (H x W x D)

12.3 x 9.9 x 54.5-inch
(312 x 251 x 1384 mm)

Included accessories

Sealed input cover plate with gland nut
Quick Hang Pan/Tilt wall bracket
Shoulder eyebolt safety tether anchor

Safety Agency

UL1480A
EN54-24: 2008 type B, (pending)
Transformer UL registered per UL1876, ROHS, CE compliant
