Name: QSC AD-C6T
SKU: 19246
Price: 947.46 AUD
Availability: InStock

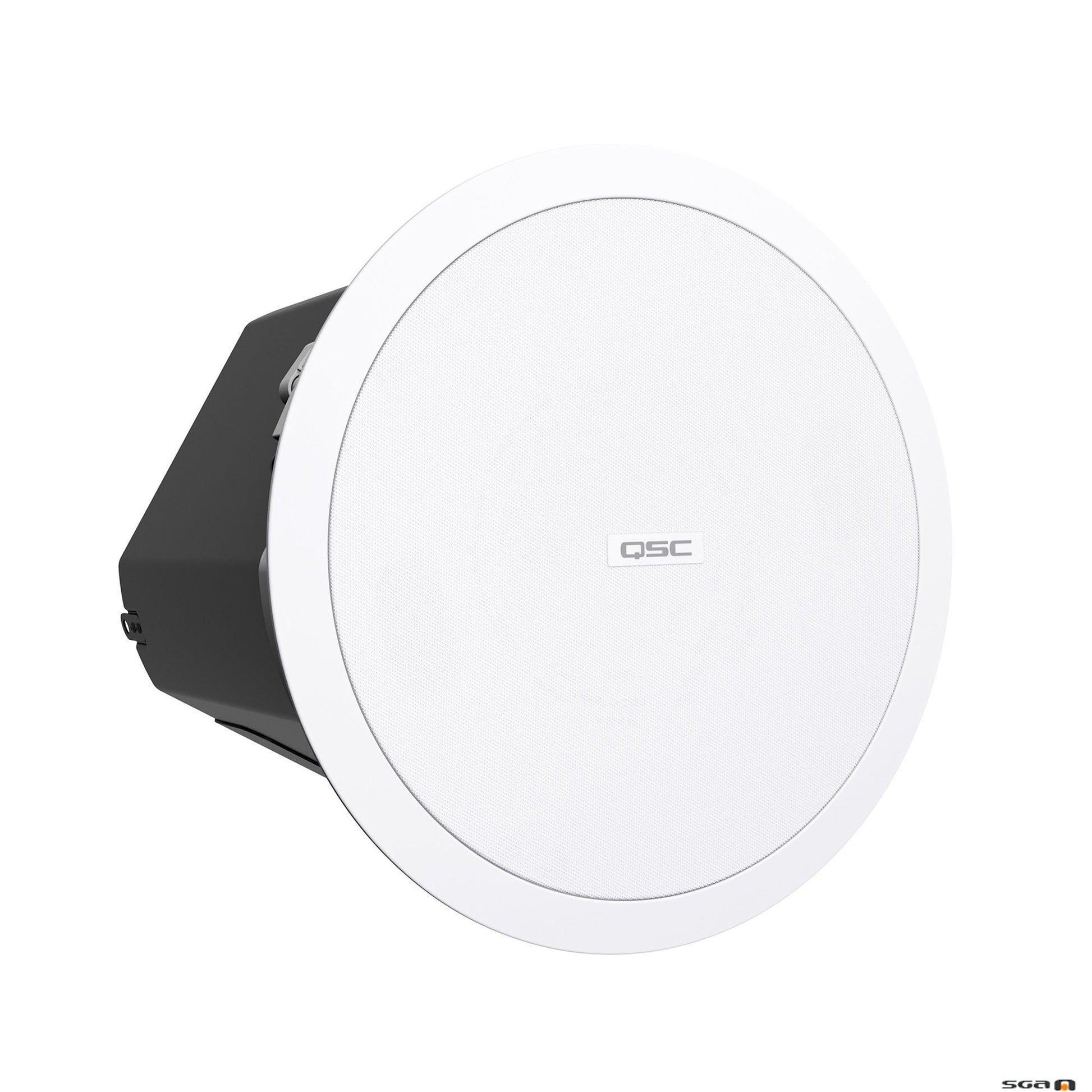

QSC AD-C6T

QSC AD-C6T 6.5″ 2-way Ceiling speaker 70/100V/16? 135? coverage. Black or White (Pairs)

In Stock

Description

The QSC AD-C6T is a 6.5″ two-way ceiling loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16? bypass configurations. The AcousticDesign Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant applications, the AcousticDesign series allows integrators seamless transitions within blended installations. DMT (Directivity Matched Transition) is QSC’s design philosophy where the high frequency waveguide is matched to the natural conical behavior of the woofer at the crossover point. The result is a coherent transition between transducers with improved off-axis power response for consistent 135? conical DMT coverage.

SOLD IN PAIRS

Features

Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
Directivity Matched Transition^® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
Snap-fit magnetic grille
3x double stepped, long travel dog-ear blind mount system
Advanced Intrinsic Correction™ voicings available via Q-SYS™ Ecosystem and CXD processing amplifiers
Low-saturation and low-loss 70/100V transformers with 16Ω bypass
Blemish-free removable logo
Removable conduit cover plate, also available as accessory for pre-install wiring
UL1480 and UL2043 certified EN54-24 Type A
Available in black (RAL 9011) or white (RAL 9010)
Complete EASE, CF2, CAD, & BIM information available online

Specifications

SPECIFICATIONS	AD-C6T
Effective frequency range¹	65 Hz – 20 kHz
Rated noise power / voltage²	60 watts / 31 volts (rms)
Sensitivity [dB]³ Sensitivity at 4m, 100V maximum tap	88 TBD
Rated coverage (-6 dB)⁴	135° conical DMT™
Directivity factor (Q)	6.5
Directivity index (DI) [dB]	8
Maximum continuous SPL [dB]⁵	106
Maximum peak SPL [dB]⁵	112
Nominal impedance [ohms]	16
Recommended amplifier	120 watts
Transformer taps / impedance	16Ω (in bypass setting) 7.5W (70V); 15W (100V) Tap: 667Ω 15W (70V); 30W (100V) Tap: 333Ω 30W (70V); 60W (100V) Tap: 167Ω 60W (70V); N/A (100V) Tap: 83Ω
LF transducer	165 mm [6.5-inch] weather resistant paper cone woofer
HF transducer	25 mm [1-inch] aluminum dome tweeter
Input connector type	Euroblock connector with parallel output
Enclosure material	ABS baffle on powder coated steel back can
Grille material	Powder coated steel
Ingress protection	IP-34
Operating environment	Designed for indoor use
Operating temperature range	-20 to 50° C [-4 to 122° F]
Cutout dimension	Ø 245 mm [Ø 9.65-inch]
Net weight	4.3 kg [9.5 lb]
Product dimensions (Diameter x Height)	Ø 280 x 237 mm [Ø 11.02 x 9.32-inch]
Shipping weight	12.6 kg [27.8 lb] (pair packed)
Shipping dimensions (H x W x D)	330 x 737 x 381 mm [13 x 29 x 15-inch] (pair packed)
Included accessories	C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille
Optional accessories	AD-MR6 (pre-install mud ring)
Safety Agency	EN54-24: 2008 type A (No. pending) UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems.

Downloads

q_spk_adc_6t_specsheet
