MiPro AT100a Circularly Polarized Antenna. The AT-100a circularly polarized antenna can effectively reduce the polarization loss of the antenna to improve signal strength. TNC input connectors to connect with a receiver or a transmitter. RX connector has a 0-12dB adjustable booster. Waterproof and weather resistant for outdoor installations. Can either be mounted on a mic stand or wall-mounted with MS-90 bracket. Priced per unit.
Patented in Multiple Countries. Distinctive Appearance

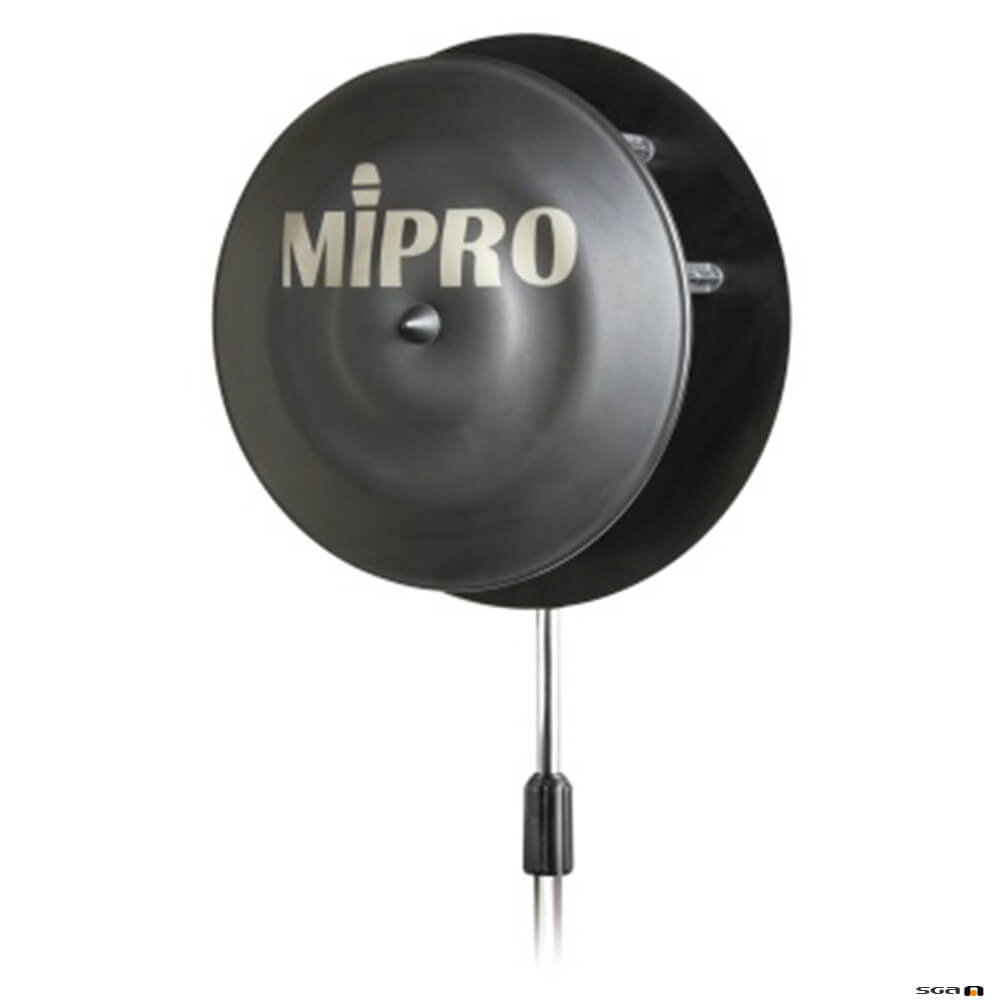

Providing an optimized solution for both transmitting and receiving RF signals throughout the UHF bandwidth, the AT-100a has a distinctive appearance and is patented in multiple countries.

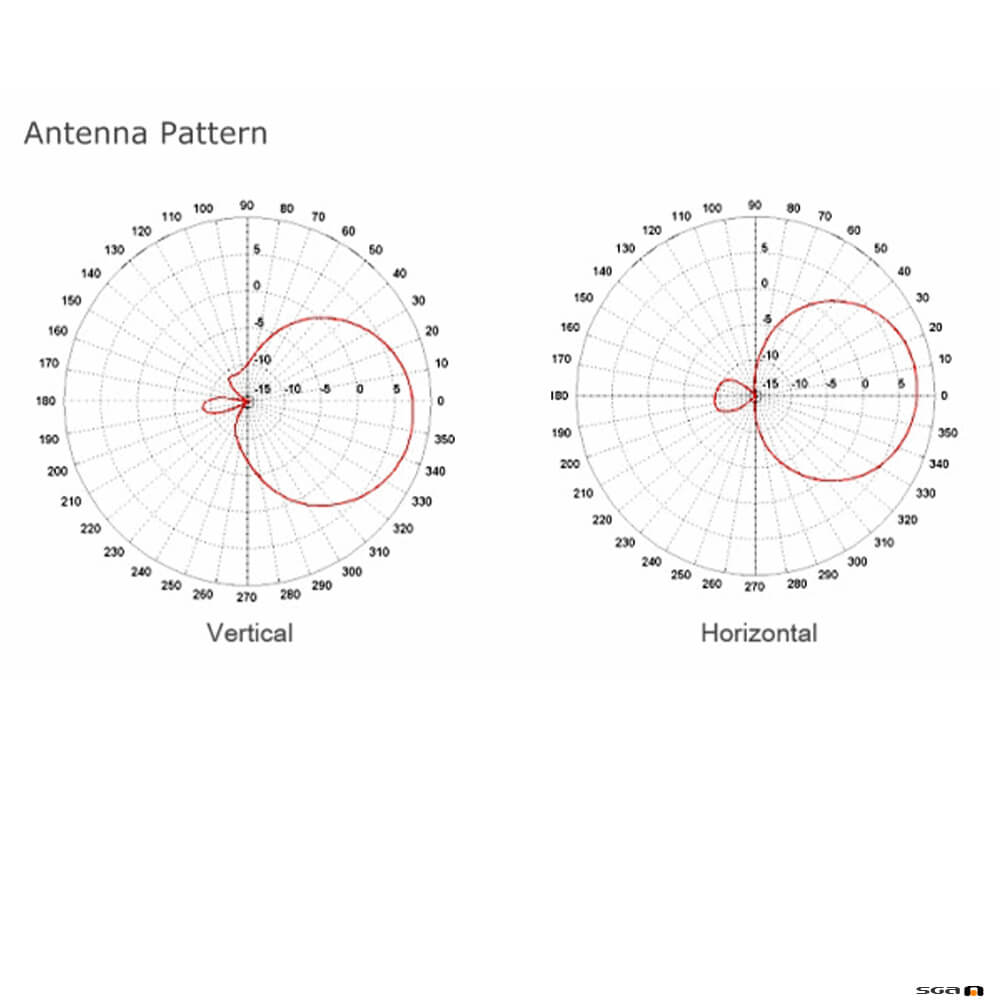

The front area is the main focus of antenna direction for either vertical or horizontal polarization. The AT-100a circularly polarized antenna can effectively reduce the polarization loss of the antenna to improve signal strength. It is the optimum solution for the 470 ~ 1,000 MHz bandwidth with 6 ~ 8 dBi antenna gain and is certified to meet the latest CE/FCC new telecom regulations.
The AT-100a is an ideal antenna system for utmost signal stability. Antenna features affect transmission range, stability and anti-interference performance. Therefore, the antenna is a vital component in any system installation, especially in complicated and demanding RF environments for wireless microphones and wireless monitoring systems. It greatly improves signal stability and reduces interference and signal drop-outs caused by polarization problems.

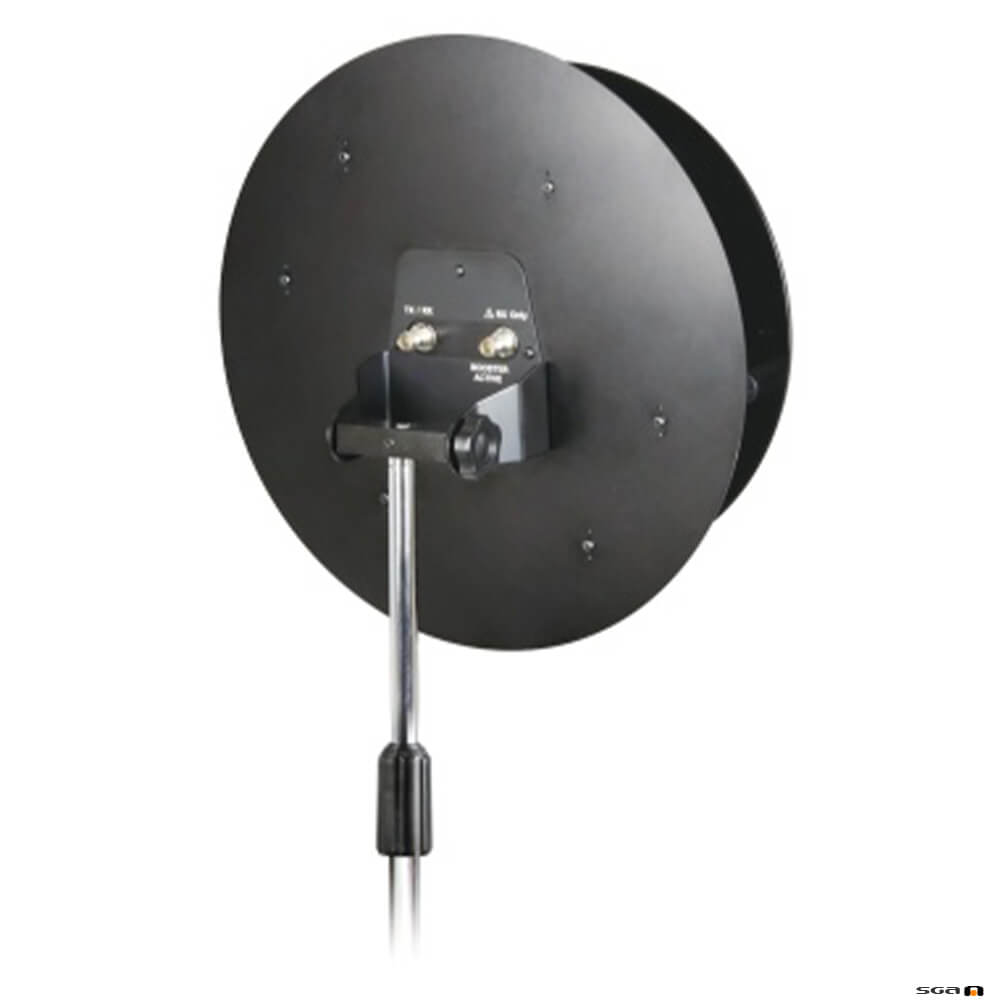

The AT-100a has two built-in signal connectors: “TX/RX” connector can be connected to a transmitter or receiver, however, connection to a short coaxial cable is recommended when connected to a receiver. “RX” connector (cannot be connected to a transmitter) has a built-in 0 ~ 12 ± 1 dB gain adjustable booster and thus provides extended reception range and compensates the signal loss of coaxial cable to improve reception range and signal quality. The power of gain controllable booster can be provided by a MIPRO AD-708 antenna divider or any MIPRO ACT Series receivers which provides bias by adding an adjustor on their antenna connectors.
Waterproof and weather resistant, the AT-100a is ideal for both outdoor and indoor applications.
