Mipro ACT727

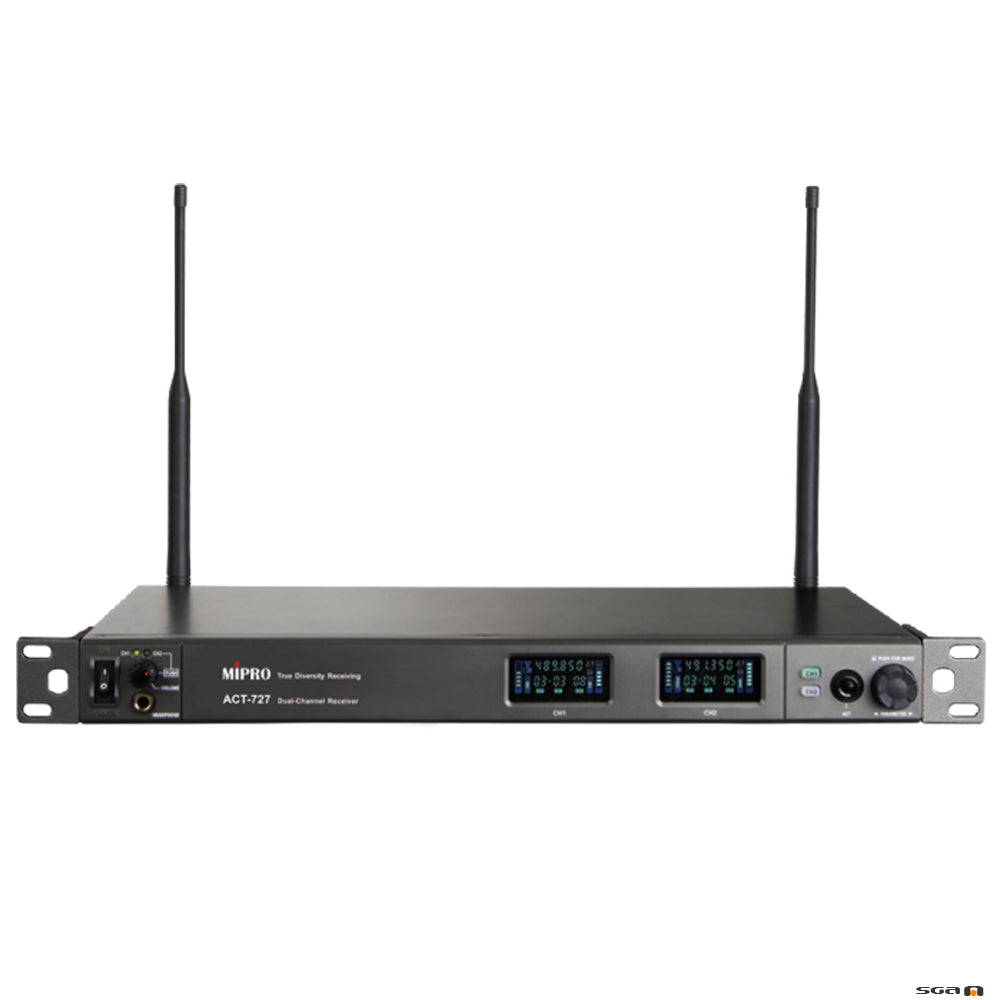

Mipro ACT727 Dual-Channel UHF wideband receiver with 72MHz bandwidth.

$1,076.00

In Stock

"Bundle With"

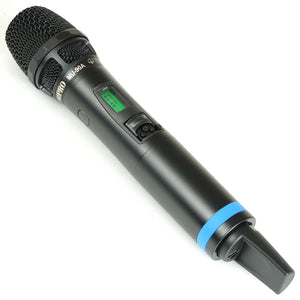

Mipro ACT700H

Mipro ACT700H Rechargeable Wideband Handheld Transmitter, 6UA frequency.

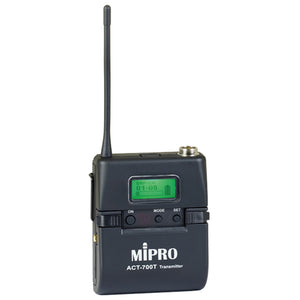

Mipro ACT700T

Mipro ACT700T Wideband Rechargeable Transmitter, 6UA frequency.

Category: Tag:

Description

Mipro ACT727 Dual-Channel UHF wideband receiver with 72MHz bandwidth i8n a 1RU chassis. 7 preset groups with a total of 224 pre-saved frequencies over an impressive 72MHz of spectrum. Detachable antenna, XLR outputs per channel, plus a mixed XLR out. The ACT727 features Auto Scan and ACT for one-button frequency sync to transmitters. Control and monitor up to 64 receiver channels via optional MIPRO-DVU USB dongle and software. 6UA frequency band (626MHz-694MHz).

Features

  • EIA standard 1U metal chassis equipped with a newly designed VFD screen, monitor headphone jack, a rotary control knob and buttons, and optional Dante network interface on the rear panel. The VFD screen has automatic bright or dim displays to identify “Working” and “Standby” mode. Operation and display mode is consistent with other series.
  • Designed with MIPRO’s most reliable 72 MHz wideband high dynamic RF receiving circuit.
  • Advanced true diversity receiving circuit ensures long-distance and stable reception without signal dropout.
  • Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
  • MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
  • There are 7 preset groups with a total of 224 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 2,881 available frequencies.
  • Each channel has separate audio output and 3 switchable levels, and the preset output level equals to the sensitivity of the microphone capsule at 0 dB. All is to ensure the microphone to operate within proper sensitivity and dynamic range, free from distortion
  • The antenna TNC female connectors provide bias for the MIPRO antenna systems to increase the receiving range and improve the signal stability.
  • Optional Dante digital network interface. Optional MIPRO RCS2.Net software connects to MIPRO DVU drive connector and allows real-time network remote-controlling and monitoring up to 64 channels. Additional new FSA software connects to MIPRO DVU drive connector and allows users to calculate interference-free compatible channels and link to the network.
  • External 100~240V AC switching power supply ensures system stability underneath voltage change.
  • Pair with ACT-70H / ACT70HC handheld or ACT-70T / ACT70TC bodypack transmitter (optional).
  • Designed and made in Taiwan ensures high quality and value.

Specifications

Name Dual-Channel Wideband Receiver
Chassis EIA-Standard 19″ 1U metal chassis
Monitor Output Monitor headphone jack with volume control
Network Interface Dante (optional)
Display A newly designed color VFD
Frequency Range 6UA Band –  UHF 626MHz ~ 694MHz (Australia)
Bandwidth 72 MHz
Receiving Mode True diversity receiving
Sensitivity 6 dBμV @ S/N > 80 dB
Frequency Response 50 Hz ~ 18 kHz
Dynamic Range > 110 dBA
Audio Output Balanced: +16dB / 0dB / -6dB, Unbalanced: +10dB / 0dB / -6dB
PC Interface USB interface. MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (Sold separately)
Antenna Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.
Power Supply External 100~240V AC switching power supply
Dimensions 420 × 44 × 219 mm (W×H×D)
Weight Approx. 2.1 kg
Note Refer to the actual product in the event of product discrepancy.

Downloads

Mipro_ACTt727_data_sheet

You may also like…

  • Sale! Mipro ACT700T Bodypack Transmitter

    Mipro ACT700T

    Mipro ACT700T Wideband Rechargeable Transmitter, 6UA frequency.

    (0 reviews)
    Original price was: $637.00.Current price is: $517.00. ADD TO CART

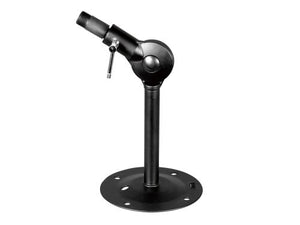

  • Sale! Mipro MS90 Wall Mount Bracket to suit Mipro Antenna
