Bosch PLN-6CS

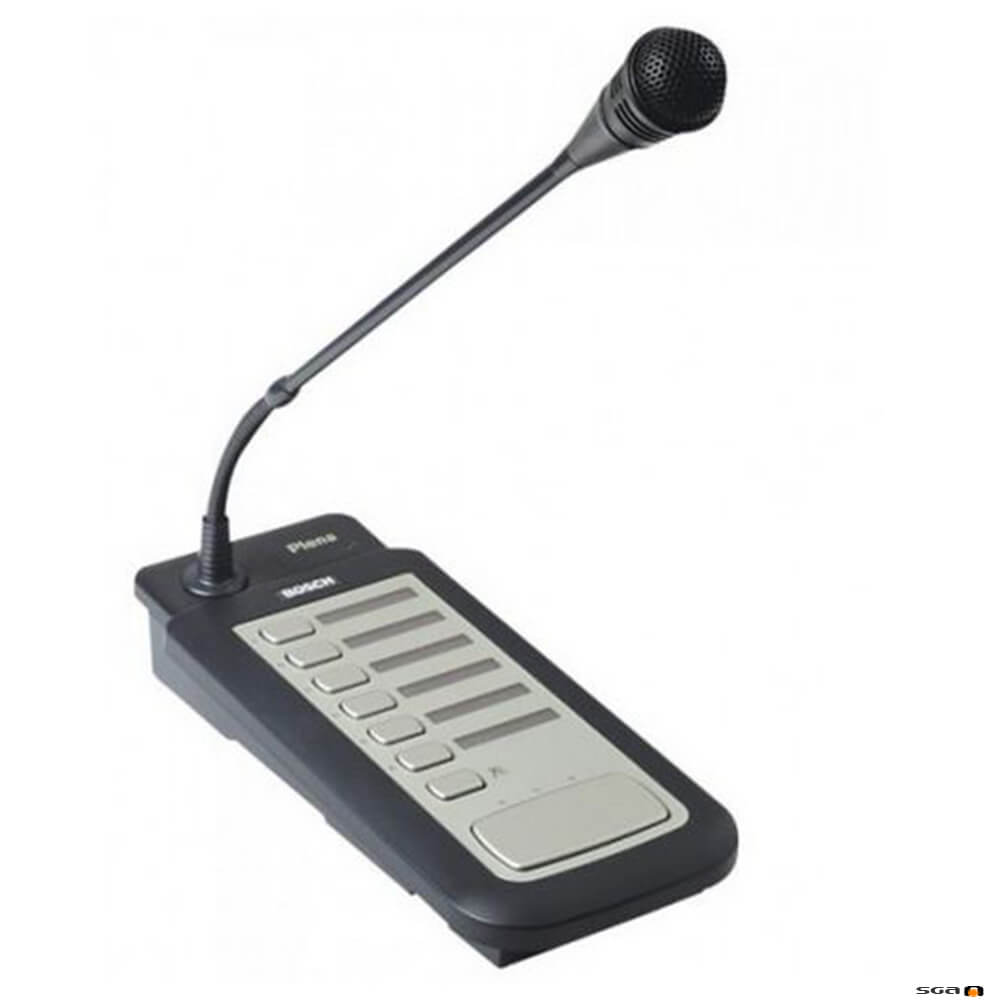

Bosch Six-Zone Call Station for All-In-One System. Simple selection of up to six zones

Original price was: $431.20.Current price is: $402.00.

In Stock
SKU: PLN-6CS Categories: , Tag:

Description

Bosch Bosch PLN-6CS Plena 6 zone paging mic with flexible microphone stem for use with Bosch PLN-6AIO240 all-in-one BGM system.

The Bosch PLE-6CS paging microphone,? 6 zone is a high-quality call station with a sturdy metal base designed for use with the PLN-6AIO240 all in one background music system.

In addition to tabletop use, the special design of the PLE6CS enables the unit to be neatly flush-mounted.

Up to six Call Stations can be connected in a loop?through arrangement to the same All?in?One Unit, with configurable priority. Connection is via RJ45 terminated Cat-5 cable and a concealed rotary control at the base attenuates the output level.

6 zone selection keys enable any combination of zones to be selected for paging – indicated by LEDs.

  • Stylish, high?quality six?zone Call?Station for the Plena All?in?One?System
  • Six?zone selection keys with LED indicators, and an ?all?call? key
  • Momentary Press To Talk (PTT) key
  • Configurable gain, speech filter, limiter, and output level for improved intelligibility
  • Configurable attention chime

Features

  • Stylish, high‑quality six‑zone Call Station for the Plena All‑in‑One System
  • Six‑zone selection keys with LED indicators, and an ‘all‑call’ key
  • Momentary Press To Talk (PTT) key
  • Configurable gain, speech filter, limiter, and output level for improved intelligibility
  • Configurable attention chime

Specification

Voltage 24 Vdc(24 Vdc supplied by PLN‑6AIO240)
Current consumption <50 mA
Nominal acoustic sensitivity 85 dB SPL @ 1 kHz (gain preset 0 dB)
Nominal output level 1 V
Input sound level (max.) 110 dB SPL
Limiter threshold 1 V
Compression ratio limiter 1:20
Distortion <2% (maximum input)
Input noise level (equiv.) 25 dBA SPL
Frequency response 100 Hz to 14 kHz +/-6 dB
Speech filter -3dB @ 315 Hz, high-pass, 6 dB/oct
Output impedance 200 ohm
Chimes 1-, 2- or 4-tone chime selected on Call Station
Base dimensions (H x W x D) 55 x 108 x 240 mm(1.57 x 3.97 x 9.25 in)
Weight Approx. 0.5 kg (1.1 lb)
Mounting Tabletop
Color Charcoal with silver
Stem length with microphone 390 mm (15.35 in)
Connection 2 x RJ45, Cat‑5, max. length 600 m
Operating temperature -10ºC to +45ºC (14ºF to +113ºF)

Downloads

Bosch-PLN-6CS_data_sheet
