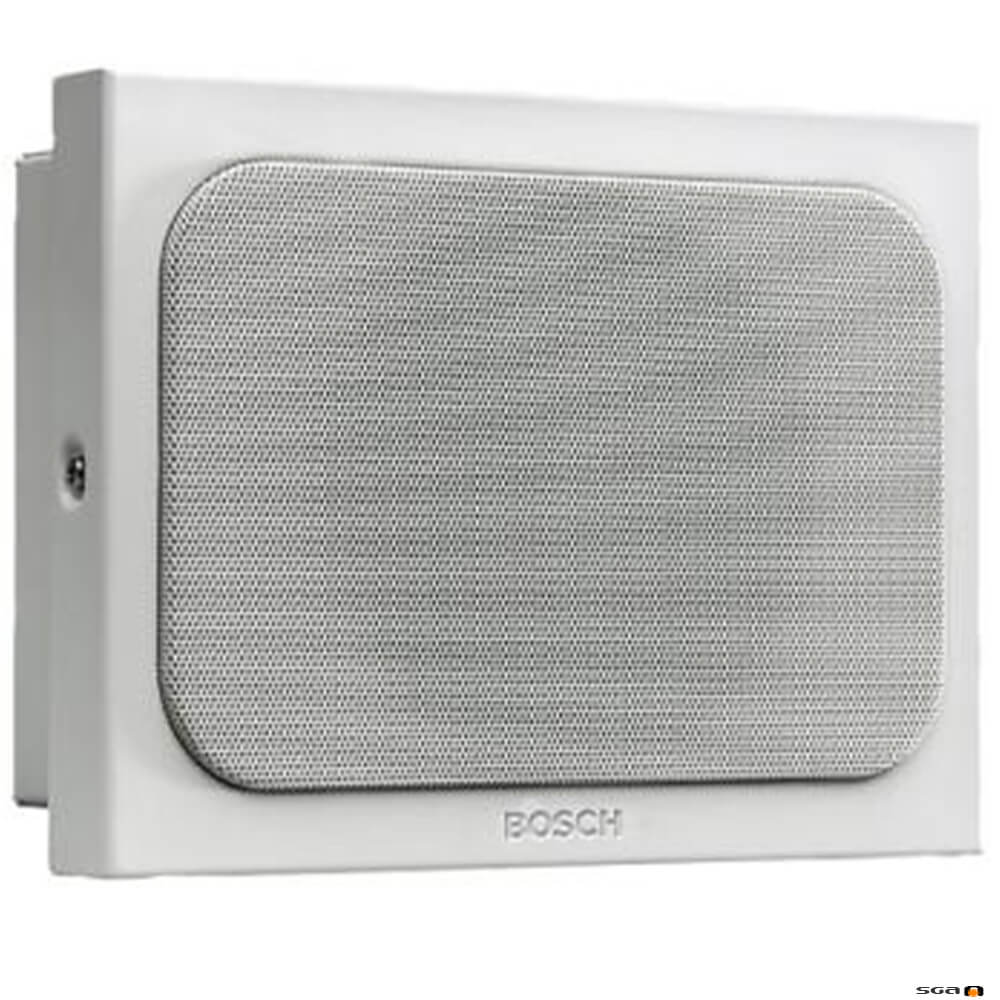

Bosch LBC 3018/01

Bosch LBC 3018/00 Vandal Resistant Loudspeaker. Robust metal enclosure, can be surface mounted or recessed. 100V

Original price was: $180.40.Current price is: $169.00.

In Stock
SKU: LBC 3018/01 Category: Tag:

Description

Bosch LBC 3018/00 Vandal Resistant Loudspeaker. Robust metal enclosure, can be surface mounted or recessed. 100V tappings of 6, 3, 1.5, 0.75W. Designed for indoor use and suitable for both speech and music. 195H x 260W x 80D (mm).

The Bosch LBC 3018/00 cabinet loudspeaker delivers professional performance from a robust, yet aesthetically designed metal enclosure. It is an ideal loudspeaker for indoor use in offices, schools, car parking, shopping centers and in areas where vandalism is a potential hazard.

Voice alarm loudspeakers are specifically designed for use in buildings, where the performance of PA-systems is subject to official regulations. The LBC 3018/00 is designed for voice alarm systems, and is compliant with British Standard BS 5839-8. The loudspeaker has built-in protection to ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected. In this way, system integrity is maintained, ensuring loudspeakers in other areas can still be used to inform people of the situation. The loudspeaker has a ceramic terminal block, thermal fuse, and heat resistant, high-temperature wiring. The cabinets are equipped with a high efficiency, dual cone loudspeaker offering a wide frequency range suitable for both speech and music reproduction.

Features

  • Suitable for speech and music reproduction
  • Robust metal enclosure
  • Surface and/or recessed mounting
  • Unobtrusive in virtually all interiors
  • Recommended for voice evacuation systems

Specification

Maximum power 9 W
Rated power 6 W ( 6 / 3 / 1.5 / 0.75 W)
Sound pressure level at 6 W / 1 W (1 kHz, 1 m) 102 / 94 dB (SPL)
Effective frequency range (-10 dB) 150 Hz to 20 kHz
Opening angle 1 kHz / 4 kHz (-6 dB) 120° / 55°
Rated input voltage 70/100 V
Rated impedance 835 / 1667 ohm
Connector 3-pole screw terminal block
Dimensions (H x W x D): 195 x 260 x 80 mm / (7.68 x 10.24 x 3.15 in)
Weight 2.6 kg (5.78 lb)
Colour White ( RAL 9010)
Speaker size 152.4 mm (6 in)
Operating temperature -25 ºC to +55ºC (-13 ºF to +131 ºF)
Storage temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity <95%

Downloads

Bosch_LBC3018_00_data_sheet
