Bosch LB2-UC15-D1

Bosch LB2-UC15-D1 2 way music cabinet speakers, 4″ woofer & 0.5″ HF. 15W 100V line.

$137.50 $128.00

In Stock



SKU: LB2-UC15-D1 Category: Tag:

Description

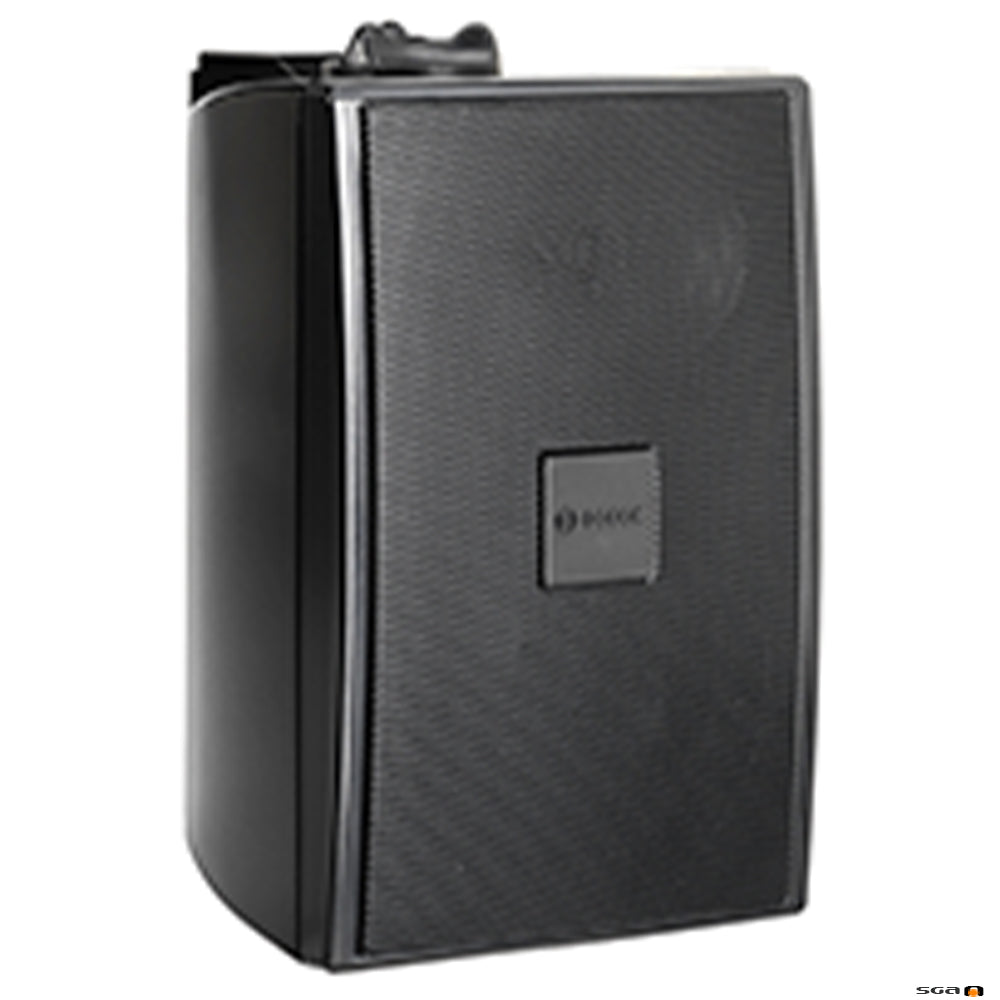

Bosch LB2-UC15-D1 (Black) & Bosch LB2-UC15-L1 (White) are a 2 way music cabinet speakers, 4″ woofer & 0.5″ HF. 15W 100V line (22.5W at 8 Ohms) taps at 15, 7.5,3.75 & 1.9 Watts, ABS cabinet, weather resistant to IP65, aluminium grille and bracket, c/w U-mount bracket.

The Bosch LB2-UC15-D1 & LB2-UC15-L1 are a premium quality cabinet loudspeaker and are ideal for clear reproduction of speech, foreground and background music in general indoor and outdoor applications.

Selectable 8 ohm, 70 V and 100 V inputs can be found on the rear of the LB2UC15 for complete flexibility.



Features

  • High-fidelity music and speech reproduction
  • Selectable 8 ohm, 70 V and 100 V inputs
  • Compact yet robust ABS enclosure
  • Supplied with adjustable mounting bracket
  • Water resistant. IP65 rated.

Specification

Maximum power 22.5 W
Rated power 15 W  (15 / 7.5 / 3.75 / 1.9 W)
Sound pressure level at 15 W / 1 W (1 kHz, 1 m) 98 / 86 dB (SPL)
Effective frequency range (-10 dB) 95 Hz to 19.5 kHz
Opening angle 1 kHz / 4 kHz (-6 dB) 179° / 101° (horizontal) / 168° / 35° (vertical)
Rated input voltage 11/70/100 V
Rated impedance 8 / 326 / 667 ohm
Transducers 101.6 mm (4”) woofer, 13 mm (0.51 “) dome tweeter
Dimensions (H x W x D): 205 x 136 x 117 mm (8.07 x 5.35 x 4.60 in)
Weight 1.9 kg (4.18 lb)
