Australian Monitor WP-BREAKOUT

Breakout Audio and Power to suit WPBT and WPML wall plates


In Stock


The Australian Monitor WP-BREAKOUT is an accessory box to easily provide power and break out the audio from up to two audio wall panels.

24V is provided to the wall panels, and the wall panel balanced audio is converted into unbalanced audio for connection into any audio system.

Multiple Australian Monitor WP-BREAKOUT units can be daisy chained from one power supply for a minimal installation footprint.

Compatible with the WPBT-W, WPBT-B and WPML-W and WPML-B Wall Panels.


  •  Supports the WPBT and WPML Wall Panels
  • Provides 24V power to wall panels
  • Converts wall panel balanced audio to unbalanced audio

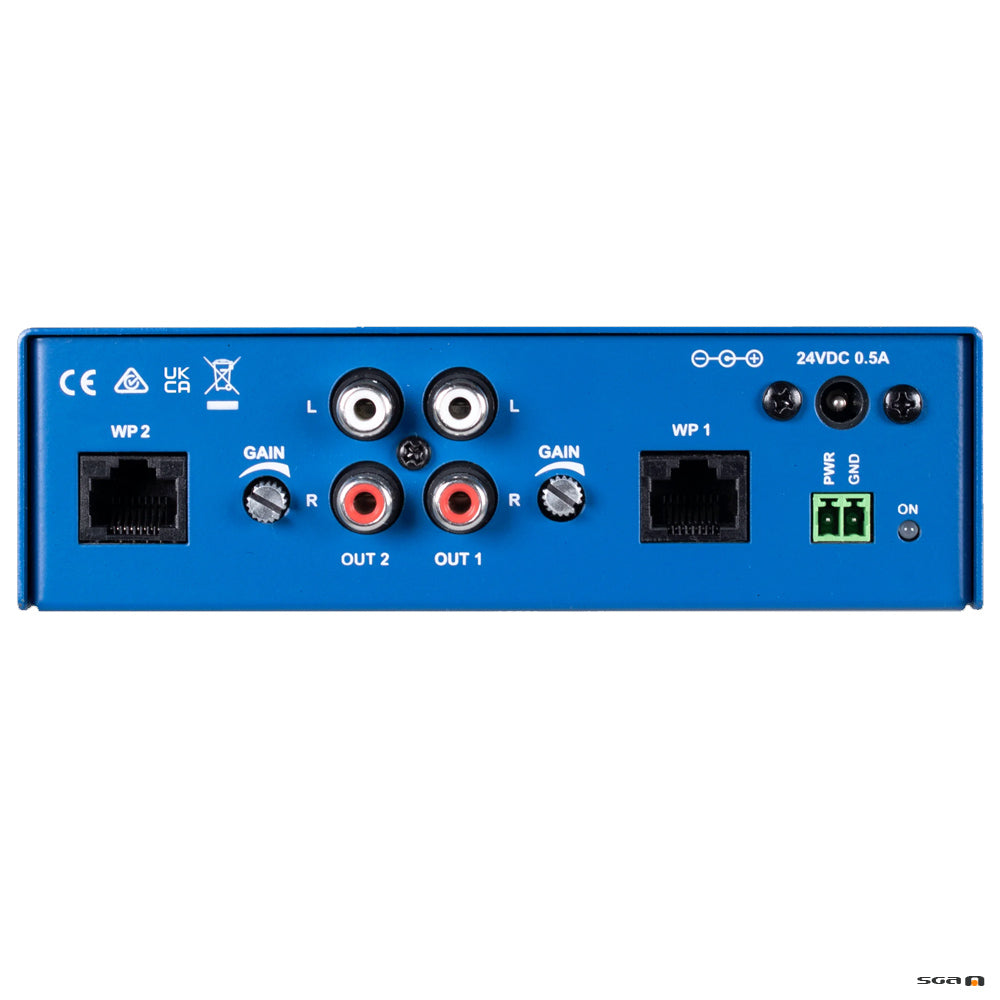

  • Rear panel gain adjustment
  • Supports up to two wall panels
  • Power output to daisy chain up to 15 WP-BREAKOUT units from one power supply


Function Wall Panel Audio and Power Breakout
Input RJ45
Output RCA
Features Level control
PSU Input Voltage 100-240VAC / 50-60Hz
Product Input Voltage 15VDC
Colour Blue
Warranty 5 years
Product Dimensions (WxDxH) 144mm x 124mm x 47mm
Net Weight
Shipping Dimensions (WxDxH) 246mm x 126mm x 62mm
Shipping Weight 0.7 Kg


Australian_Monitor_ WP-BREAKOUT_manual
