Australian Monitor IS4120P

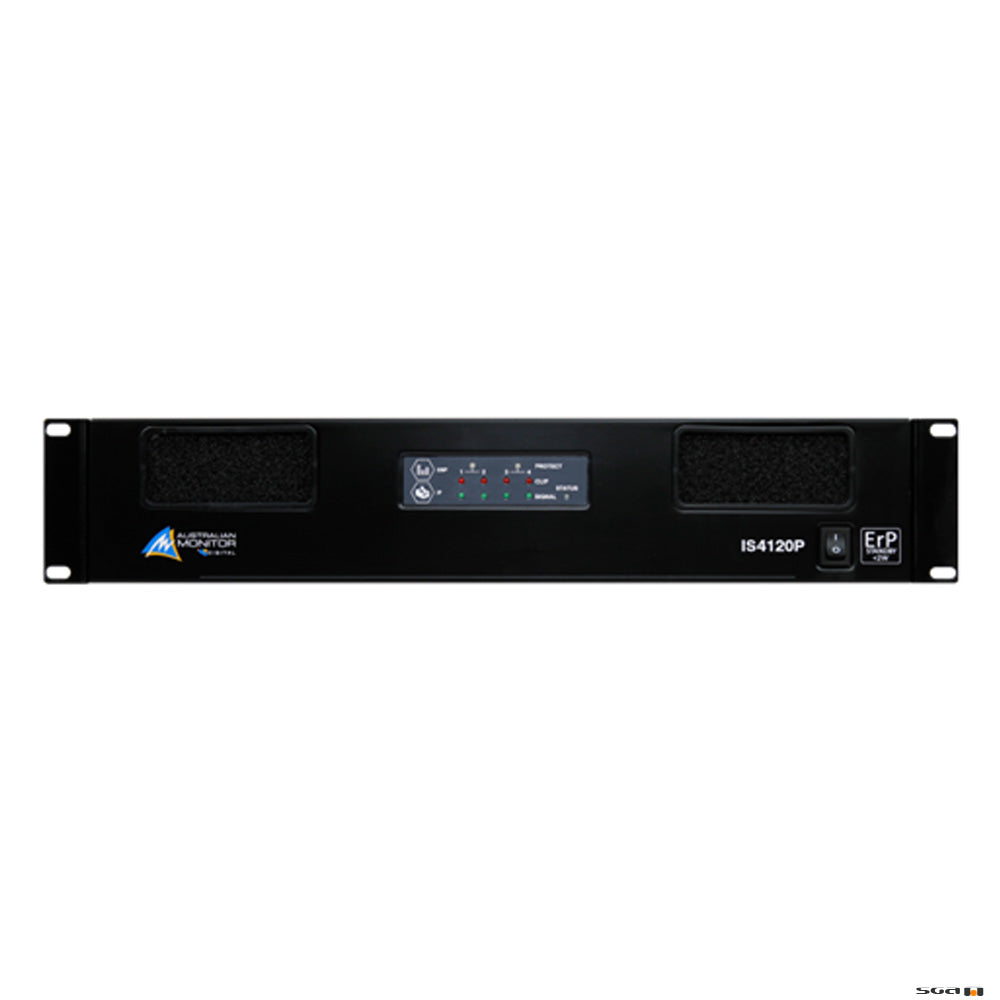

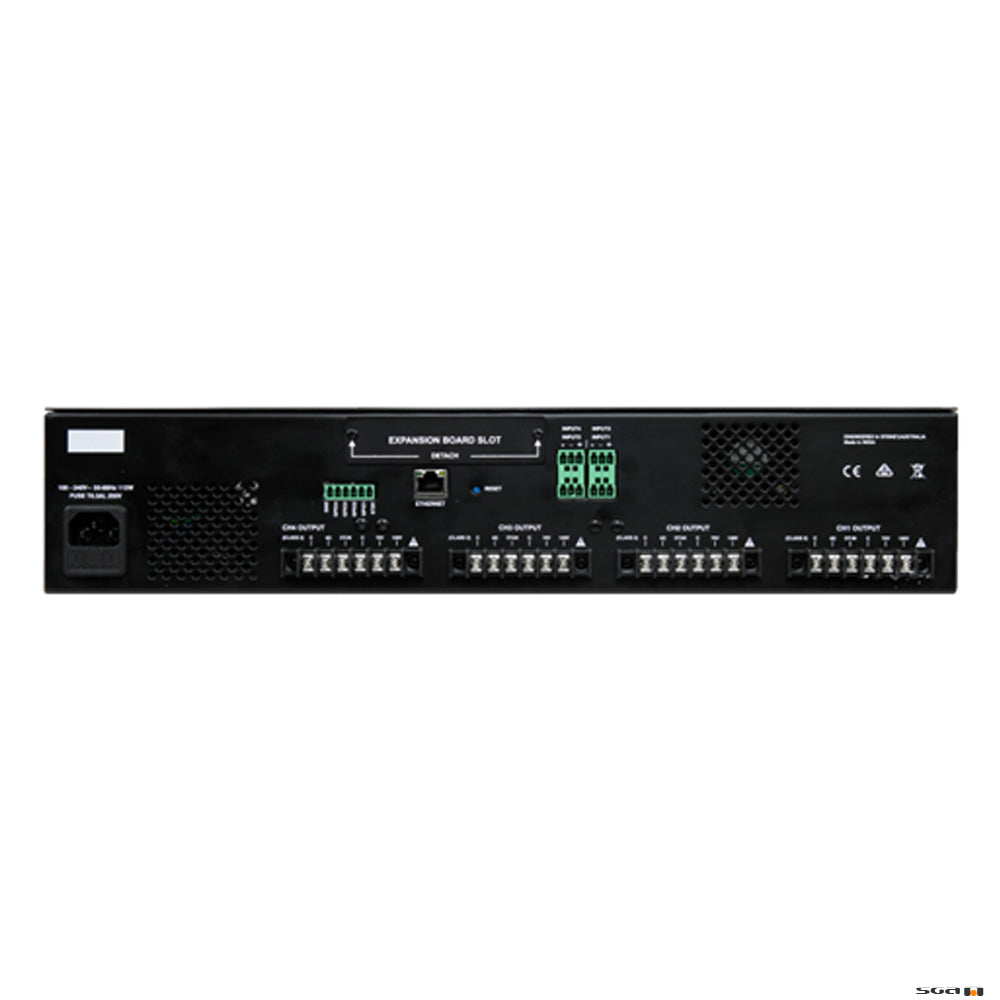

Australian Monitor IS4120P 4 x 120 watt power amplifier with full DSP

$2,159.10

In Stock



Category:

Description

Australian Monitor IS4120P is part of the ISP series multichannel Class D power amplifiers, delivering high quality audio reinforcement in the following options;

Dual channel 120W (IS2120P) or 250W (IS2250P) and
Quad channel 120W (IS4120P) or 250W (IS4250P)

Featuring Ethernet control, Full Featured DSP, ErP Low Power Standby, Dante® support and efficient Class D amplifiers.

The ISP also features ALMA Control Software which allows you to connect, configure and control the product from any device supporting an HTML5 compliant web browser.

Configuration Options:
• Australian Monitor IS4120P – 4 inbuilt line level inputs
• IS4120P + DM4x4 – 4 inbuilt line level inputs plus expansion slot of 4 Dante Inputs and 4 Dante Outputs
• IS4120P + ANALOGUE4 – 4 inbuilt line level inputs plus expansion slot of 4 line level inputs



Features

• 4 x 120W power amplifier
• 4 ohm, 70V and 100V output options
• Class D topology
• Ethernet Control
• Embedded ALMA Control Software accessible using any HTML5 web browser
• Full DSP – Input Matrix, Filters, Parametric Eq, Compressor / limiter, Delay, Mute, Inversion
• 4 software configurable general purposes input/outputs
• ErP(1275/2008/EC) Low Power Standby (<2W)
• 4 Input, 4 Output Dante® support using expansion card DM4x4
• Additional 4 Analogue line inputs using expansion card ANALOGUE4

Specifications

Output Power per Channel 120W Frequency Response 75Hz – 16kHz
Output Channels 4 THD+N < 0.04% (-3dB)
Output Mode 4 Ohm-70V-100V Signal to Noise Ratio > 100dB
Input Voltage 100-240Vac 50-60Hz Input Sensitivity 1Vrms
Mounting 2RU Cooling Fan-assisted
Warranty 5 years
Product Dimensions
(W x D x H)
483mm x 389mm x 89mm Shipping Dimensions
(W x D x H)
546mm x 491mm x 197mm
Net Weight 14.0 Kg Shipping Weight 15.6 Kg
GTIN EAN 932338301999

Downloads

ISP-Series-Brochure
